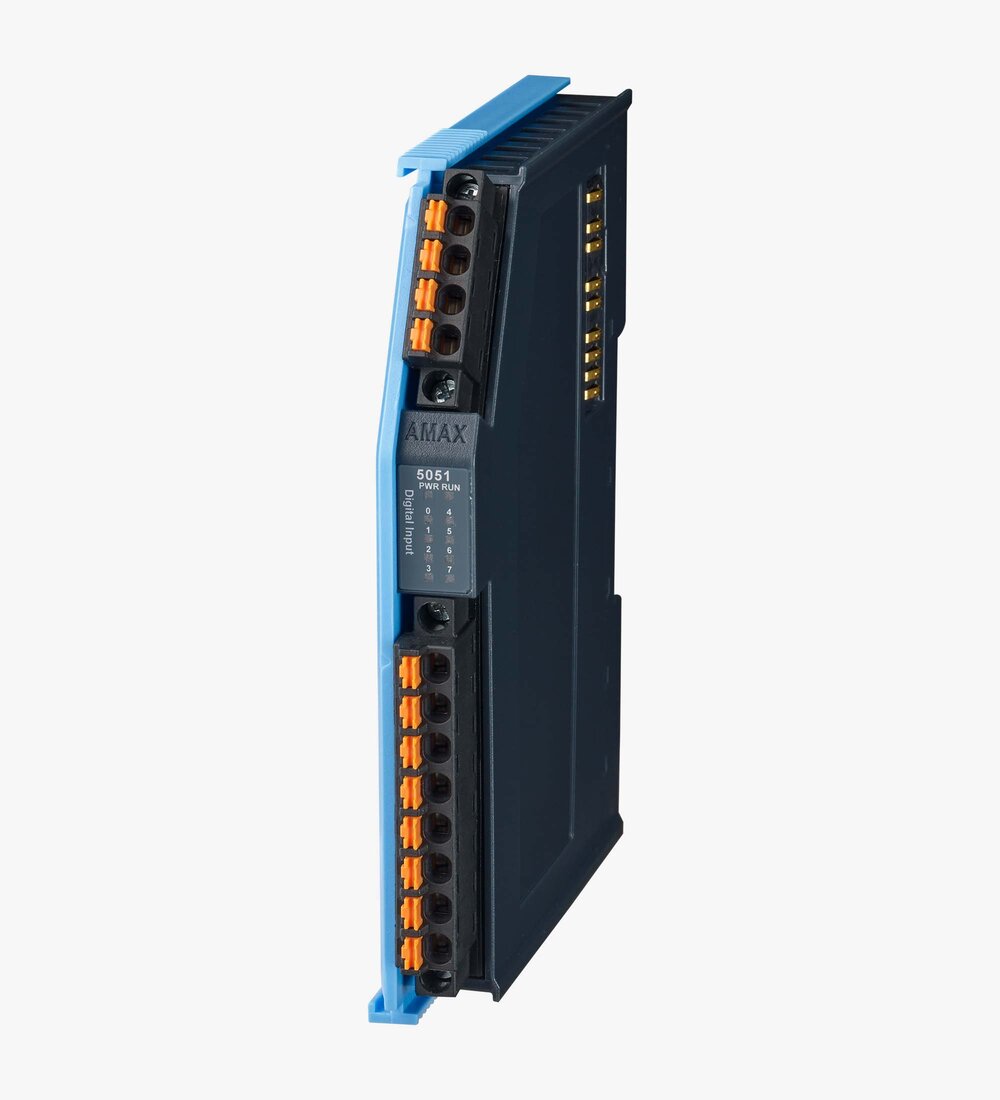

8-Channel Digital Input EtherCAT Slice IO Module

IP20 IO AMAX DI8

8-Channel Digital Input EtherCAT Slice IO Module, 24 VDC, 4 ms

Function

8 channel input, 100Mbps EtherCAT, Removable push-in terminals, 24 VDC, Sink/Source, 4 ms

Features

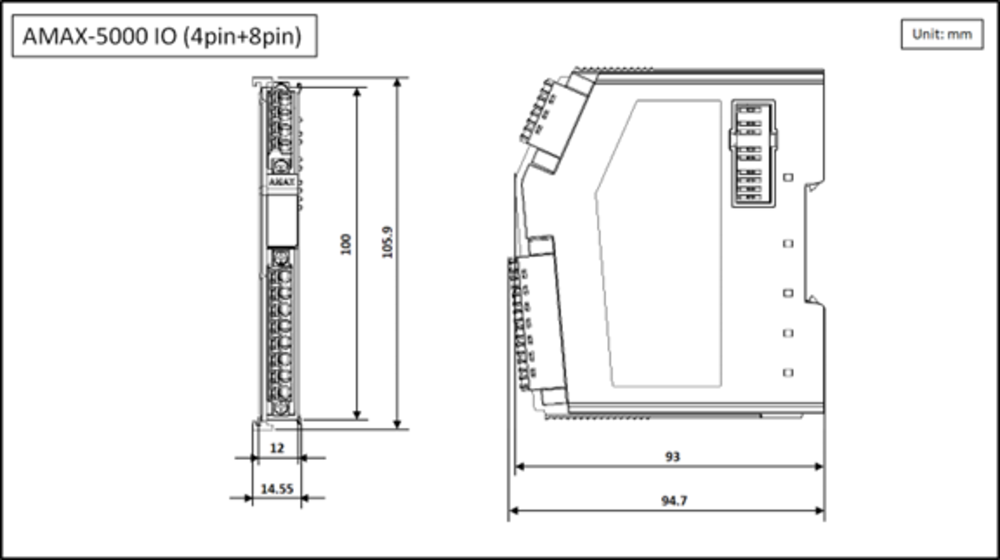

  • Ultra Slim Dimensions
HAVE A QUESTION?
User Manual AMAX-50xx I/O-Modules Download

SKU/Order No.: SA-AMAX-5051-A

CE Declaration Mark

Additional Information

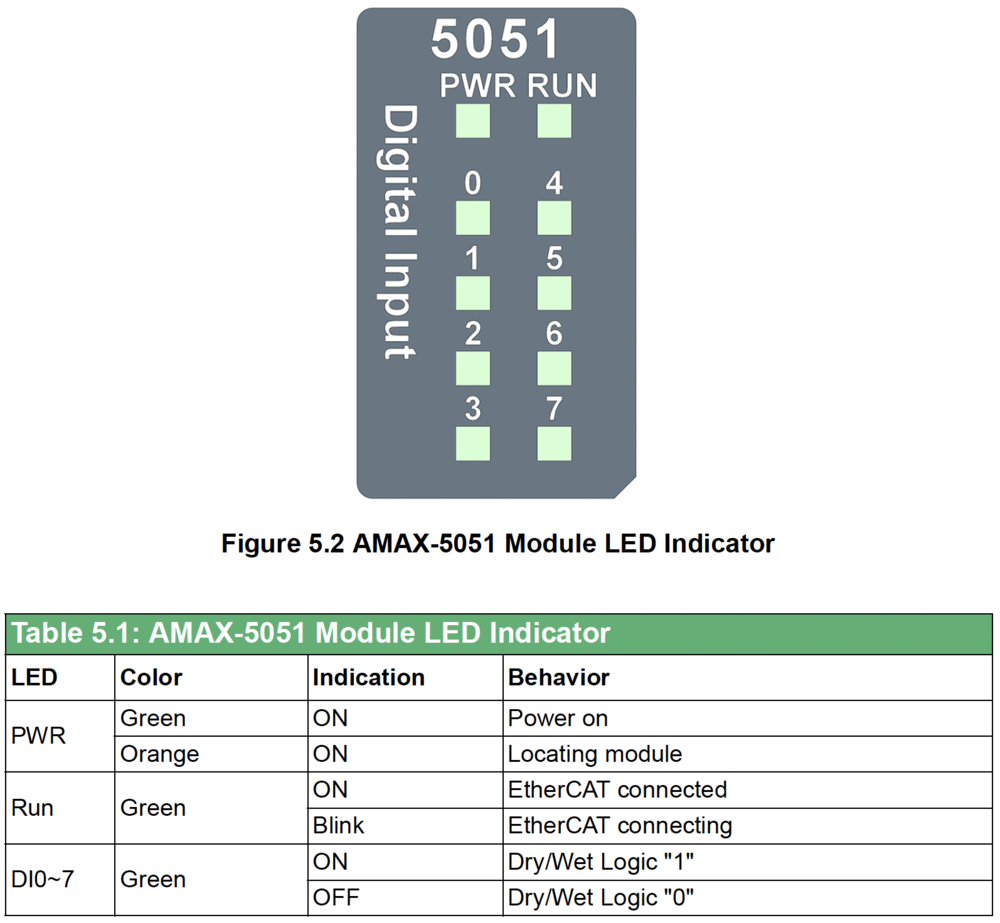

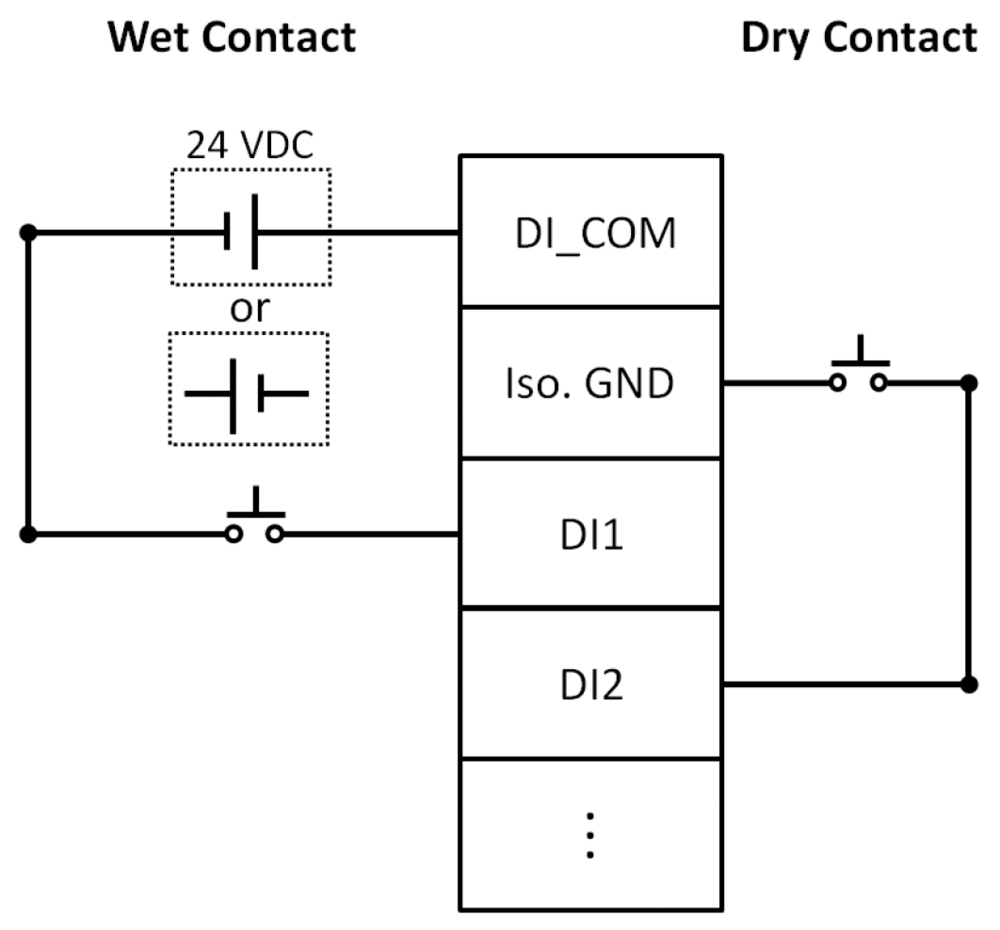

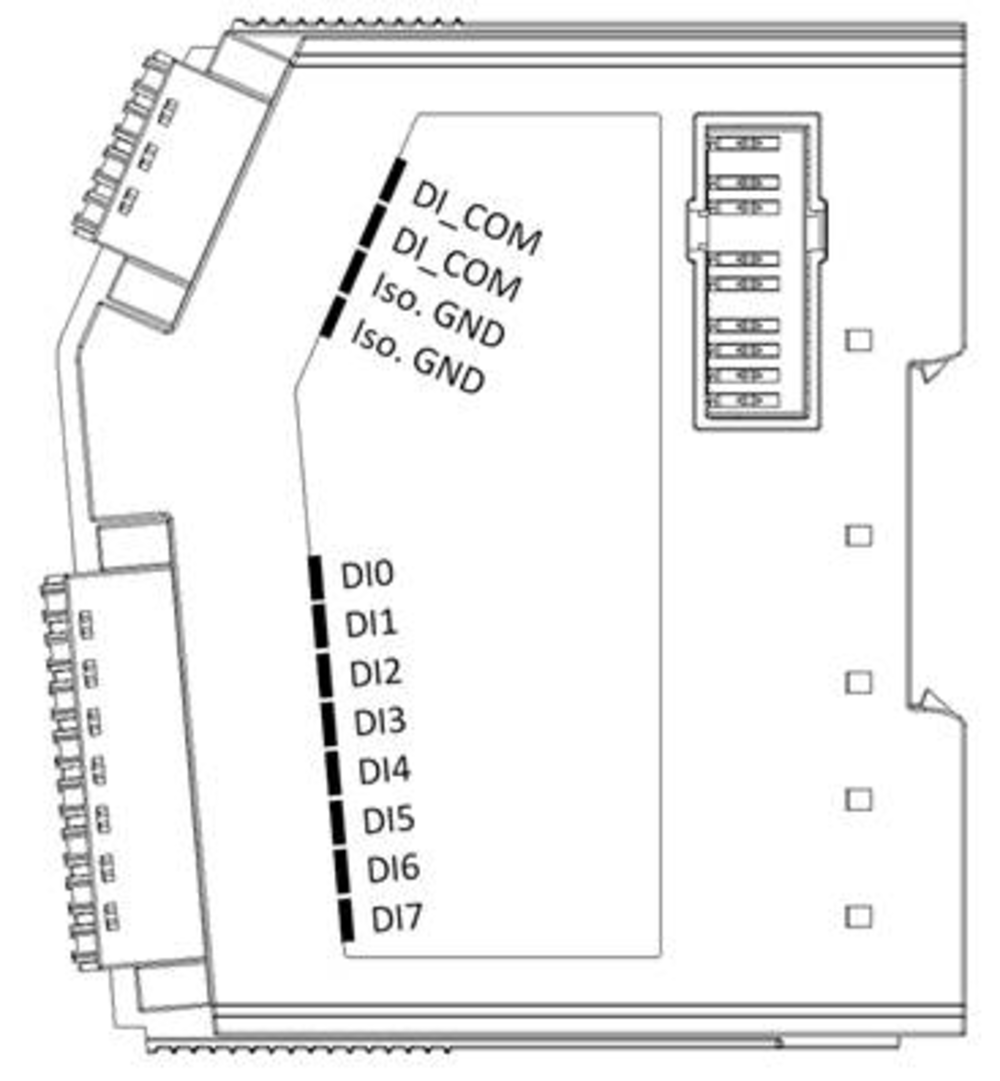

The AMAX-5051 features 8 digital input (sink/source) channels. The digital input channels show LED to indicate digital status. The module provides 2,000 VDC optical isolation between channels. If any high voltage or current damage the channels, the whole system (other modules, and control unit) won't be affected because it is already isolated.
