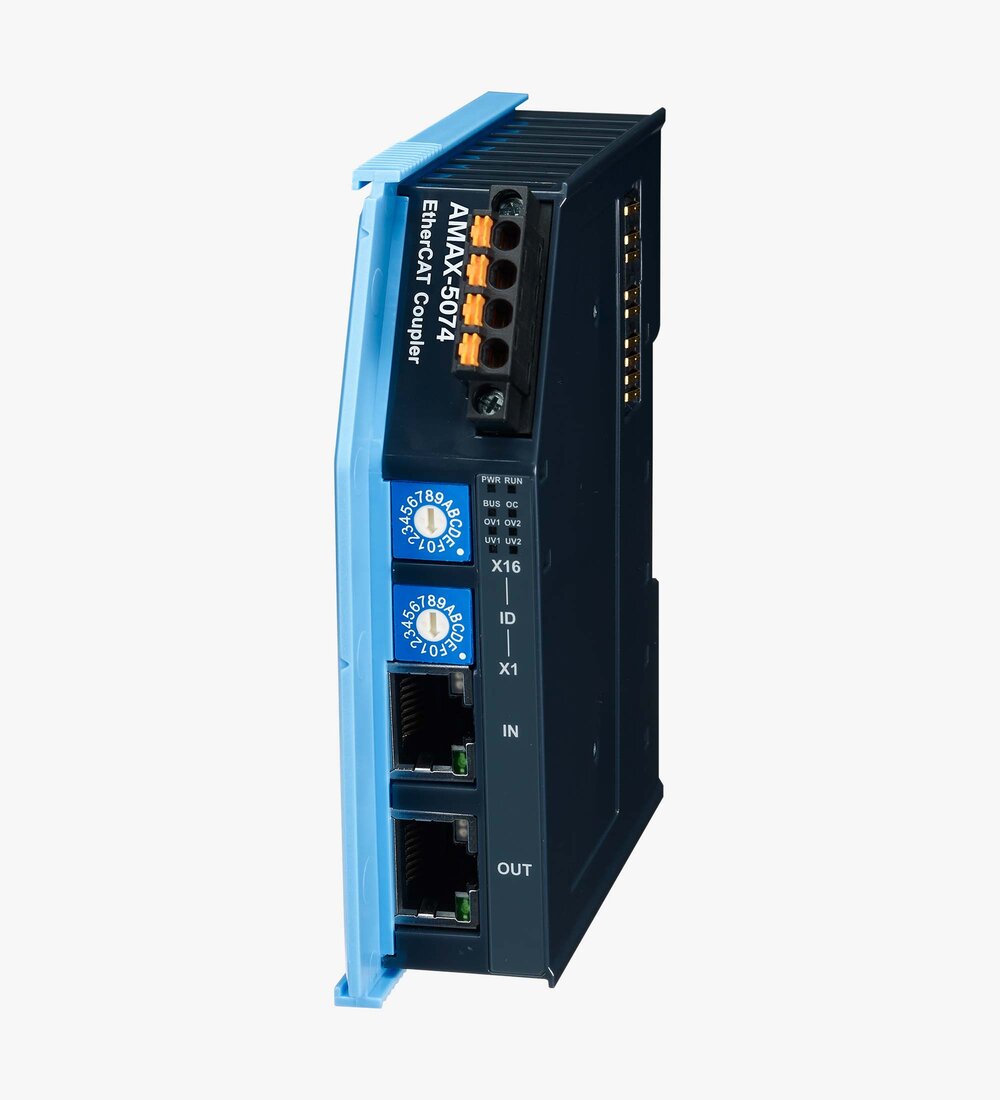

EtherCAT Slice IO Coupler with ID Switch

IP20 IO AMAX EC COUPLER

EtherCAT Slice IO Coupler with ID Switch, 2x RJ45, 2A, 24VDC

Function

Coupling EtherCAT IO modules to 100 BASE TX EtherCAT network, 2 RJ45 (1x Input, 1x Output), 100Mbps EtherCAT, Dual power Input

HAVE A QUESTION?

User Manual AMAX-50xx I/O-Modules Download

SKU/Order No.: SA-AMAX-5074

Additional Information

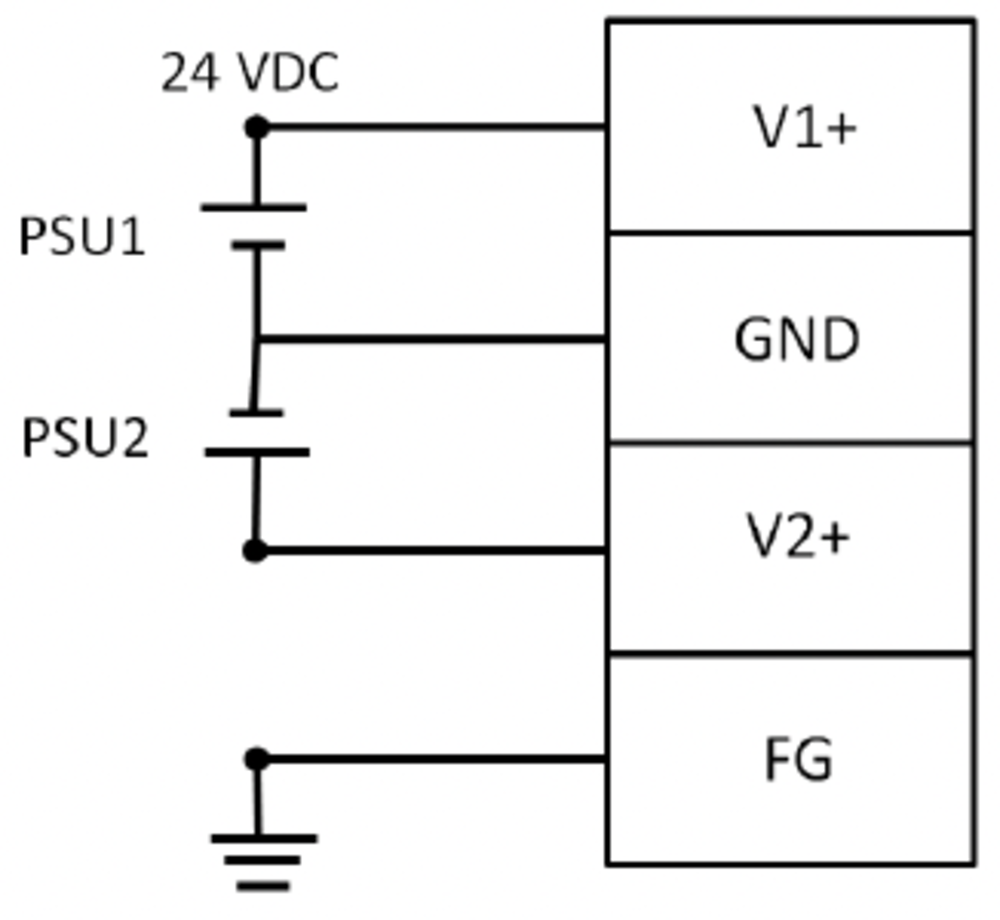

The AMAX-5074 is an EtherCAT coupler that connects remote EtherCAT slave IO modules to the EtherCAT through RJ-45 LAN port, it supports three main topologies: Ring, line, and star. It is also the power input module supporting 24 VDC dual input for maximum 2A current, providing power to the modules which are connected next to the AMAX-5074.

Input Data

Coupler Extension

Interface

Mechanical Data

Dimensions

Certification

Ambient Condition

Communication

Input Data back to top

Input Voltage Range DC	24 VDC ± 20%
Input Peak Current	2 A (Max. Current on Bus)
Diagnosis Function	Over (30 V) / Under (10.7 V) voltage for input 1&2, Over current (2 A) output on bus
Power Consumption (max.)	2.5 W @ 24 VDC

Coupler Extension back to top

Cable	Ethernet / EtherCAT cable (min. Cat. 5), shielded
Distance between stations	Max. 100 m (100-BASE-TX)

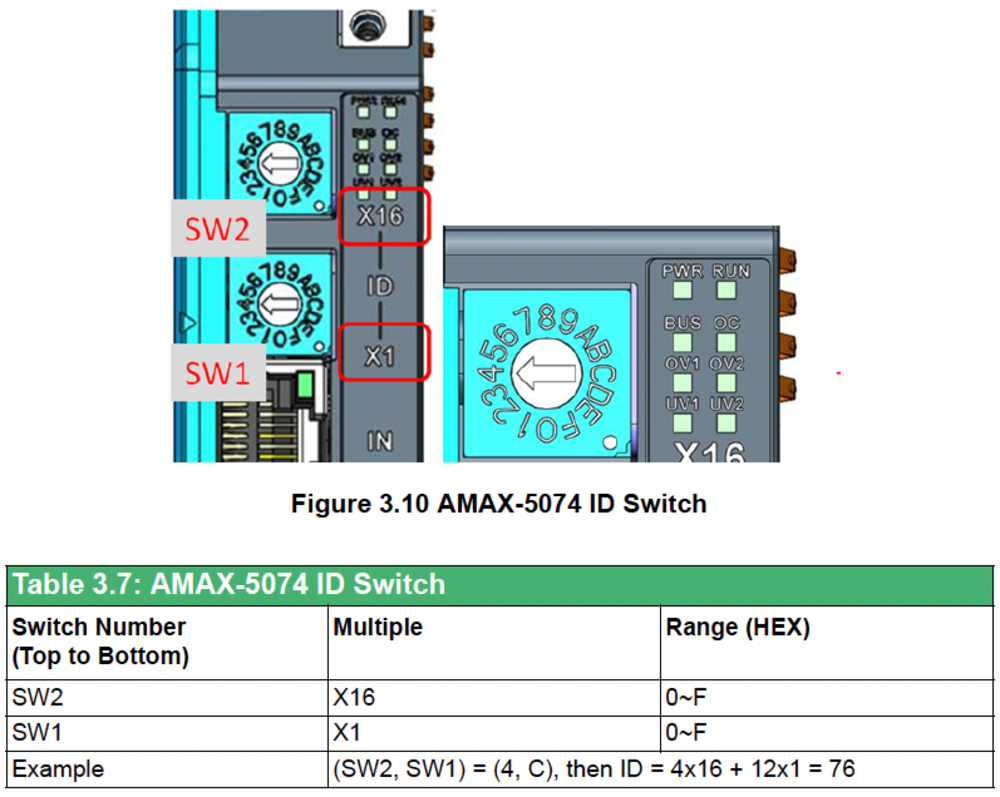

Number of Configurable IDs	256 (2 x 16-bit ID switch)

Interface back to top

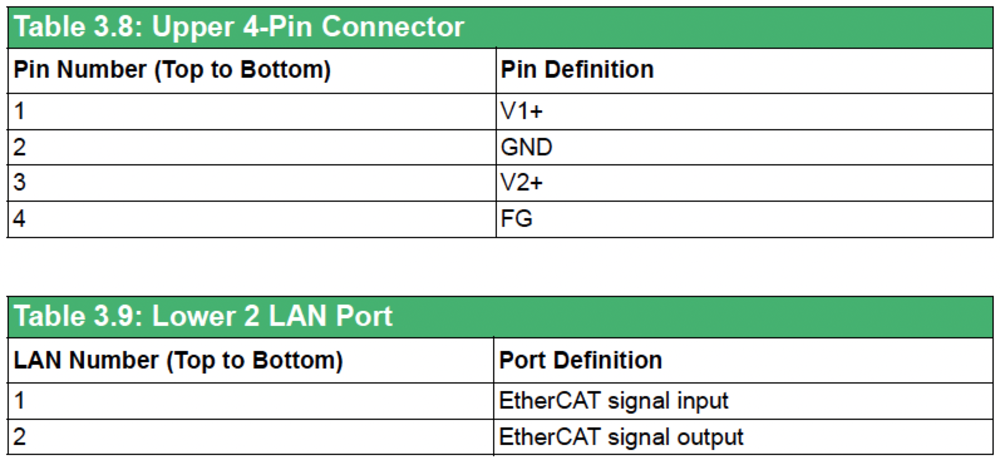

LAN Ports	2 x RJ45 (1 x Input, 1 x Output)

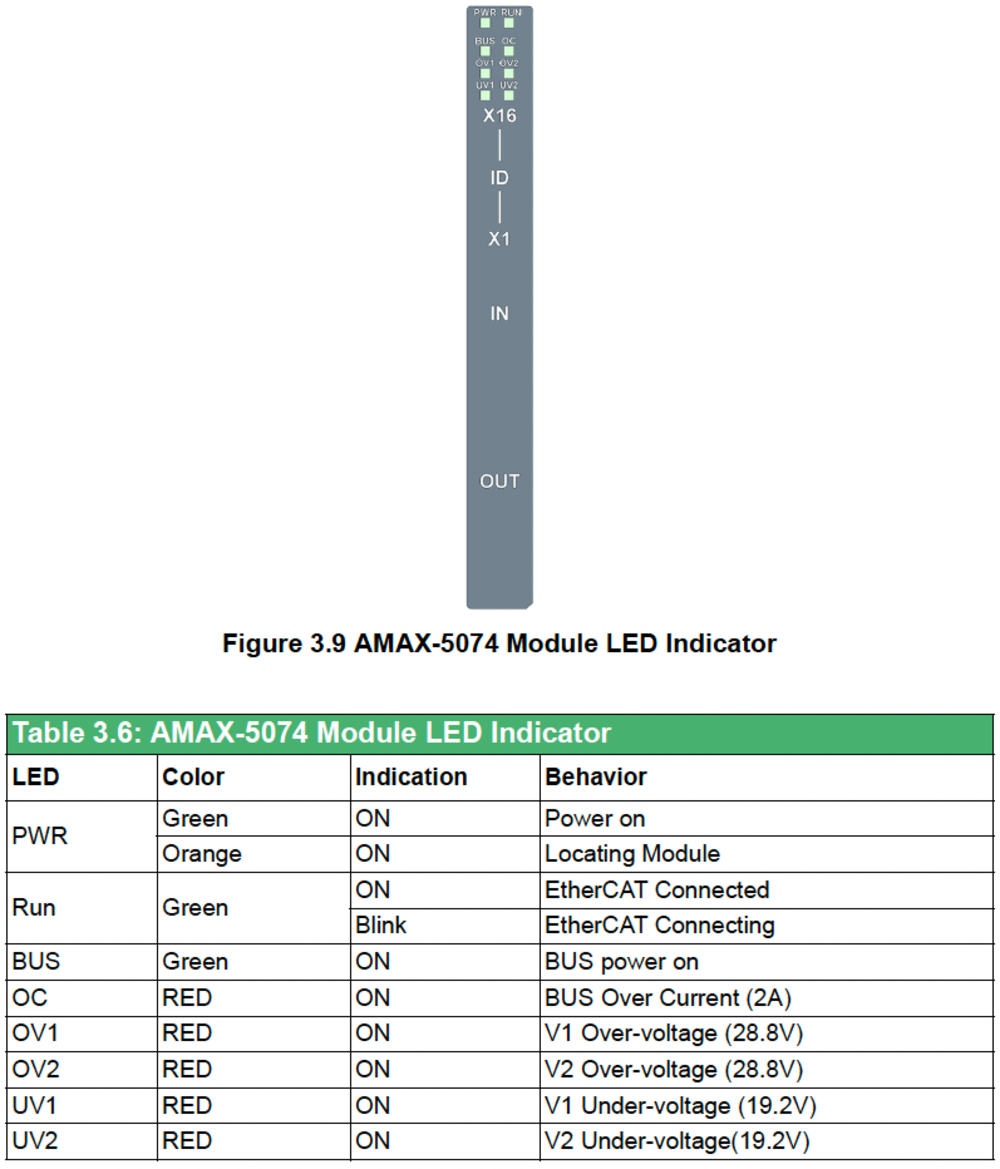

LED Panel	PWR, RUN / ERROR, Power Diagnosis LED

Mechanical Data back to top

Weight (typ.)	97 g
Wire Width	0.25 ... 1.5 mm²
Connector	Pluggable 4 Pole push-in terminal
Housing	Polycarbonate

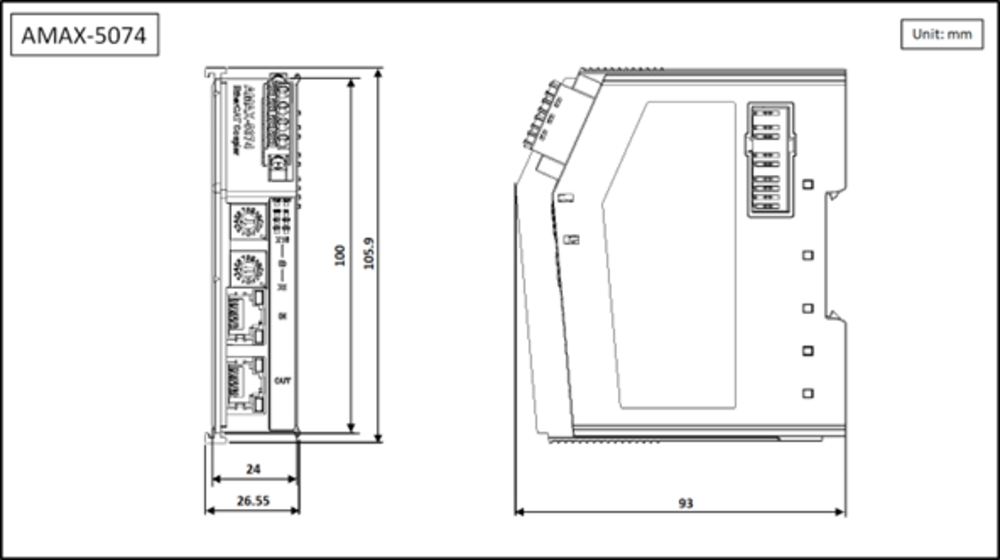

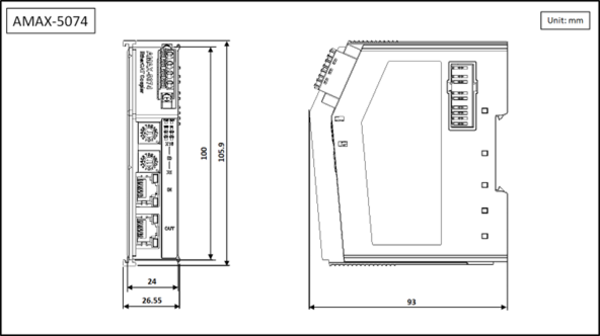

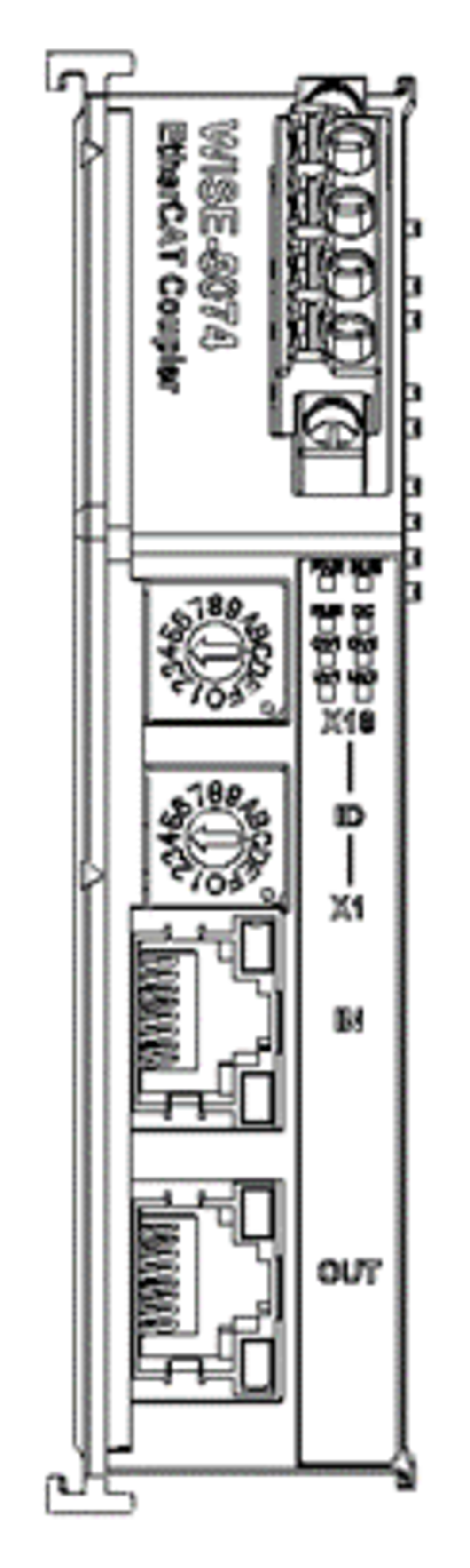

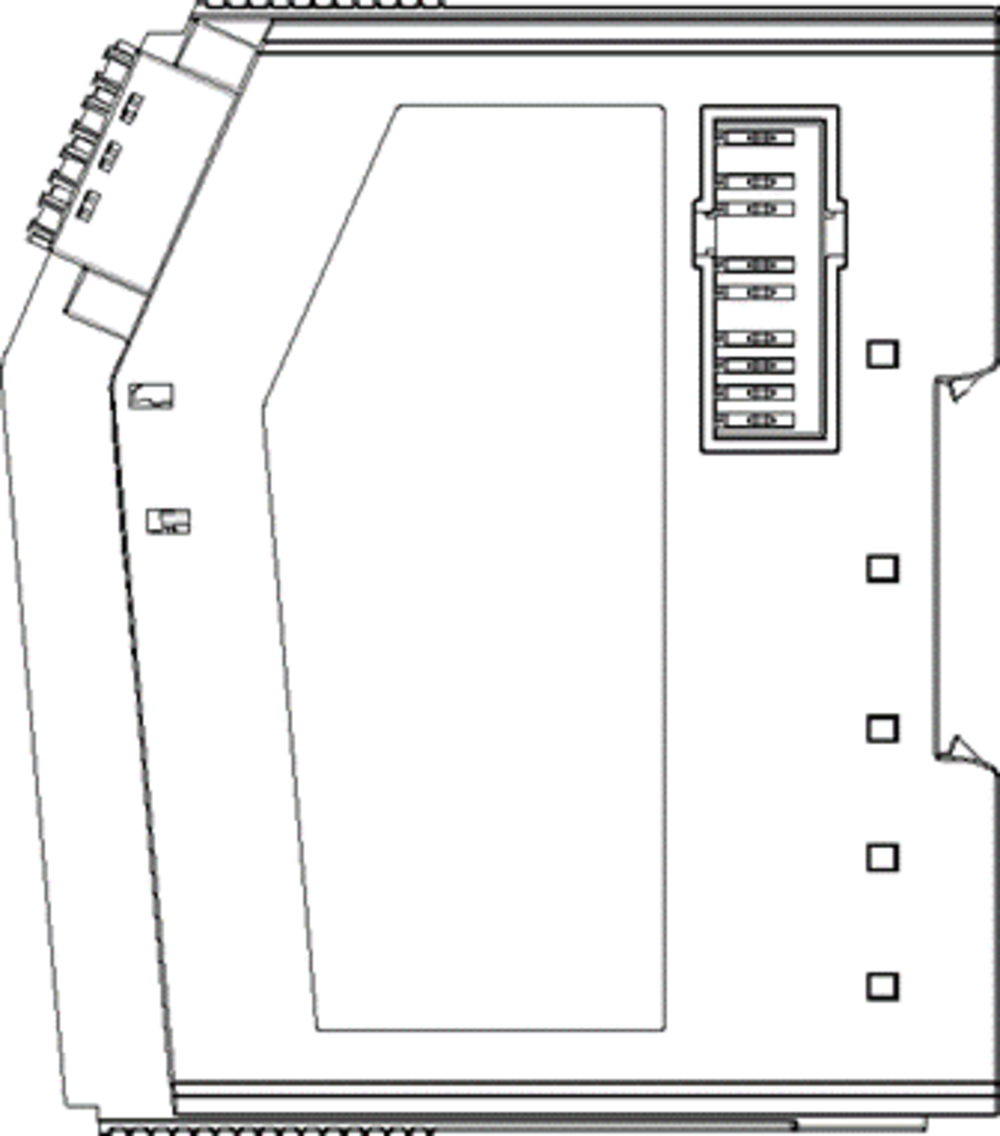

Dimensions back to top

Width (mm)	27 mm
Height (mm)	106 mm
Depth (mm)	95 mm

Certification back to top

Certification

CE, FCC class A

Ambient Condition back to top

Ambient Temperature (start-up type tested)	-25 ... 60 °C (-14 ... 140 °F)
Ambient Temperature (storage/transport)	-40 ... 85 °C (-40 ... 185 °F)
Operating Humidity (non-condensing)	5 ... 95 % RH @ 40 °C
