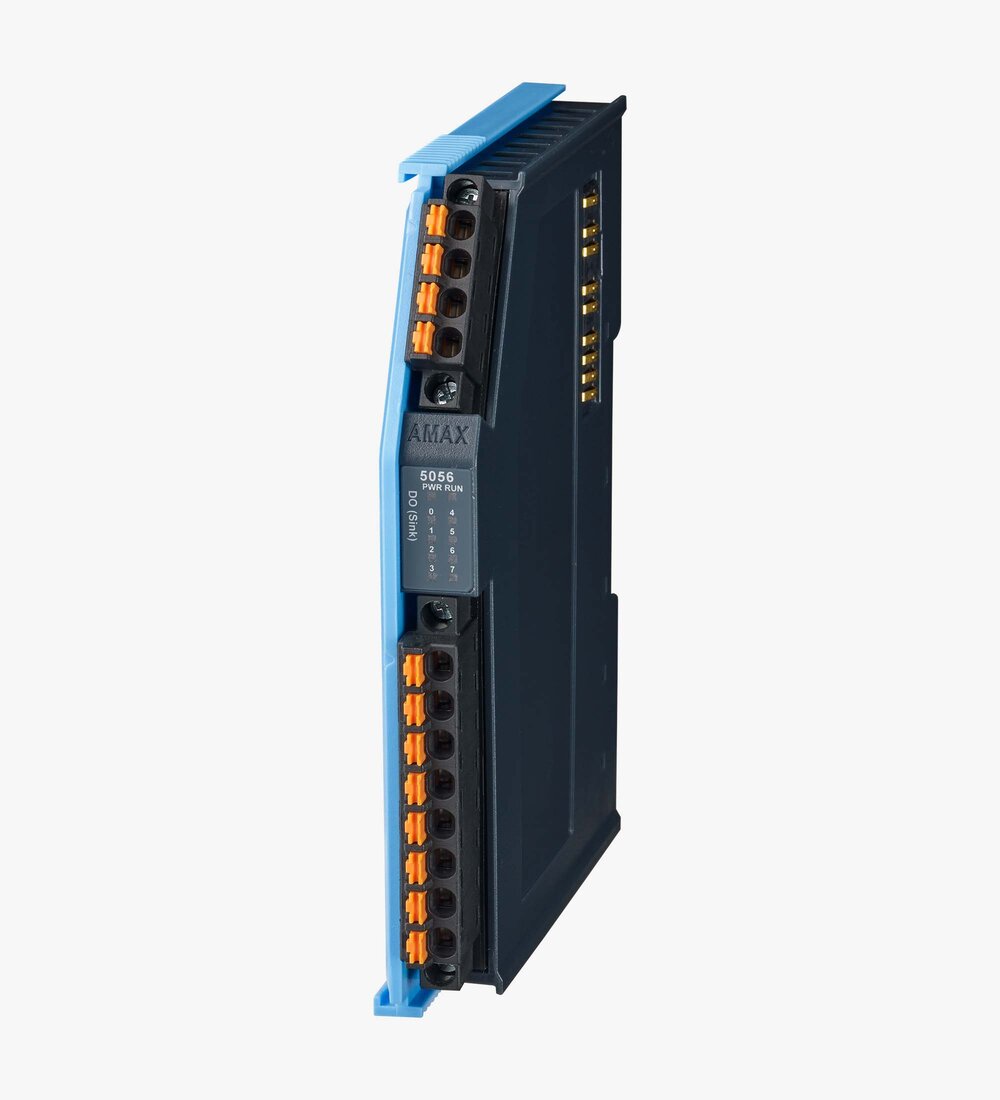

8-Channel Digital Output EtherCAT Slice IO Module (Sink Type, GND switching)

IP20 IO AMAX DO8 NPN

8-Channel Digital Output EtherCAT Slice IO Module, 24VDC, 0.3 A, sink type, NPN, GND switching

Function

8 channel output (Sink Type), 100Mbps EtherCAT, Removable push-in terminals, 24V DC, 0.3 A, NPN

HAVE A QUESTION?

SKU/Order No.: SA-AMAX-5056-A

CE Declaration Mark

Additional Information

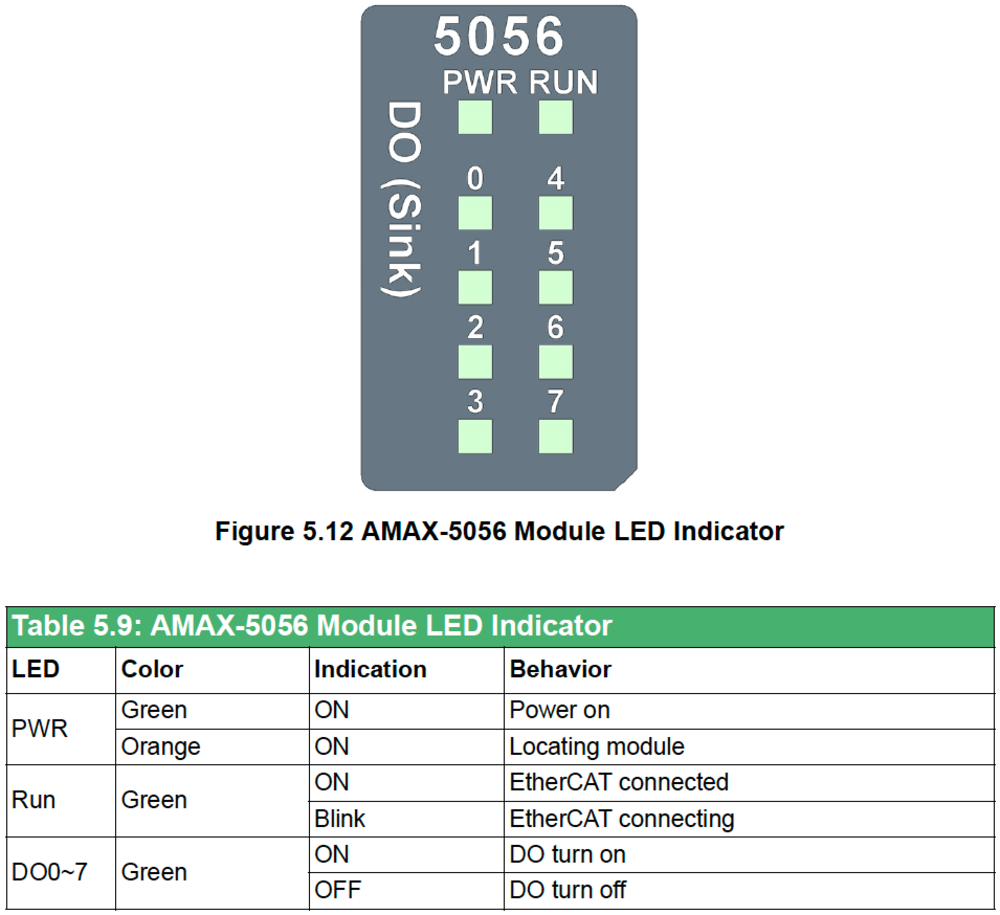

The AMAX-5056 module features 8 digital output (sink, ground switching) channels. The digital output channels offer LED to indicate digital status. The module provides 2,000 VDC optical isolation between channels. If any high voltage or current damage the channels, the whole system (other modules, and control unit) won't be affected because it is already isolated.
