4-Channel High-Speed Analog Input EtherCAT Slice IO Module

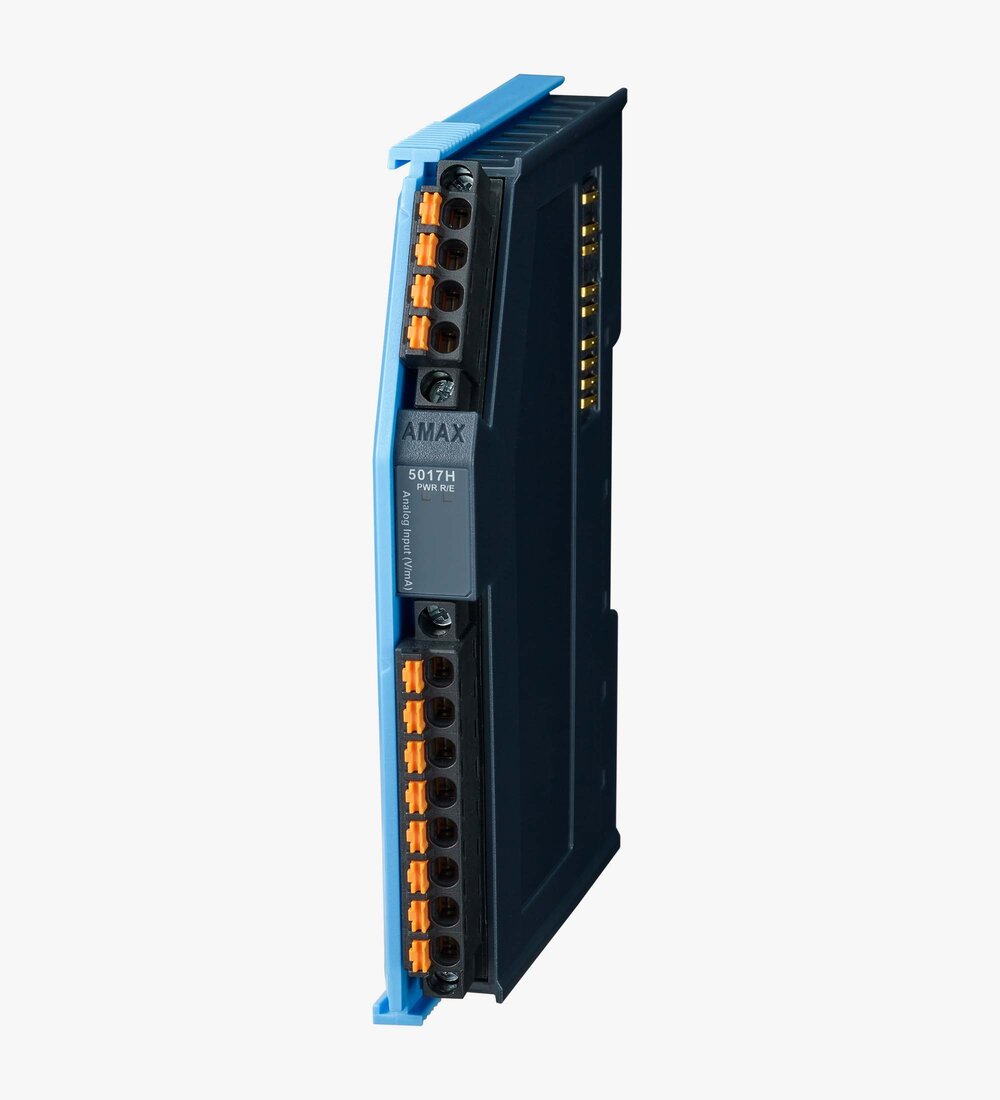

IP20 IO AMAX AI4-HS

4-Channel High-Speed Analog Input EtherCAT Slice IO Module, 0 ... 10 VDC / ±10 V, 0 ... 20 mA, 16 bit

Function

4 differential channel Current and Voltage input module, 100Mbps EtherCAT, 10 kHz sample rate, Input range: 0 ... 10VDC / ±10 V, 0 ... 20 mA, 16 bit

HAVE A QUESTION?

SKU/Order No.: SA-AMAX-5017H-A

CE Declaration Mark

Additional Information

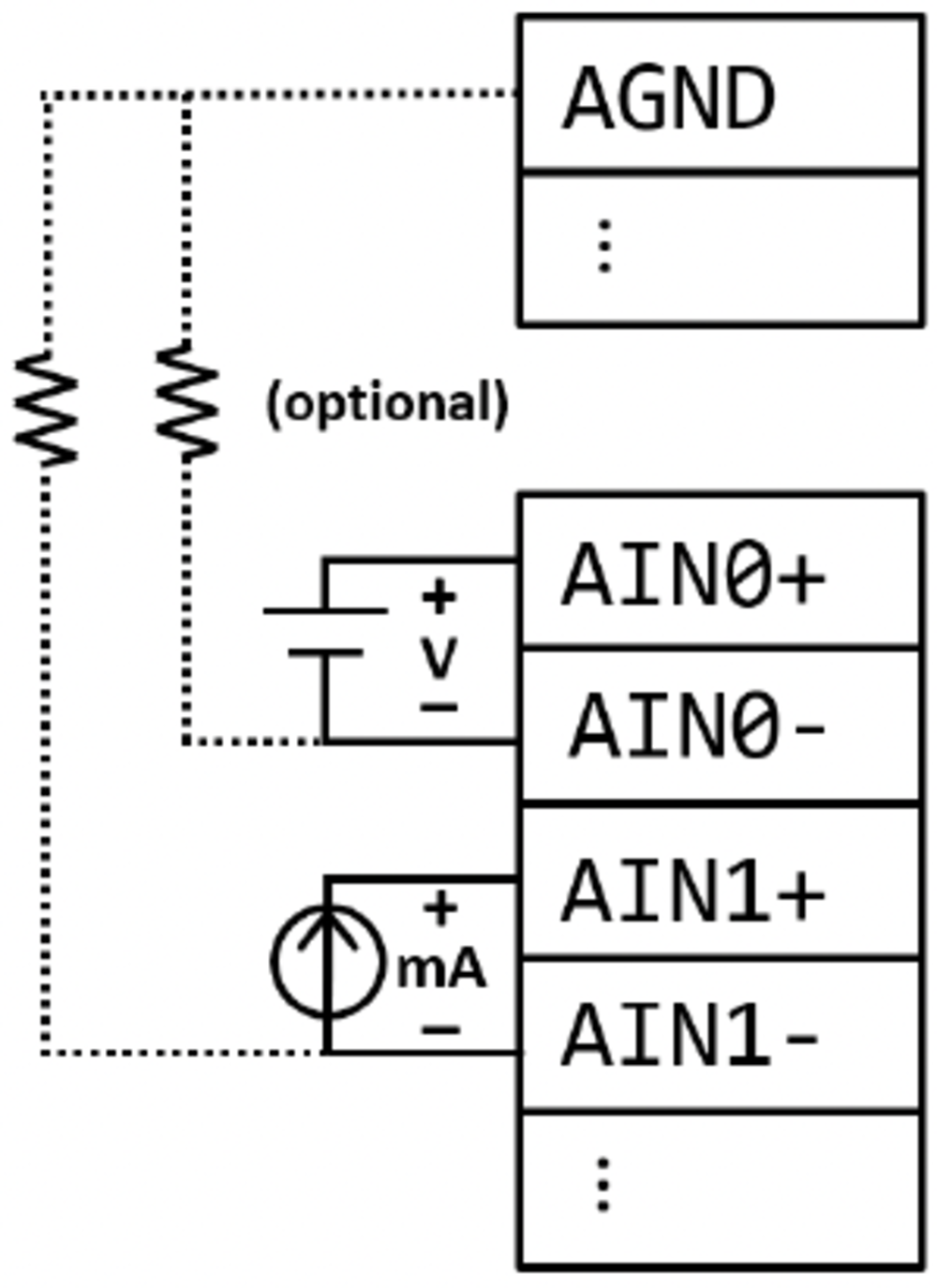

The AMAX-5017H is a 16-bit, 4-channel differential analog input module with 10 kHz sample rate. All channels can be configured to voltage or current input separately. This module is a cost-effective solution for industrial measurement and monitoring applications. The module provides 2000 VDC optical isolation between channels which can avoid high voltage or current damage the entire system.
