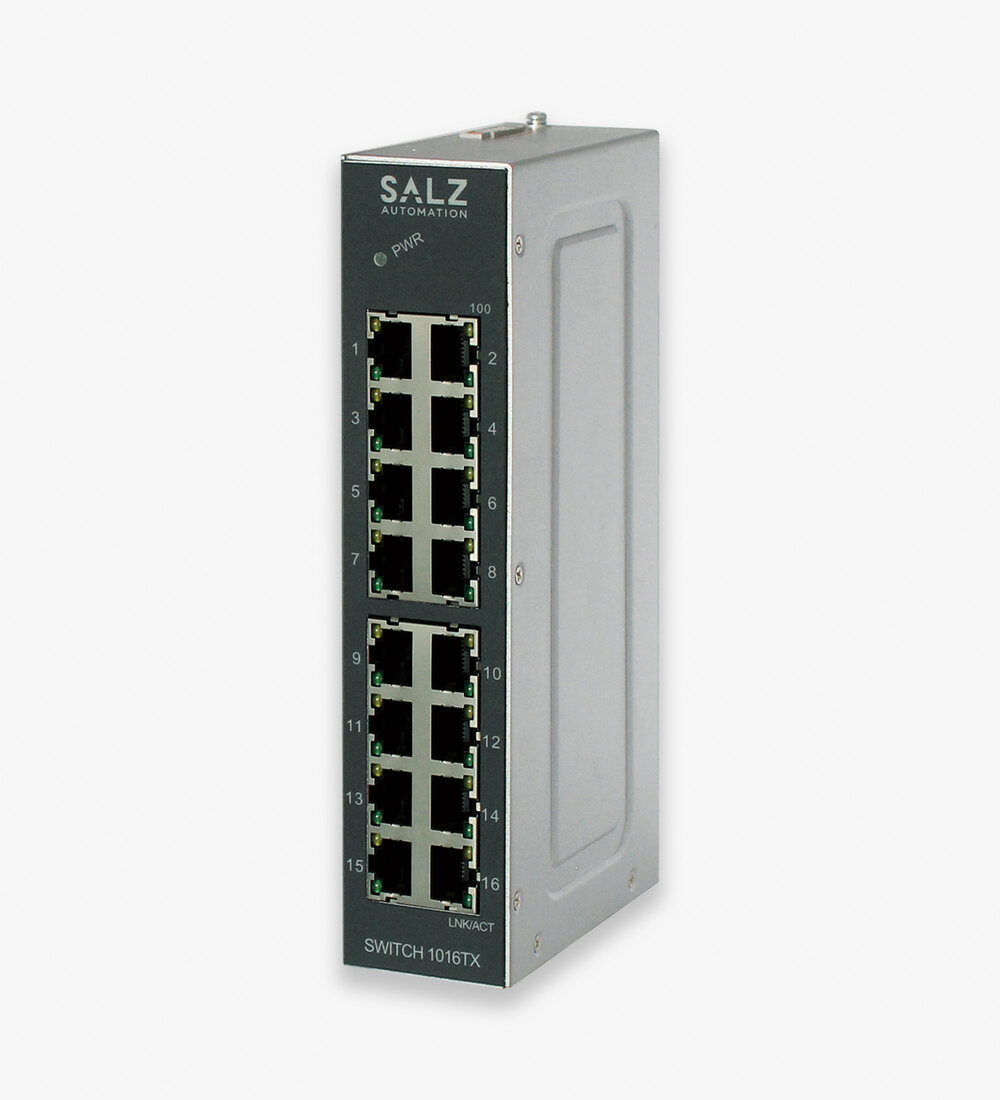

Unmanaged Industrial Switch 16 x 10/100 RJ45
SWITCH 1016TX
16-port unmanaged Industrial Fast Ethernet Switch
Function16 x 10/100 RJ45 unmanaged ports, storm-, flow control, VLAN support, 18 … 56 V DC, with protection against power surge, over-current, high-vibration
Features- 16 x 100 Mbit RJ45 Ports
- Storm Control
- VLAN-support
- Flow Control
Additional Information
The 16-port industrial Fast Ethernet switch of SALZ Automation is an unmanaged industrial 100Mbit Ethernet switch specifically designed to suit your heavy industrial environments. Well protected in a rugged IP30 grade housing, the switch ensures dependable and uninterrupted operations even in harsh environments, making it an ideal networking solution for Industrial applications. The SWITCH 1016TX is equipped with 16 x 10/100-BASE-TX ports and supports Fast Ethernet with VLAN support, Storm Control and Flow Control to achieve greater flexibility, stability and thus availability in your network.
16 x 100 Mbit RJ45 Ports
10/100 BASE-TX RJ45 Ports
Storm Control
The switch counts the number of packages of a specified type received within a defined time interval and compares the measurement with a predefined threshold.
VLAN-support
A VLAN (Virtual Local Area Network) separates a physical network into virtual subnets. The main advantage of using VLAN is the reduction of the overall communication load and the possibility to prioritize the subnets differently.
Flow Control
When using the Flow Control technology, the receiving device can send a so-called PAUSE frame. This causes the transmitter to stop sending new data. The result is a reduction in frame dropping, which reduces network load and increases availability.
