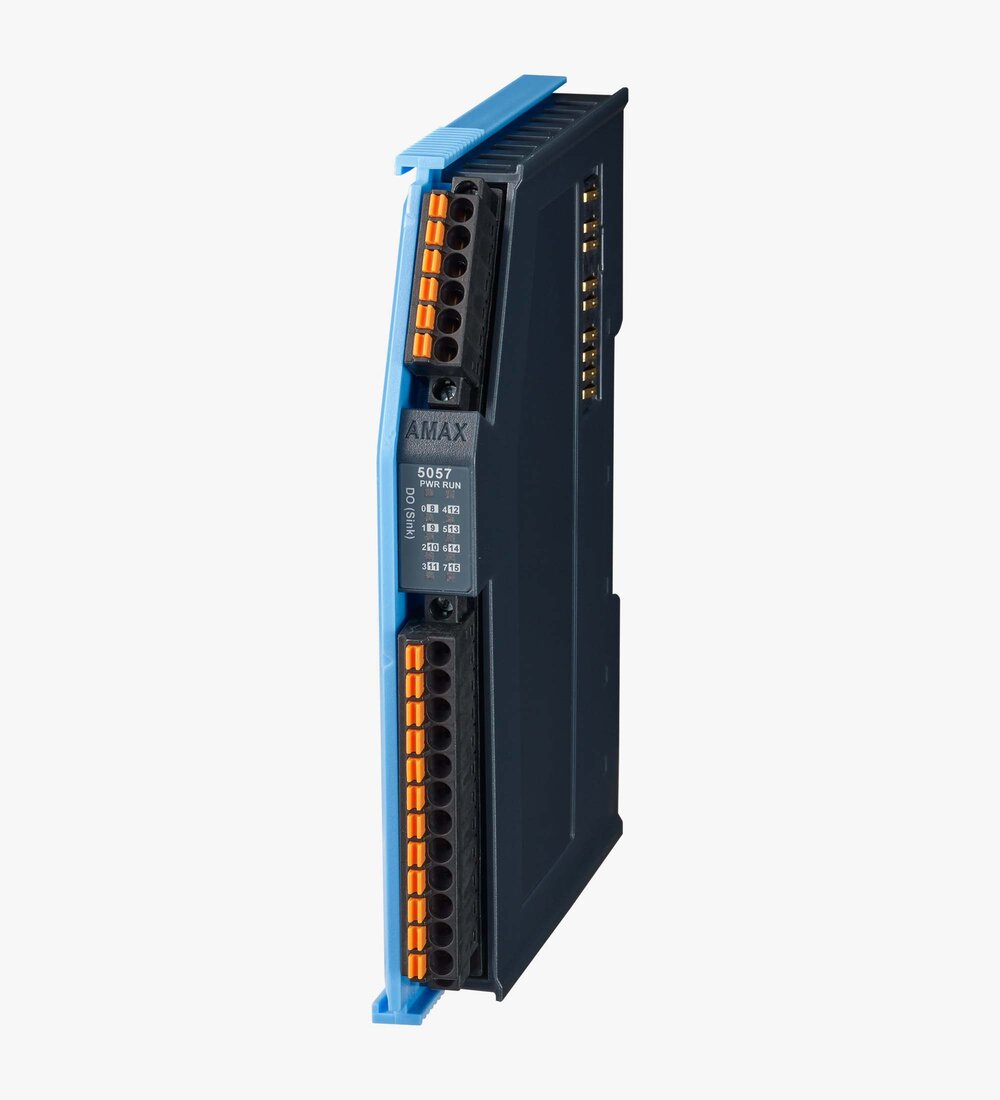

16-Channel Digital Output EtherCAT Slice IO Module (Sink Type, GND switching)
IP20 IO AMAX DO16 NPN
16-Channel Digital Output EtherCAT Slice IO Module, 24VDC, 0.3 A, sink type, NPN, GND switching
Function16 channel output (Sink Type), 100Mbps EtherCAT, Removable push-in terminals, 24V DC, 0.3 A, NPN
HAVE A QUESTION?SKU/Order No.: SA-AMAX-5057-B
Additional Information

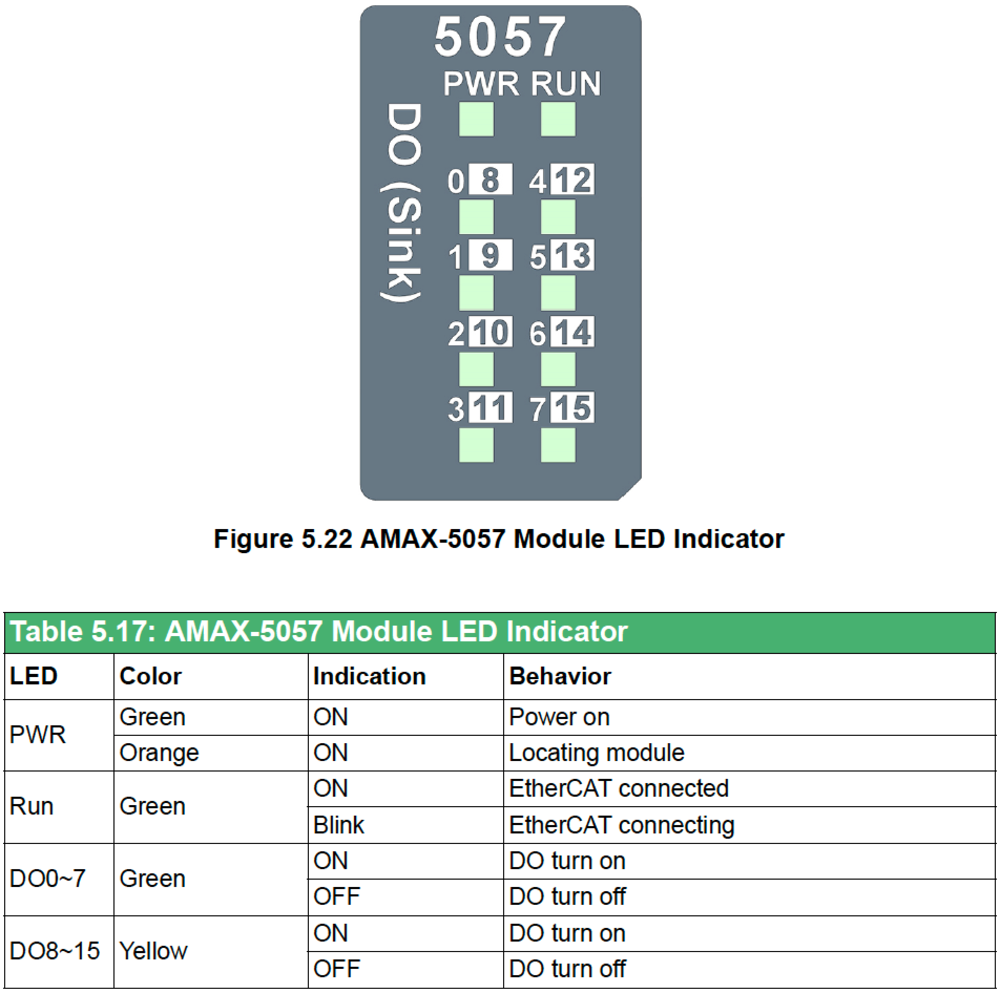

The AMAX-5057 module features 16 digital output (sink) channels. The digital output channels offer LED to indicate digital status. The module provides 2,000 VDC optical isolation between channels. If any high voltage or current damage the channels, the whole system (other modules, and control unit) won't be affected because it is already isolated.
