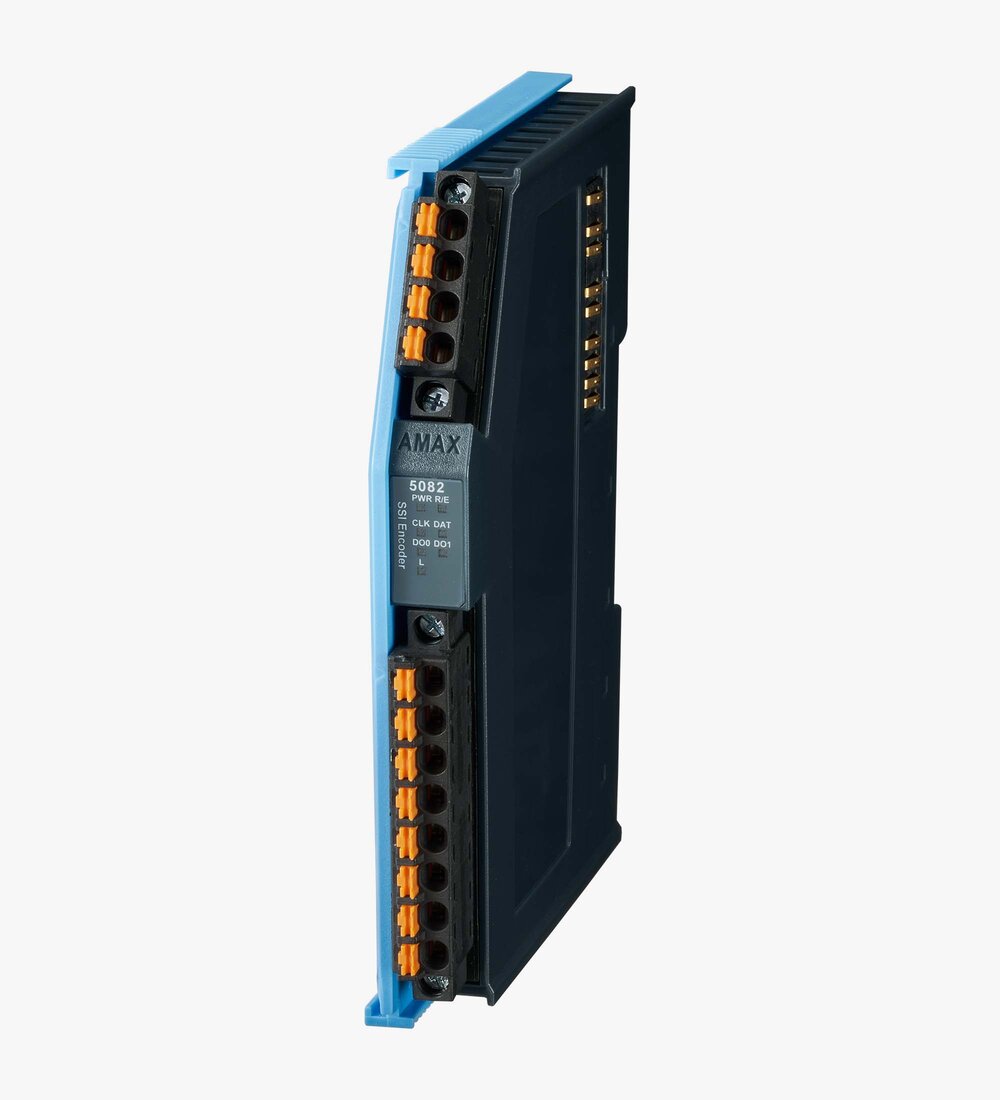

1-Channel SSI/RS422 Differential Signal Encoder Slice IO Module

IP20 IO AMAX DI1-SSI

1-Channel SSI/RS422 Differential Signal Encoder Slice IO Module, 2 MHz, 10…30V

Function

1-channel Input, ST: 0 … 16-bits, MT: 0 … 16-bits, 100Mbps EtherCAT, Counter Mode: SSI signal with Binary or Gray code, Removable push-in terminals

HAVE A QUESTION?

SKU/Order No.: SA-AMAX-5082-A

Additional Information

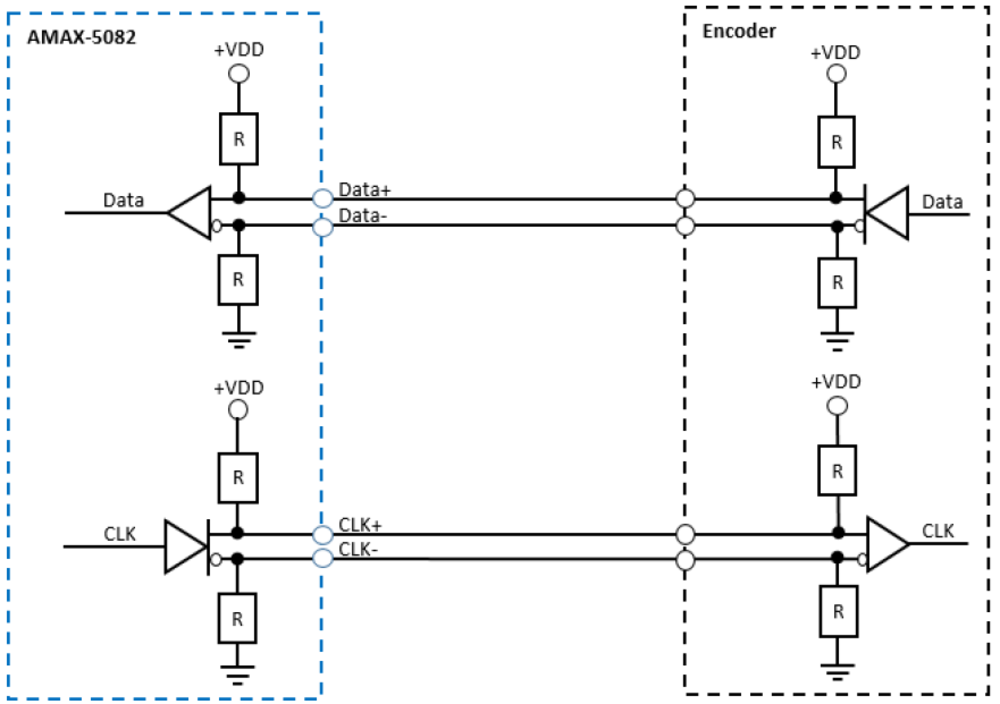

The AMAX-5082 is a 16-bit 1-ch encoder module for differential encoders, which supports SSI and RS422 differential input with up to 2 MHz input frequency. The module provides 2000 VDC optical isolation, if any high voltage or current damage the channels, the whole system (other modules or control unit) will not be damaged.

Interface

Isolation

Mechanical Data

Dimensions

Certification

Ambient Condition

Input Data

Digital Input

Communication

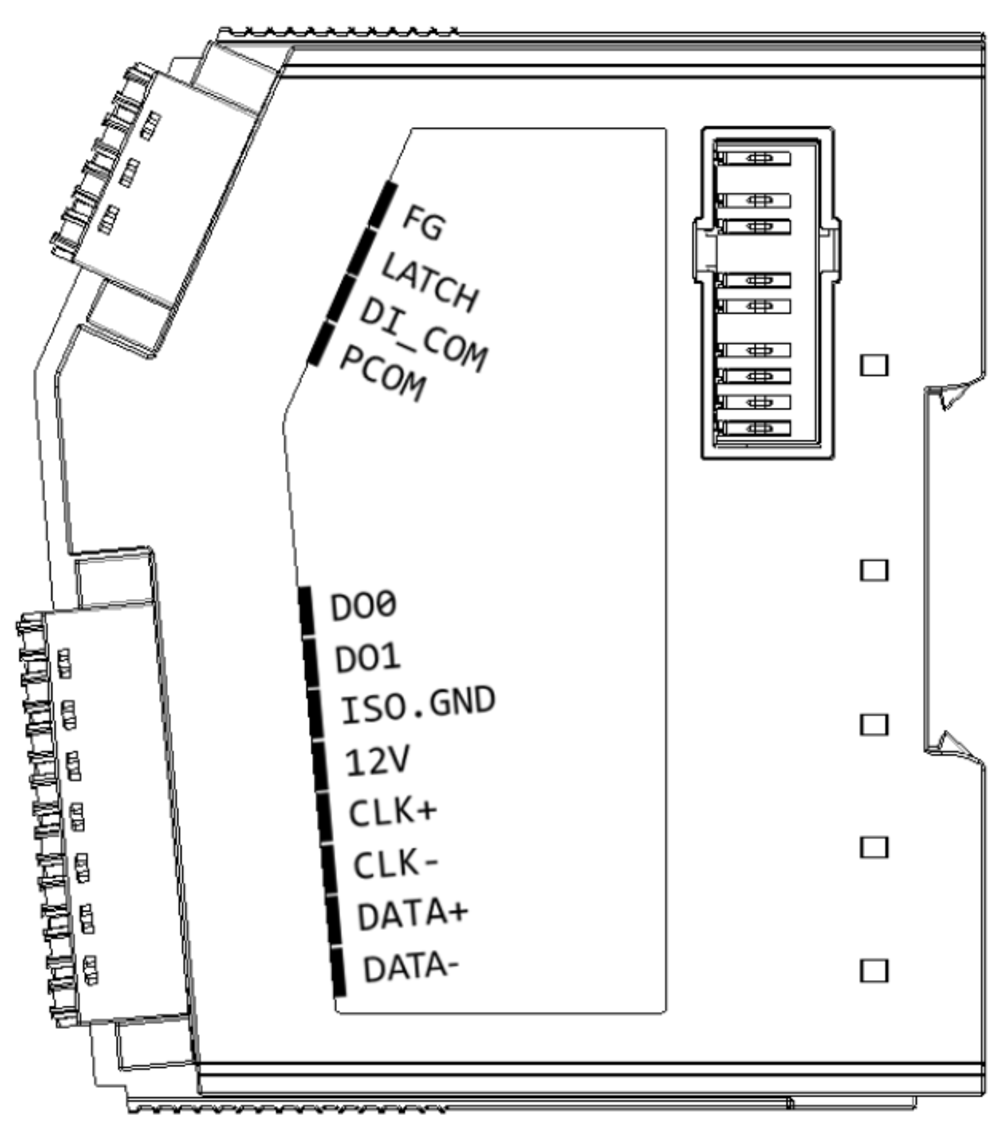

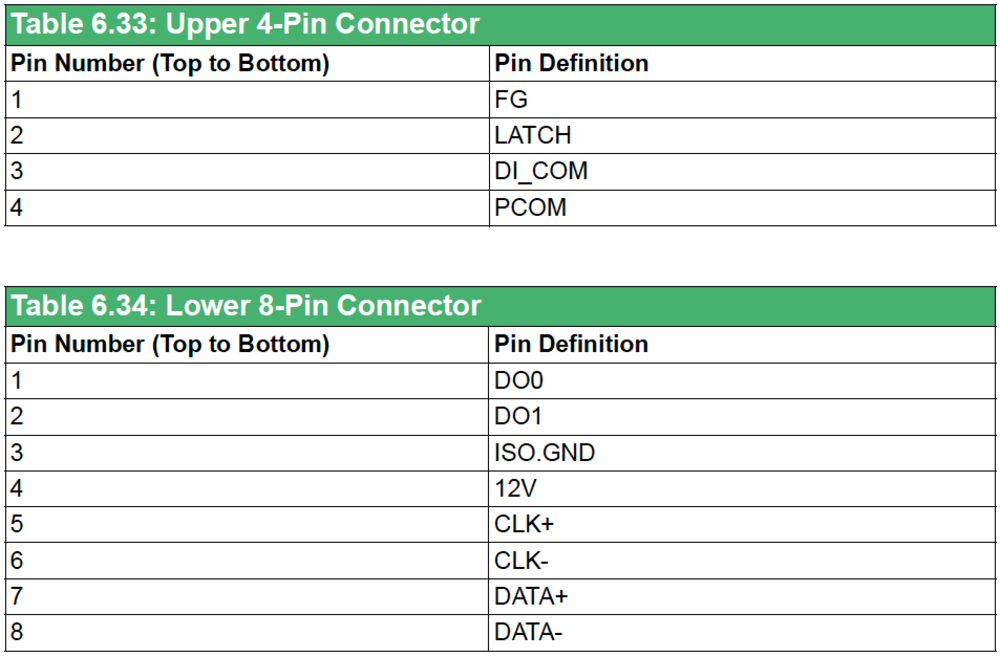

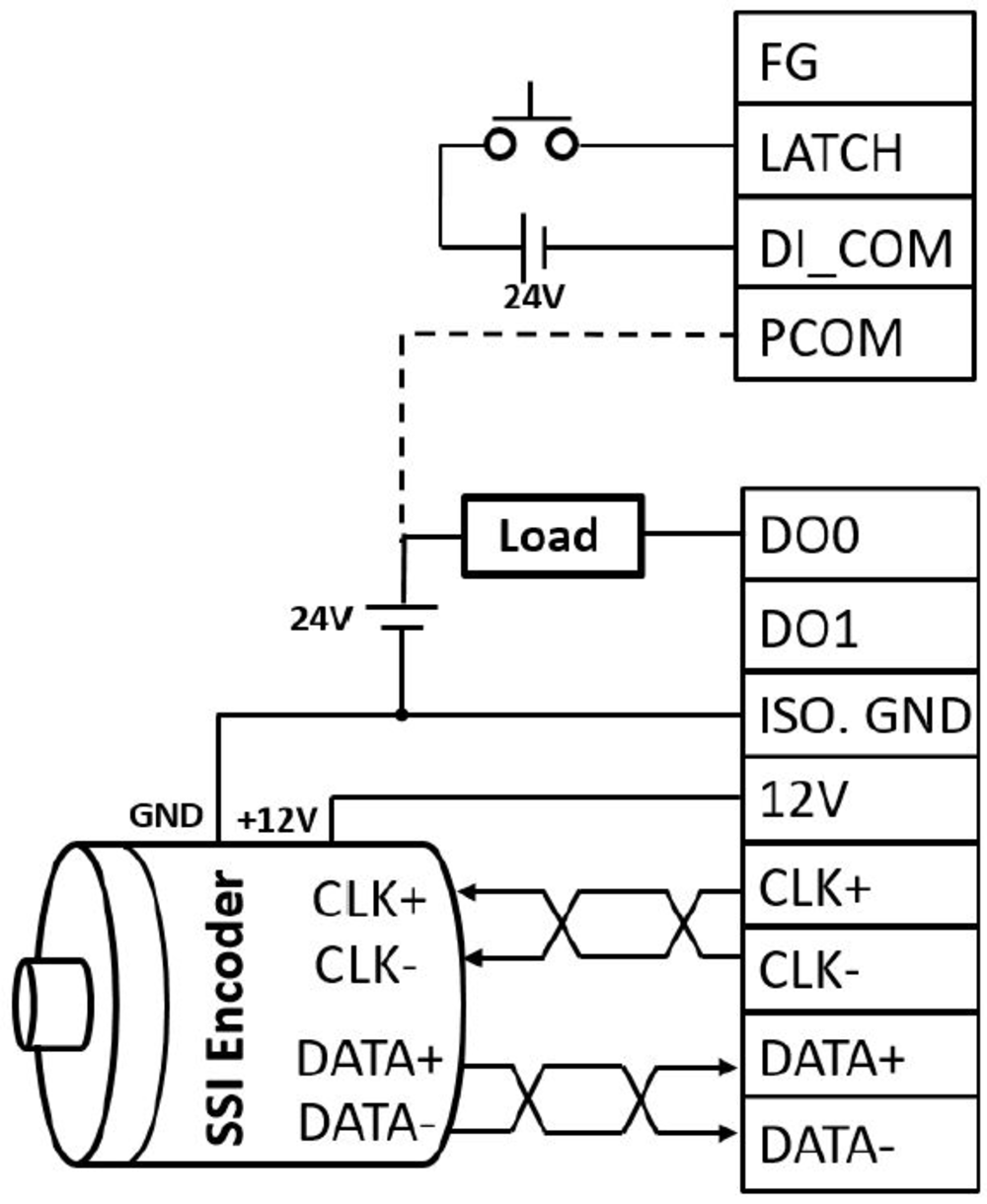

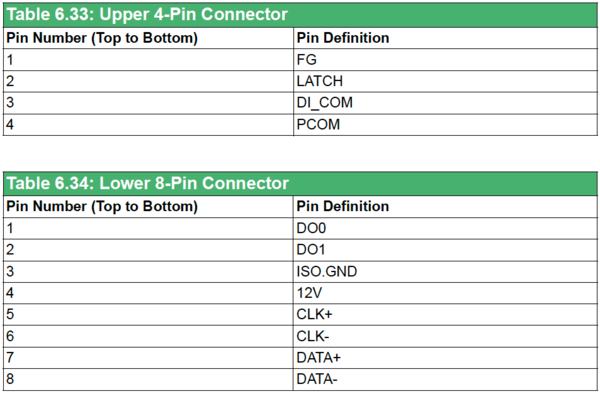

Interface back to top

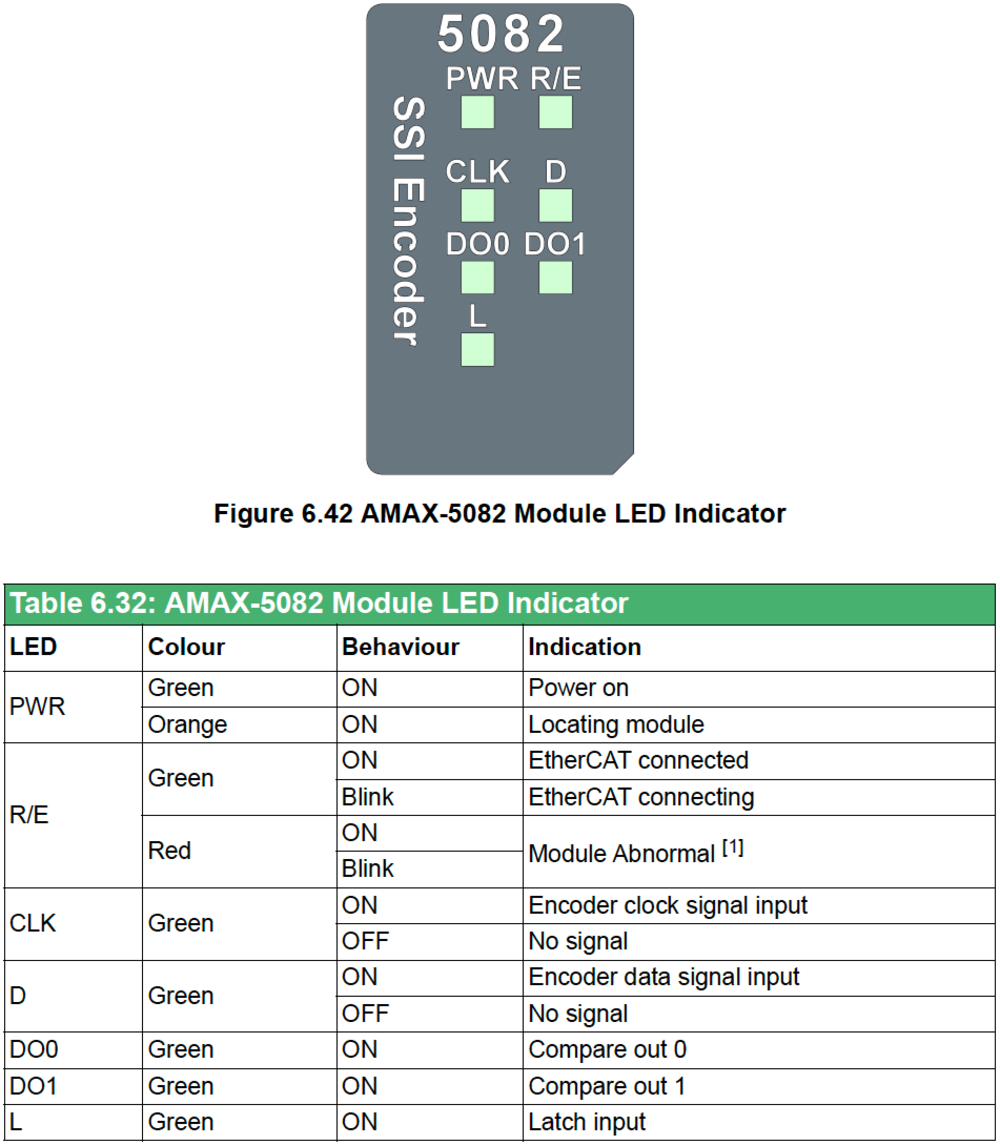

LED Panel

PWR, R/E, CLK, Data, DO0, DO1, L

Isolation back to top

Isolation

2,000 VDC

Mechanical Data back to top

Weight (typ.)	Approx. 80 g
Housing	Polycarbonate

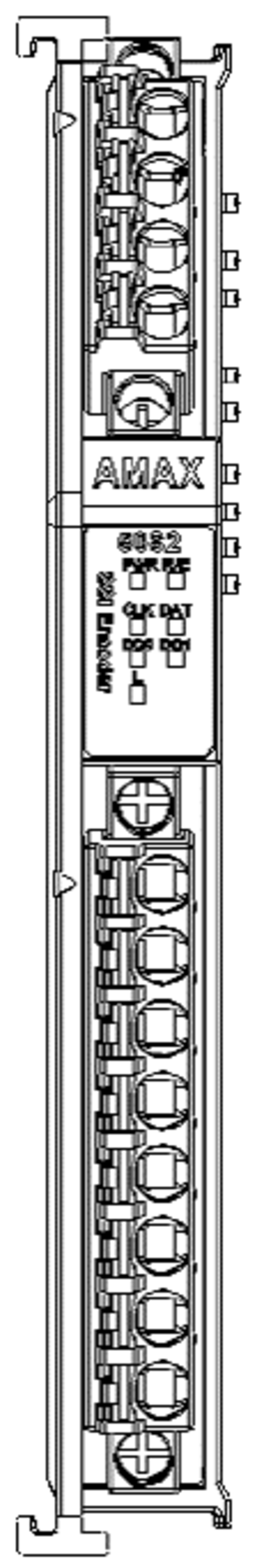

Dimensions back to top

Width (mm)	12
Height (mm)	106
Depth (mm)	95

Certification back to top

Certification

FCC class A

Ambient Condition back to top

Ambient Temperature (start-up type tested)	-25 ... 60 °C (-14 ... 140 °F)
Ambient Temperature (storage/transport)	-40 ... 85 °C (-40 ... 185 °F)
Operating Humidity (non-condensing)	5 ... 95% RH @ 40°C

Input Data back to top

Power Consumption (max.)	3 W @ 24 VDC
Input Channels	1-channel
Frequency	2 MHz (clock rate)
Counting Range	ST: 0 … 16-bits, MT: 0 … 16-bits
Input Voltage Range DC	+12 V

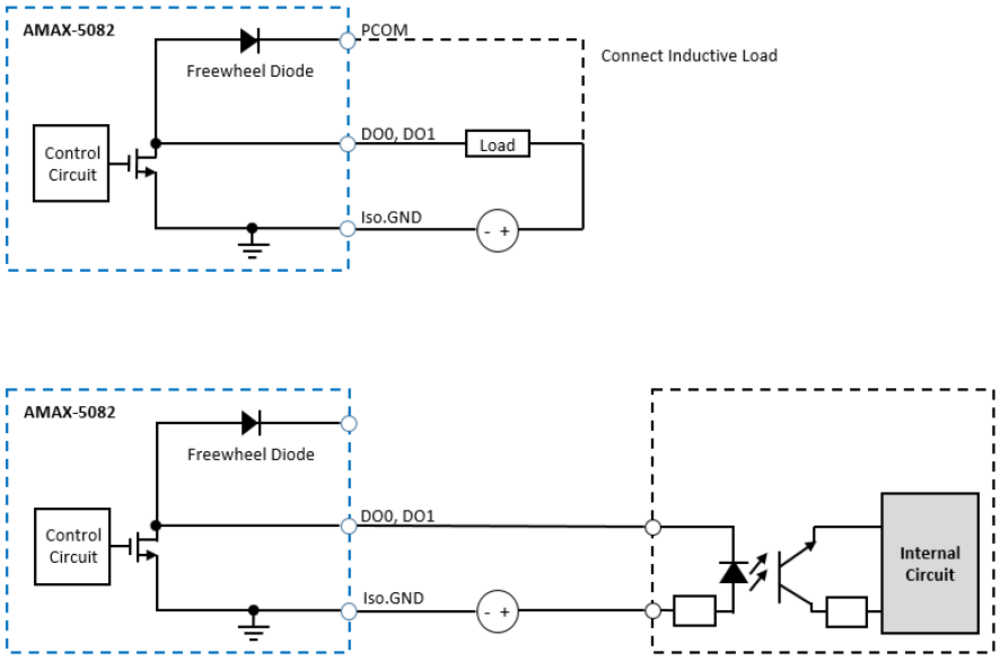

Auxiliary I/O	10 … 30 V DI Latch / Pulse output
