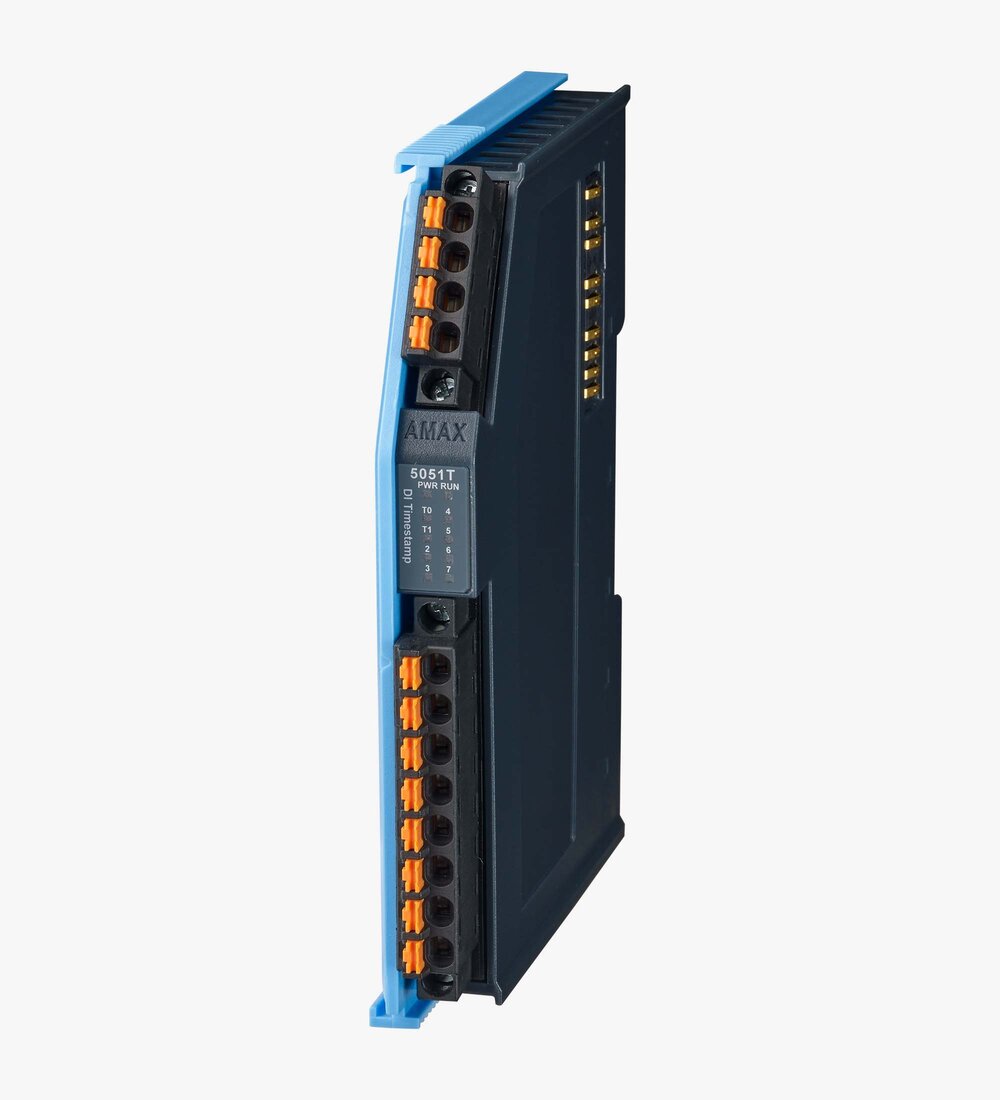

8-Channel Digital Input EtherCAT (2-channel with time stamp) Slice IO Module
IP20 IO AMAX DI2T-DI6
8-Channel Digital Input EtherCAT (2-channel with time stamp) Slice IO Module
Function8 channel input (2-ch Timestamp DI, 6-ch Regular DI), 100Mbps EtherCAT, Removable push-in terminals, 24 VDC, res. TS 1 ns
HAVE A QUESTION?SKU/Order No.: SA-AMAX-5051T-A
Additional Information

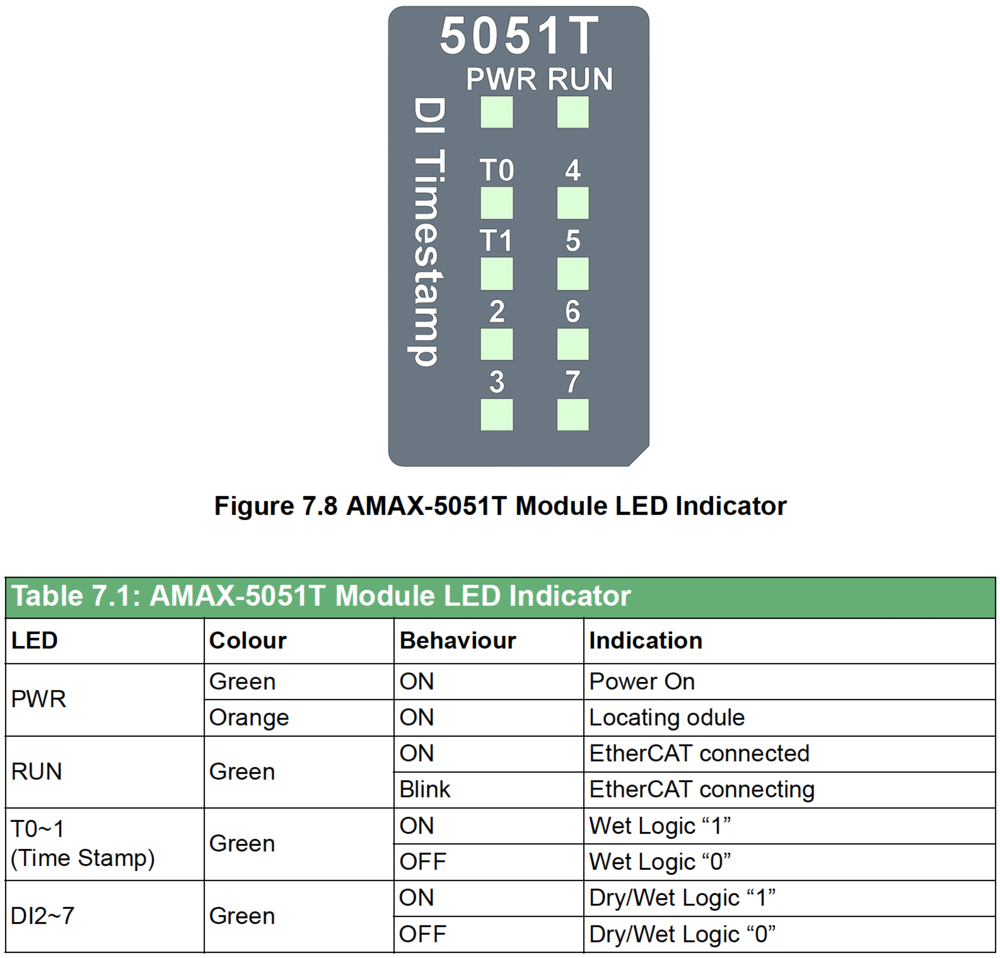

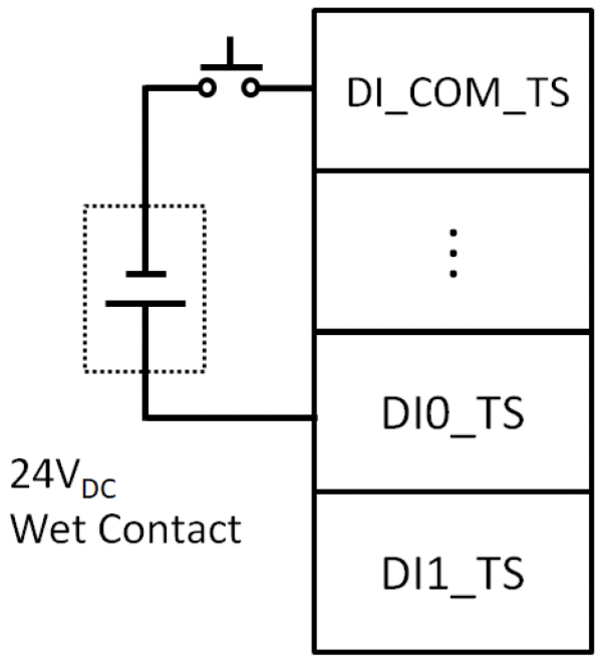

The AMAX-5051T is an 8-ch digital input module (including 2-ch timestamp DI). The timestamp enables a precise and deterministic DI latching at a resolution of 1ns. The digital input channels offer LED to indicate digital status. The module provides 2,000 VDC optical isolation between channels. If any high voltage or current damage the channels, the whole system (other modules, and control unit) won't be affected because it is already isolated.
