2-Channel HTL Incremental Encoder/Counter Interface Slice IO Module

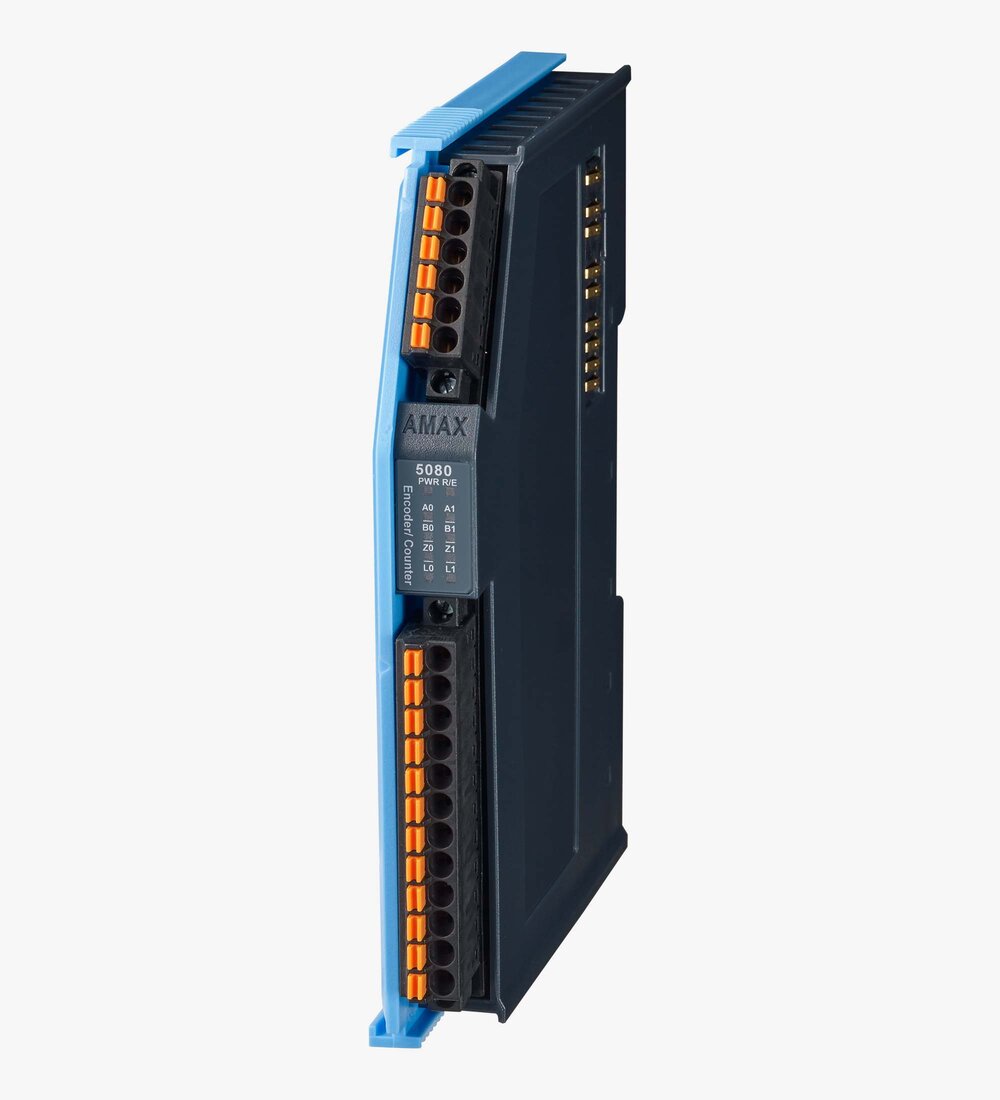

IP20 IO AMAX DI2-HTL

2-Channel HTL Incremental Encoder/Counter Interface Slice IO Module, 24VDC, Encounter x4, Pulse/Dir, 32-bit

Function

2-ch Input, 32-bit counting range, 100Mbps EtherCAT, Counter Mode: Encounter x4 and Pulse/Dir, Removable push-in terminals

HAVE A QUESTION?

SKU/Order No.: SA-AMAX-5080-A

CE Declaration Mark

Additional Information

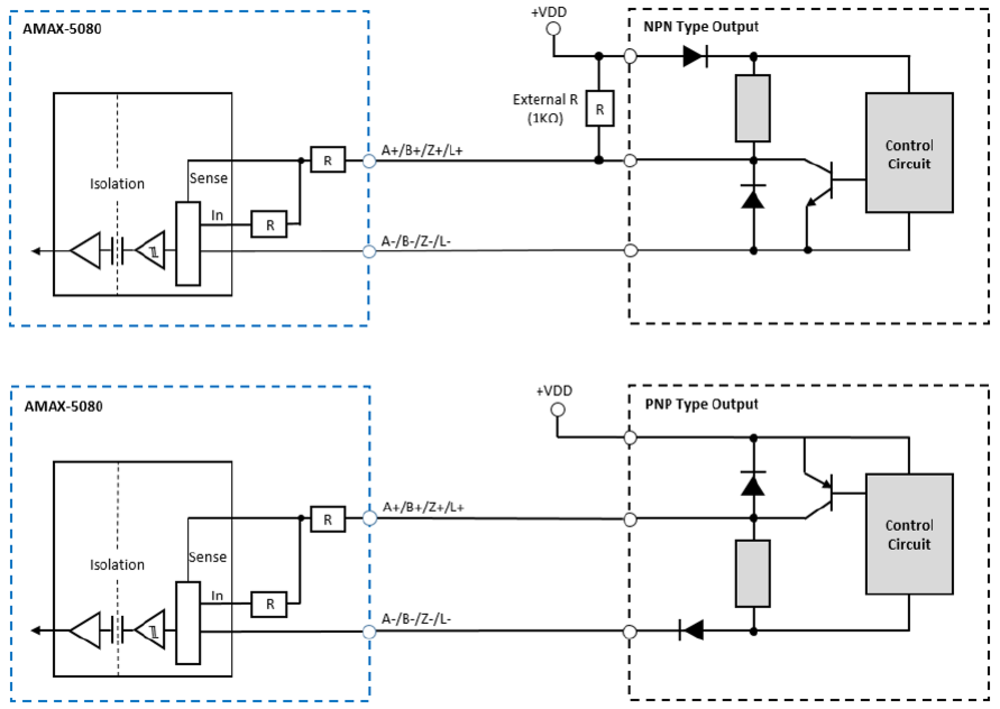

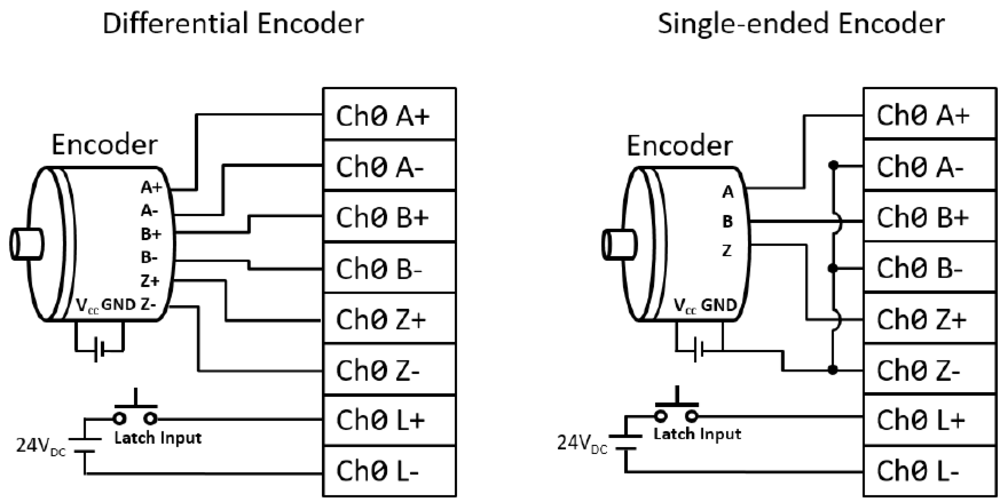

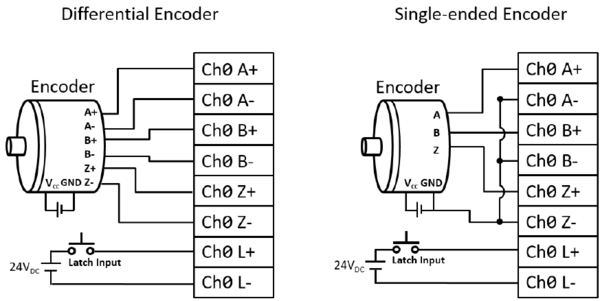

The AMAX-5080 is a 32-bit 2-ch counter/encoder module which supports Encoder Mode and Bi-direction Mode. It supports up to 1 MHz input frequency. The module provides 2000 VDC optical isolation, if any high voltage or current damage the chan- nels, the whole system (other modules or control unit) will not be damaged. It supports two counter modes, the counter mode can be set selected to Encoder Mode and Bi-Direction Mode. Both modes support the following features, Overflow/underflow detection and reload counter, Latch counter value, Reset counter value, Set counter value, Counter frequency measurement and Input Filter.
