Secure process control for water treatment
Description of the Use Case
Modern water treatment plants require precise, real-time process control as well as safe and straightforward system maintenance. Achieving these goals with a single, intuitive human-machine interface is critical to ensuring reliable water quality and operational efficiency. In this project, these challenges were addressed by implementing a unified, decentralized automation and monitoring solution tailored specifically to water treatment operations.

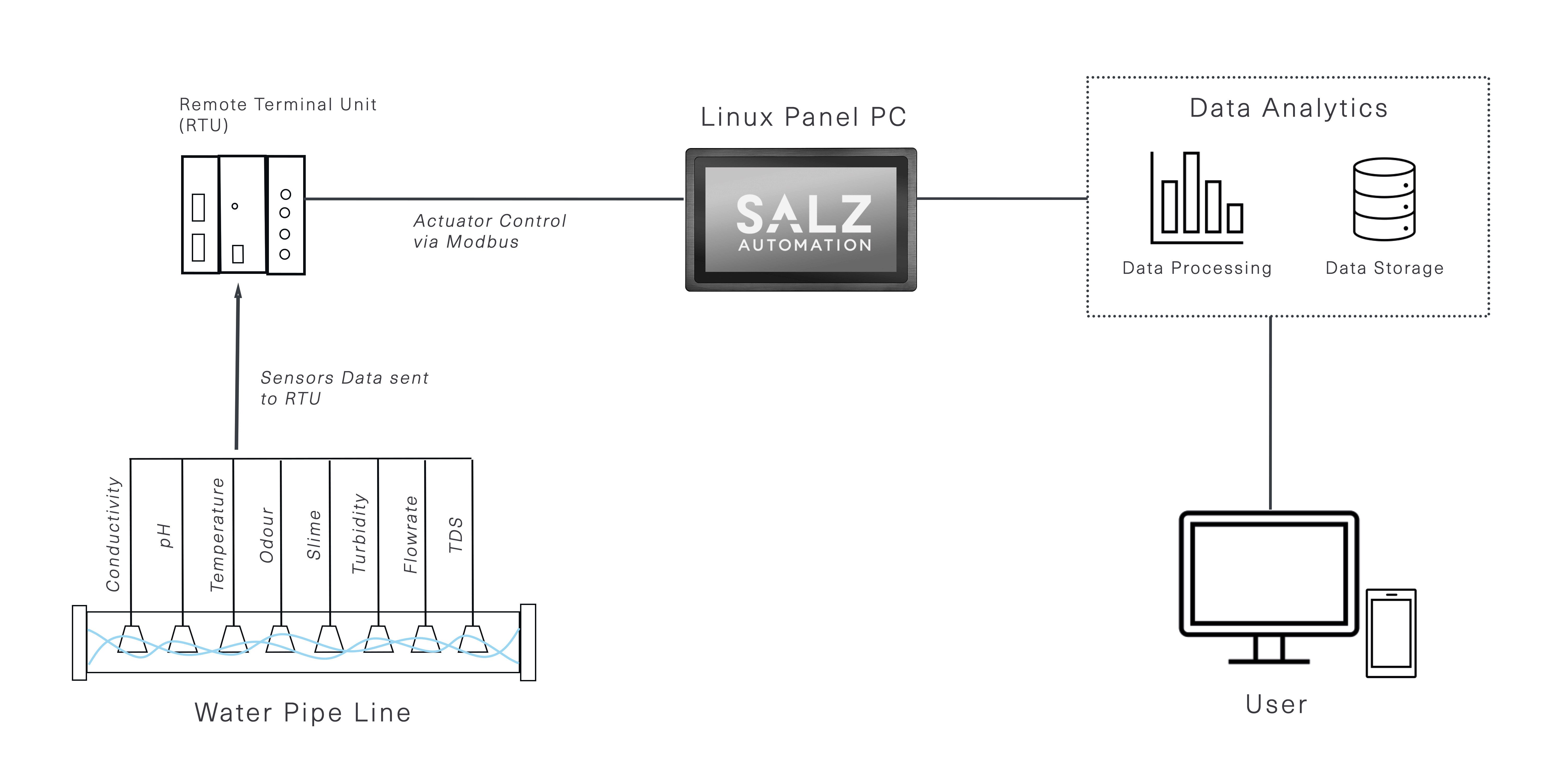

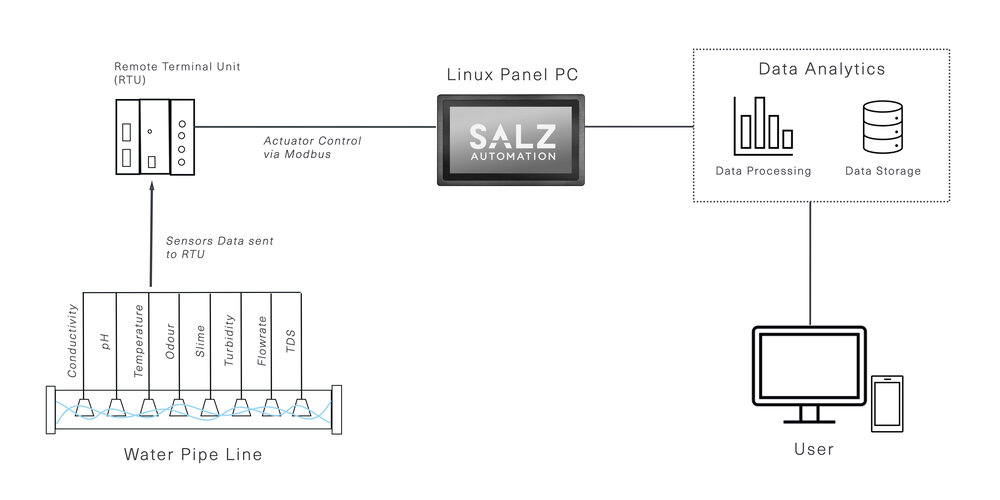

In this application, a Linux-based Panel PC equipped with SCADA and Microbrowser technology was used to visualize Modbus-connected remote control units and manage the entire water treatment process. The Panel PC from SALZ Automation allows role-based access to manage the data.
The customer chose SALZ Automation because of our proven experience with embedded Linux systems, implemented security update mechanisms and scalable SCADA integration to ensure a robust and future-proof automation system for water treatment.
Performance Requirements
The task was to create a stable and protected operating environment (access control) that is suitable for sensitive, industrial use.
Requirement
A secure Linux system was required that guarantees data integrity, prevents unauthorized access and supports long-term secure operation.
The task was to ensure consistent communication between the Panel PC and the Remote Terminal Units (RTU).
Requirement
The requirement was for a robust and responsive Modbus interface that would enable continuous real-time data exchange without interruption.
The task was to enable long-term support and maintenance without manual intervention in the system.
Requirement
The requirement was an integrated and role-based update mechanism that enables remote updates via Debian Package Management (APT). Only users with a higher access level are allowed to perform updates.
Individual Steps of the Project
1. Login and access control
- SCADA recognizes user role and activates functions accordingly.
2. Process visualization and control
- Visualization via a special browser from our partner IniNet (Microbrowser) based on Wayland technology.
- Real-time data from the control system - secure thanks to kiosk operation, as you can only work in the special browser.
- Other applications that support Wayland can also be integrated.
3. System configuration via SCADA
- Touch-based settings for display and memory monitoring.
4. Updates and remote maintenance
- Service providers make application applications available via the Internet.
- Admins install all updates independently.
5. Security and monitoring
- Logging of all irregularities.
- Integration in SCADA alarm list.
User roles for role-based access
| Operator | Visualizes processes and operates systems. |
| Administrator | Manages system services, updates and logs. |
| Service provider | Provides SCADA updates via SALZ Debian repository. |
Advantages of the solution
- Everything in one interface: SCADA and system management integrated.
- No SSH necessary: Maintenance directly via touch SCADA.
- Secure update concept: APT and role control.
- Flexible display: Optimized for different form factors and orientations (portrait and landscape format, resolution, etc.).
- Future-proof: Debian-based, stable and expandable.
Result
A fully integrated SCADA panel PC that can do more than just visualize processes - it redefines maintenance, reduces downtime and ensures maximum user-friendliness.
SALZ Automation developed a custom system based on Debian 13:
Hardware: Linux-Panel PC with flexible display orientation (portrait/landscape) and automatic scaling.
SCADA: SpiderControl by IniNet running in secure kiosk mode.
Frontend: Touch-optimized microbrowser based on Wayland.
System Management: Role-based simple update mechanism for controlled system maintenance.
Embedded Linux I Application Integration I SCADA Expertise I Security

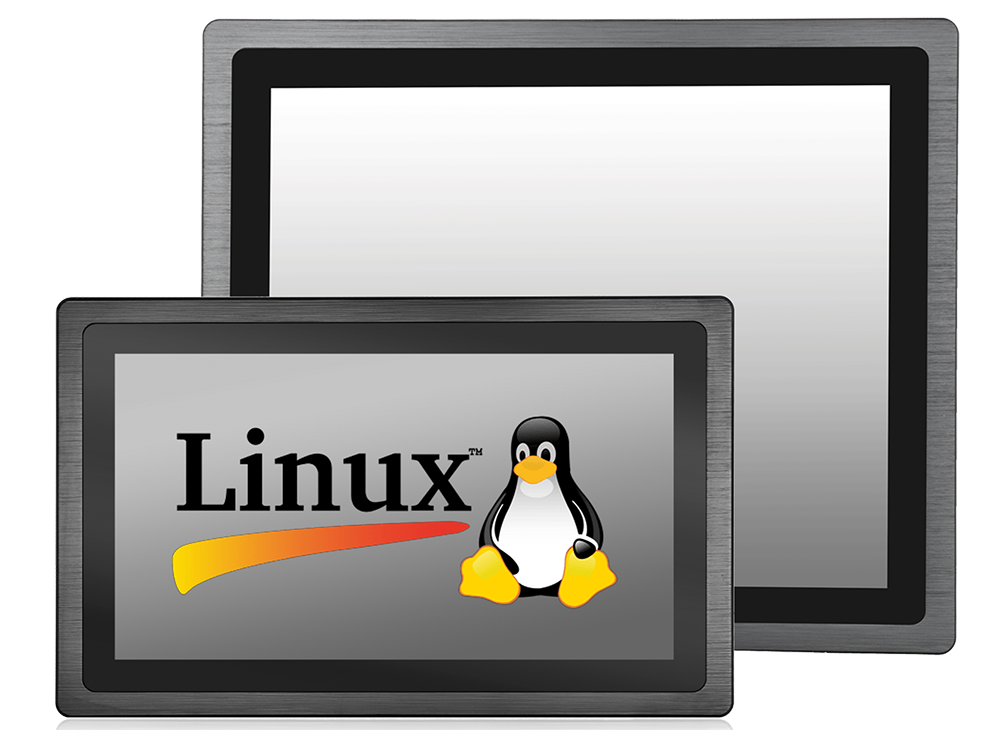

Discover our Linux Panel PCs
