Series CP Relay 1 changeover contact 24/48/110/230 V AC

RELAY CP 1C-AC-KIT

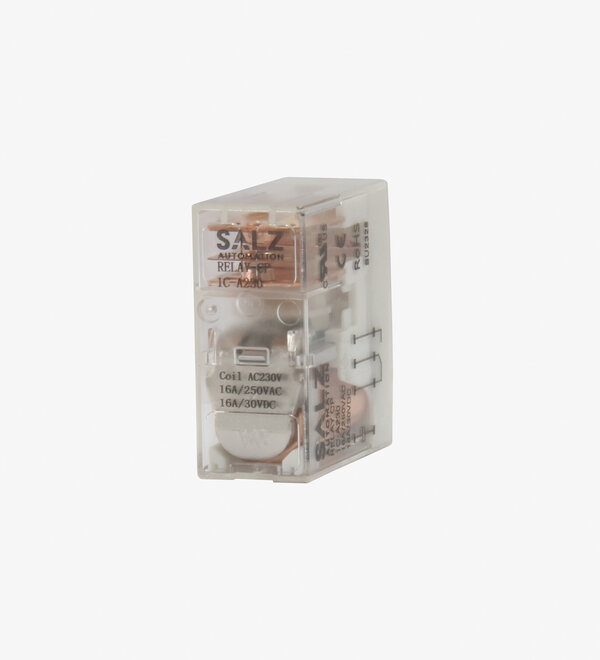

Preassembled relay with 1 changeover contact and socket with Push-in connection technology

Function

1 changeover contact, control voltage: 24/48/110/230 V AC variants, contact load: 16 A, Push-in wiring, 16.5 mm wide, CE, UL, and RoHS compliant

Features

Manufactured by SALZ Automation
Slim Design
16 A switching capability
High insulation capability
Wide Operating Temperature

HAVE A QUESTION?

Datasheet- RELAY CP 1C-AC-KIT Download

SKU/Order No.: SA-CP1C-A....-PM

Additional Information

The preassembled relay kit from the CP series is a compact combination of a plug-in industrial relay with 24/48/110/230 V AC with changeover contact and a socket. The socket has Push-in connection terminals that simplify the wiring process. The kit is 16.5 mm wide and suitable for various mounting applications. The featured changeover contact makes it versatile for controlling multiple electrical circuits. The variants are available in different voltages, operating with a control voltage of 24/48/110/230 V AC, and can handle a contact load of 16 A. Additionally, it complies with CE, UL, and RoHS standards, ensuring the highest safety and environmental adherence in its design and manufacturing.

Available Variants:

Variant Name

SKU

RELAY CP 1C-A24-KIT

SA-CP1C-A24-PM

RELAY CP 1C-A48-KIT

SA-CP1C-A48-PM

RELAY CP 1C-A110-KIT

SA-CP1C-A110-PM

RELAY CP 1C-A230-KIT

SA-CP1C-A230-PM

RELAY CP 1C-A230(G)-KIT

SA-CP1C-A230-G-PM

Contact Characteristics

Contact Data

Ambient Condition

Certification

Mechanical Data

Dimensions

Characteristics

Interface

Coil Data

Socket Contact Characteristics

Commercial Data

Contact Characteristics back to top

Contact form	1 changeover contact
Maximum switching capacity	4000 VA / 480 W
Rated resistive load	16 A - 250 V AC

Contact Data back to top

Contact material	Silver alloy / gold plated contacts
Contact resistance	≤100 mΩ (1 A 6 V DC)
Electical endurance (number of operations)	3 x 10^4 cycles (room temperature 23 ºC, 1.5 s on 1.5 s off, resistive) / NO - 1 x 10^5 cycles (room temperature 23 ºC, 1.5 s on 1.5 s off, resistive) / NC - 5 x 10^4 cycles (room temperature 23 ºC, 1.5 s on 1.5 s off, resistive)
Mechanical endurance (number of operations)	1 x 10^7 cycles

Ambient Condition back to top

Operating Humidity (non-condensing)	30 % ~ 85 % RH
Impact / Shock	Stable operation 98m/s2 / Damage limit 980 m/s2
Vibration	10 Hz ~ 55 Hz, 1 mm dual amplitude
Ambient Temperature (operating)	-40 ºC ~70 ºC

Certification back to top

Certification

CE, UL, RoHS

Mechanical Data back to top

Weight (typ.)

App. 20 g + 41.5 g

Dimensions back to top

Width (mm)	16.5
Height (mm)	42.5

Characteristics back to top

Operate time (at rated voltage)	20 ms max.
Release time (at rated voltage)	20 ms max.
Insulation resistance	1000 MΩ ( 500 V DC)
Dielectric strength (between coil and contacts)	5000 V AC 1min.
Dielectric strength (between contact sets)	3000 V AC 1min.
Dielectric strength (between open contacts)	1000 V AC 1min.

Interface back to top

LED indicator	Yes
Mechanical indicator	No
Test button	No

Coil Data back to top

Max. continuous voltage at 23 ºC	110 % Rated Voltage
Making voltage 23 ºC	80 % Rated voltage guaranteed making
Breaking voltage 23 ºC	30 % Rated voltage guaranteed breaking
Rated power	App. 1.0 VA
Socket coil resistance at 23 ºC	23000 Ω ±10 % at 23 ºC

Socket Contact Characteristics back to top

Rated Current	16 A
Rated Voltage	300 V
Dielectric withstand voltage (coil-contact)	4000 V/S
Dielectric withstand voltage (Intercontact)	2500 V/S
External connection wire	20~14 AWG / 0.5 ~ 2.5 mm^2
