Series CS Relay 2 changeover contacts 24 V DC
RELAY CS 2C-D24-LT-KIT

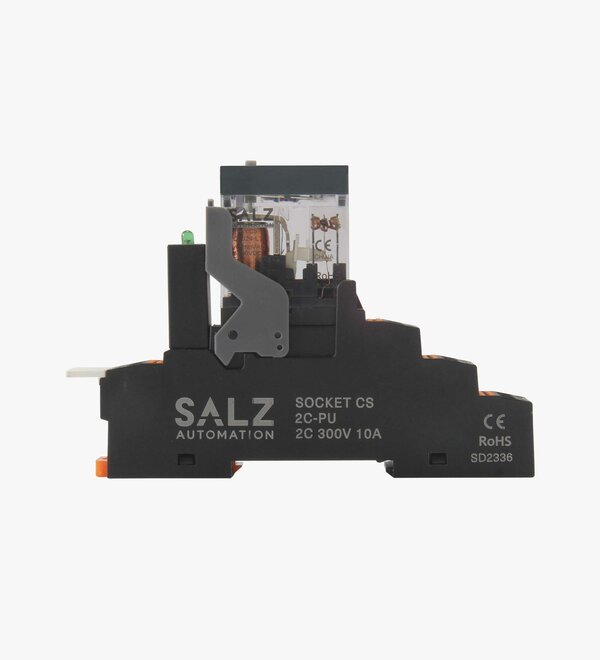

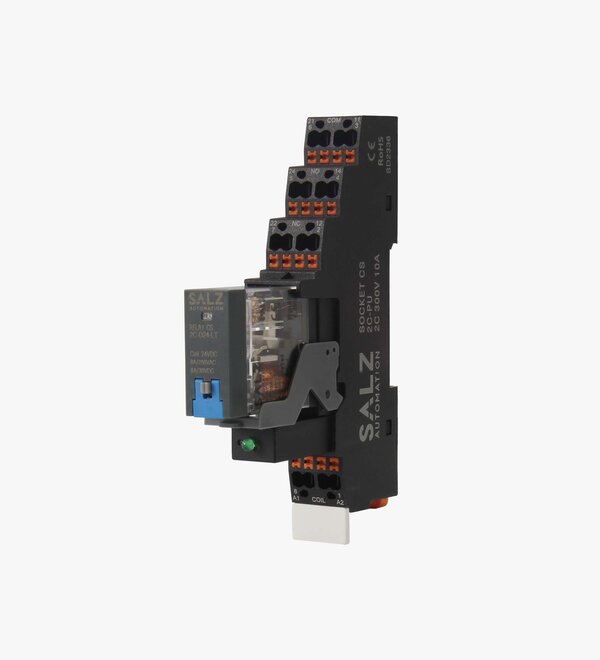

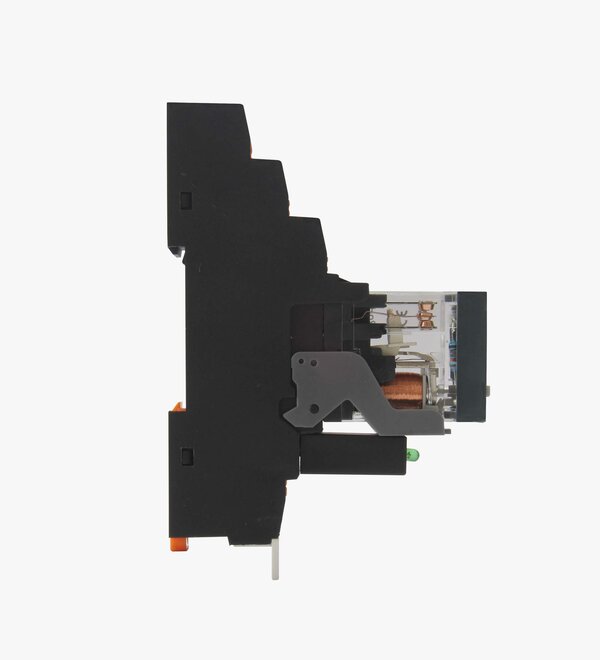

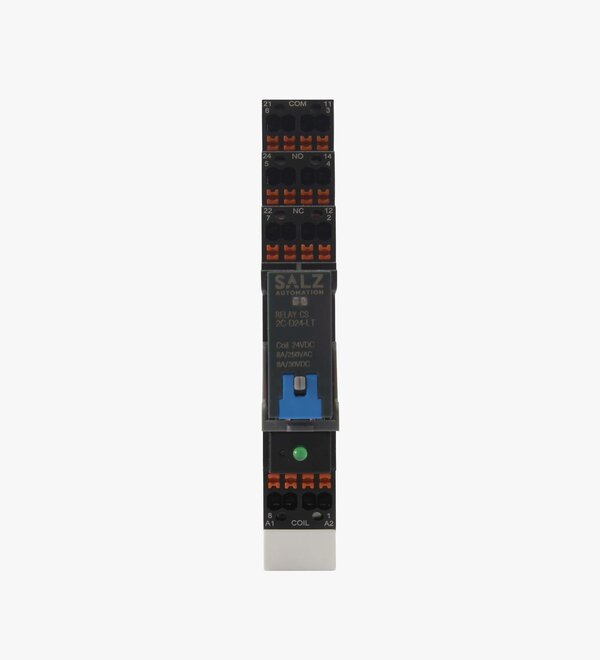

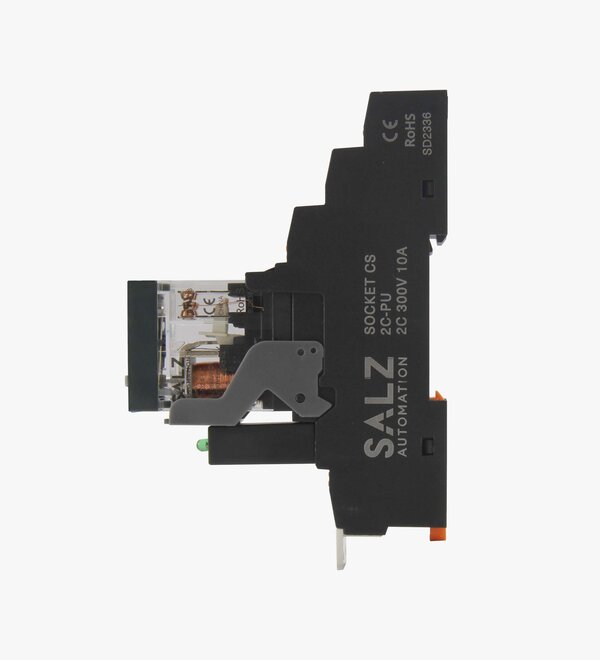

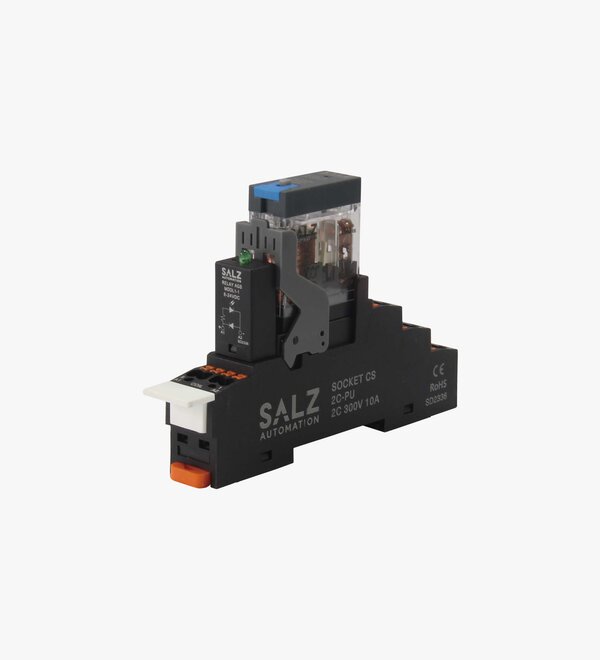

Preassembled relay with 2 changeover contacts and socket with Push-in connection technology
Function2 changeover contacts, control voltage: 24 V DC , contact load: 8 A, LED, mechanical indicator windows, test button, Push-in wiring, 16 mm wide, CE, UL and RoHS compliant
Features- Manufactured by SALZ Automation
- Slim Design
- 8 A switching capability
- Mechanical Indicator Window
- LED Indicator
- Test Button
Additional Information
The preassembled relay RELAY CS 2 DC KIT is a compact combination of a plug-in industrial relay from the CS series with 24 V DC with two changeover contacts and a socket. The socket has push-in connection terminals that simplify the wiring process. The kit is 16 mm wide and suitable for various mounting applications. The two changeover contacts makes it versatile for controlling multiple electrical circuits. The relay operates with a 24 V DC control voltage and is capable of handling a 8 A contact load. The inclusion of an LED and mechanical indicator windows offers visual feedback on the relay's status, while a test button enables manual testing. Additionally, it complies with CE, UL and RoHS standards, ensuring highest safety and environmental adherence in its design and manufacturing.
Manufactured by SALZ Automation
Slim Design
Takes lesser space as the socket is slim desingned.
8 A switching capability
Contact rating 8 A
DIN rail mounting
The socket can be mounted on a DIN rail.
Mechanical Indicator Window
Relay has a mechanical indicator window where the physical movement of the contacts can be observed in real time.
LED Indicator
Relay comes with an LED indicator that indicates the ON status of the relay.
Test Button
Relay has a test button which comes with a temporary position holder.
High insulation capability
High insulation capability of 5 kV surge voltage between input and output
