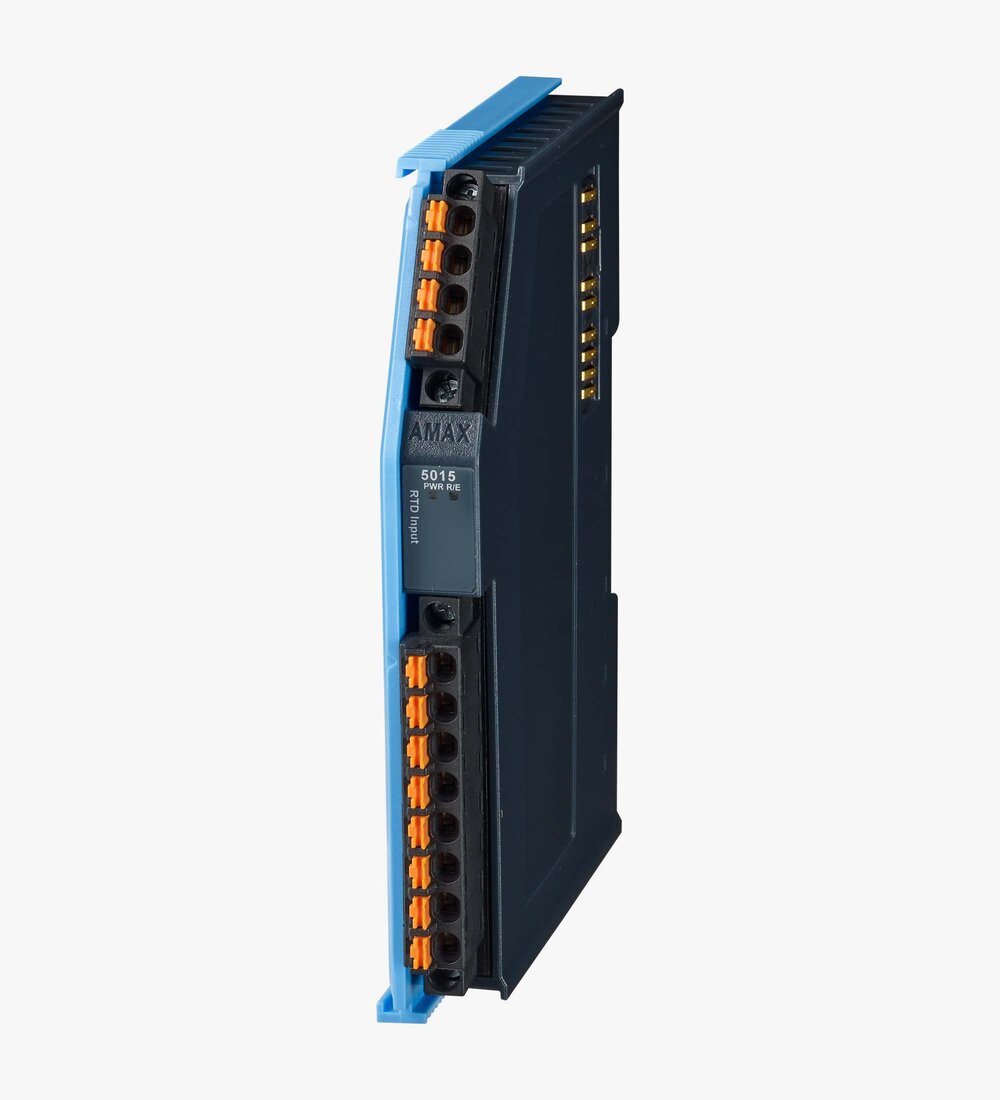

4-Channel RTD (PT100 / PT1000) Input EtherCAT Slice IO Module
IP20 IO AMAX RTD4
4-Channel Temperature Input EtherCAT Slice IO Module, PT100, PT1000, 2 or 3 wire, 16-bit
Function4-ch RTD Temperature Input module, 100Mbps EtherCAT, PT 100, PT 1000, Balco 500, Ni 518, 2- / 3-wire, Burn-out detection, 16-bit
HAVE A QUESTION?SKU/Order No.: SA-AMAX-5015-A
Additional Information

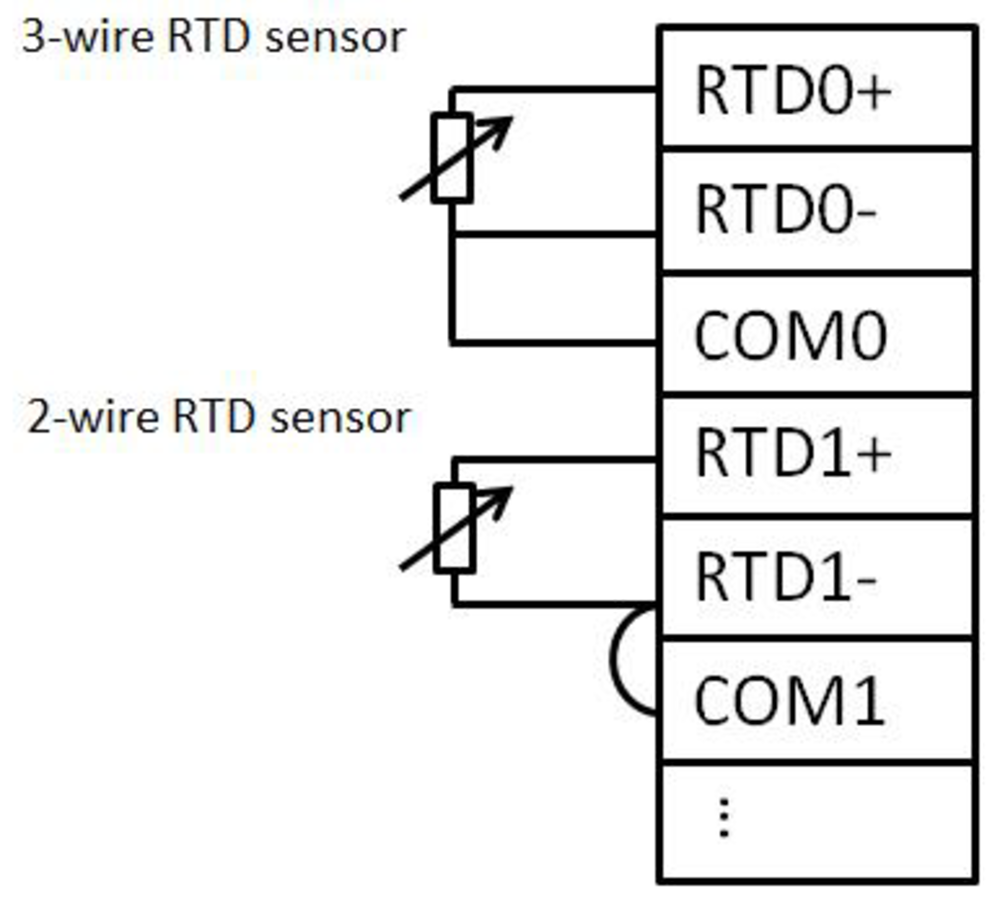

The AMAX-5015 is a 16-bit, 4-channel RTD input module that features programmable input ranges on all channels. It can handle 2- or 3 wire connected PT100, PT1000, Balco 500 and Ni 518 temperature sensors. This module is an extremely cost-effective solution for industrial measurement and monitoring applications. Its opto-isolated inputs provide 2,000 VDC of isolation between the analog input and the module, protecting the module and peripherals from damage due to high input line voltage.
