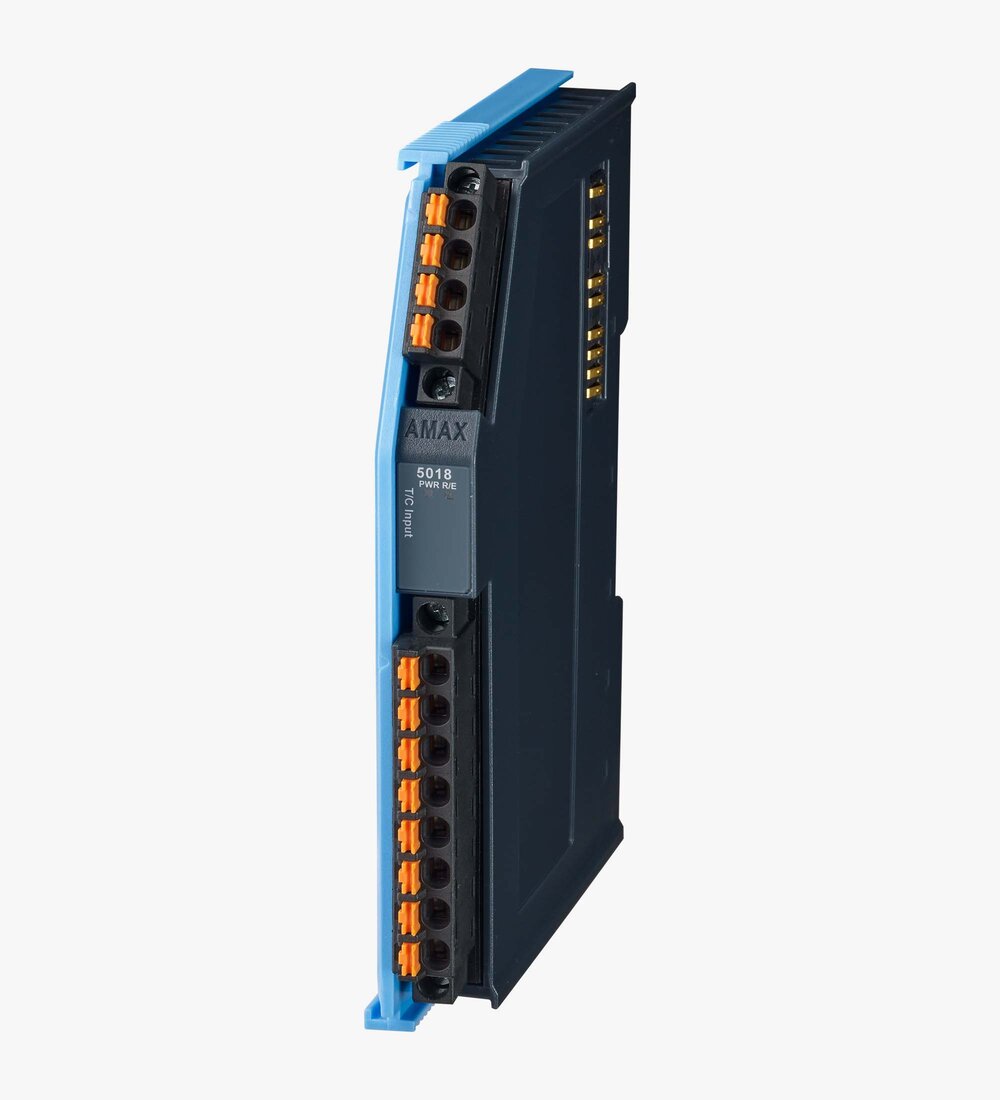

6-Channel Thermocouple Input EtherCAT Slice IO Module

IP20 IO AMAX AI6-TC

6-Channel Thermocouple Input EtherCAT Slice IO Module, Type: J, K, T, E, R, S, B type, ±2.5 V, 16-bit

Function

6 Differential Thermocouple Input module, 100Mbps EtherCAT, Burn-out Detection, Type: J, K, T, E, R, S, B type, ±2.5 V, 16-bit

HAVE A QUESTION?
User Manual AMAX-50xx I/O-Modules Download

SKU/Order No.: SA-AMAX-5018-A

CE Declaration Mark

Additional Information

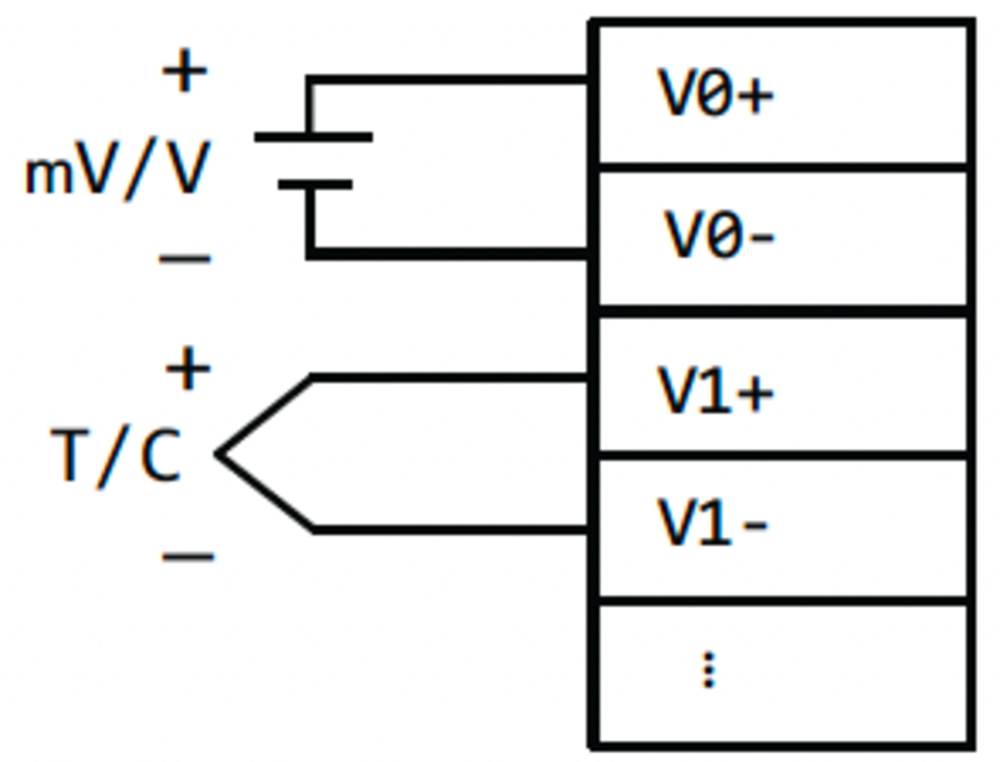

The AMAX-5018 is a 16-bits 6-channel thermocouple module, which supports: J, K, T, E, R, S, B type thermocouple and multi-range voltage input (±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V), each channel supports open load detection. The module provides 2000 VDC optical isolation, if any surge voltage or current inputs the channel, the whole system (other modules or control unit) will not be damaged.
