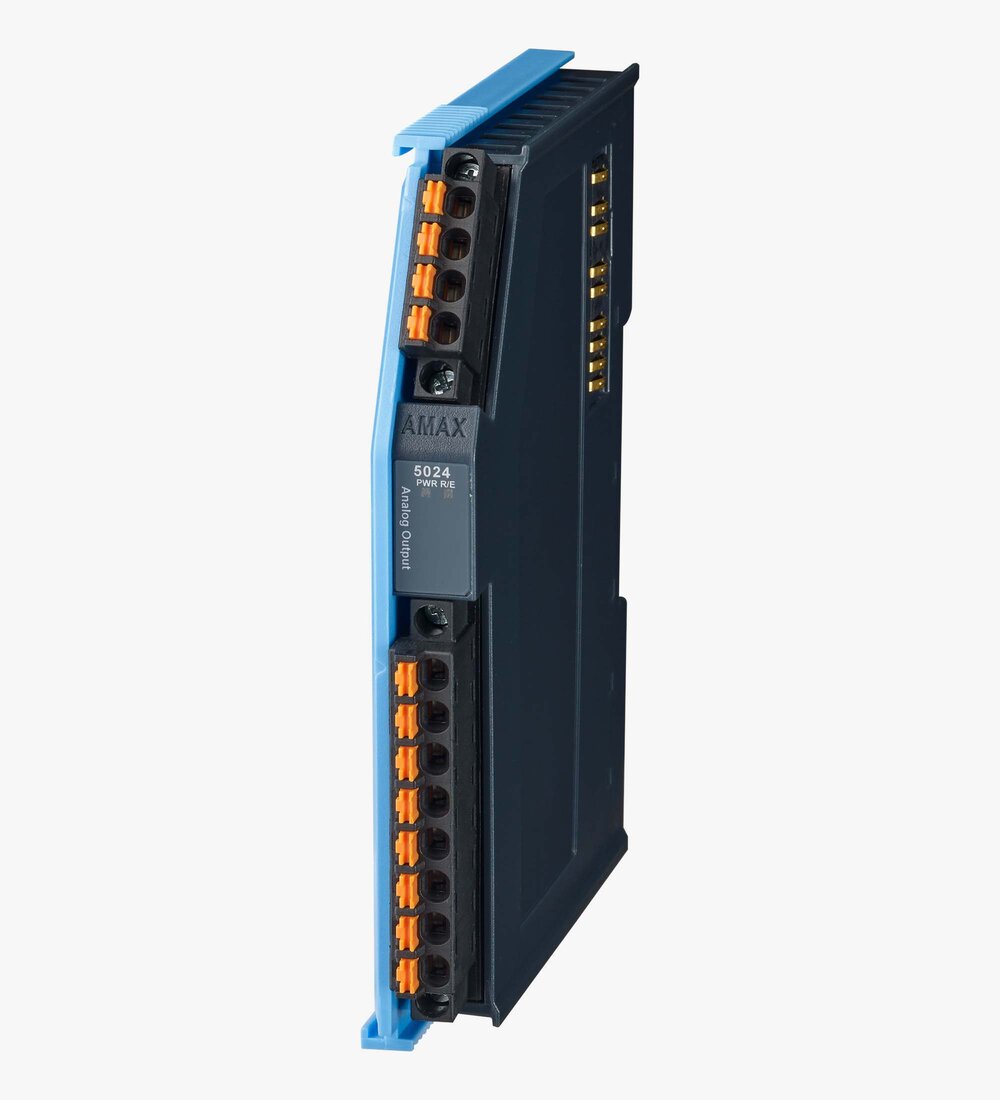

4-Channel Analog Output EtherCAT Slice IO Module

IP20 IO AMAX AO4

4-Channel Analog Output EtherCAT Slice IO Module, 0...5 V, 0...10 V, ±5 V, ±10 V, 0...20 mA, 4...20 mA, 16-bit

Function

4 differential channel Voltage Input module, 100Mbps EtherCAT, 0...5 V, 0...10 V, ±5 V, ±10 V, 0...20 mA, 4...20 mA, 16-bit

HAVE A QUESTION?

SKU/Order No.: SA-AMAX-5024-A

CE Declaration Mark

Additional Information

The AMAX-5024 is a 16-bit, 4-channel analog output module that provides programmable output ranges on every channel, and different channels can be configured using different ranges. The module provides 2000 VDC optical isolation, if any high voltage or current damage the channels, the whole system (other modules or control unit) will not be damaged.
