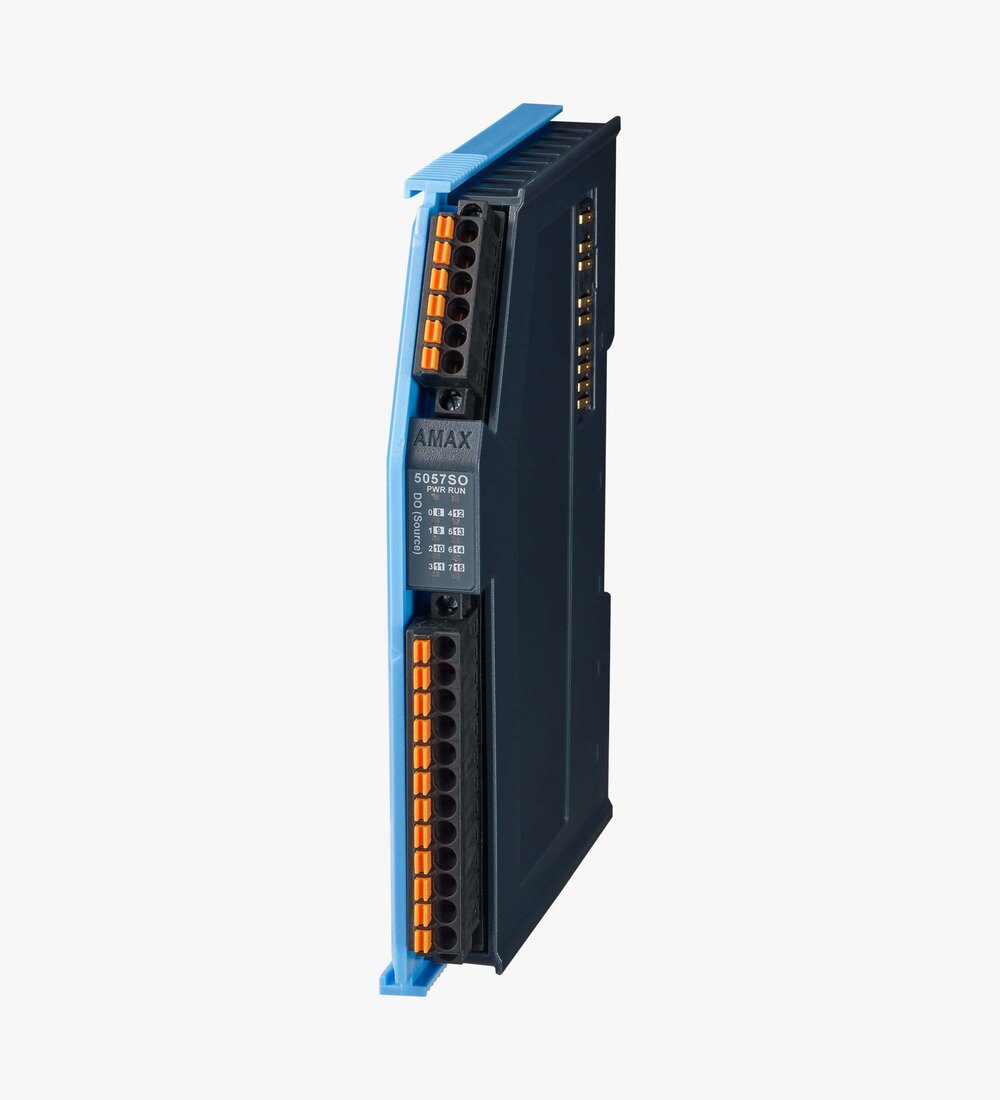

16-Channel Digital Output EtherCAT Slice IO Module (Source Type)
IP20 IO AMAX DO16 PNP
16-Channel Digital Output EtherCAT Slice IO Module, 24VDC, 0.5 A (Source type, PNP, positive switching)
Function16 channel output (Source Type), 100Mbps EtherCAT, Removable push-in terminals, 24V DC, 0.5 A, PNP
HAVE A QUESTION?SKU/Order No.: SA-AMAX-5057SO-A2
Additional Information

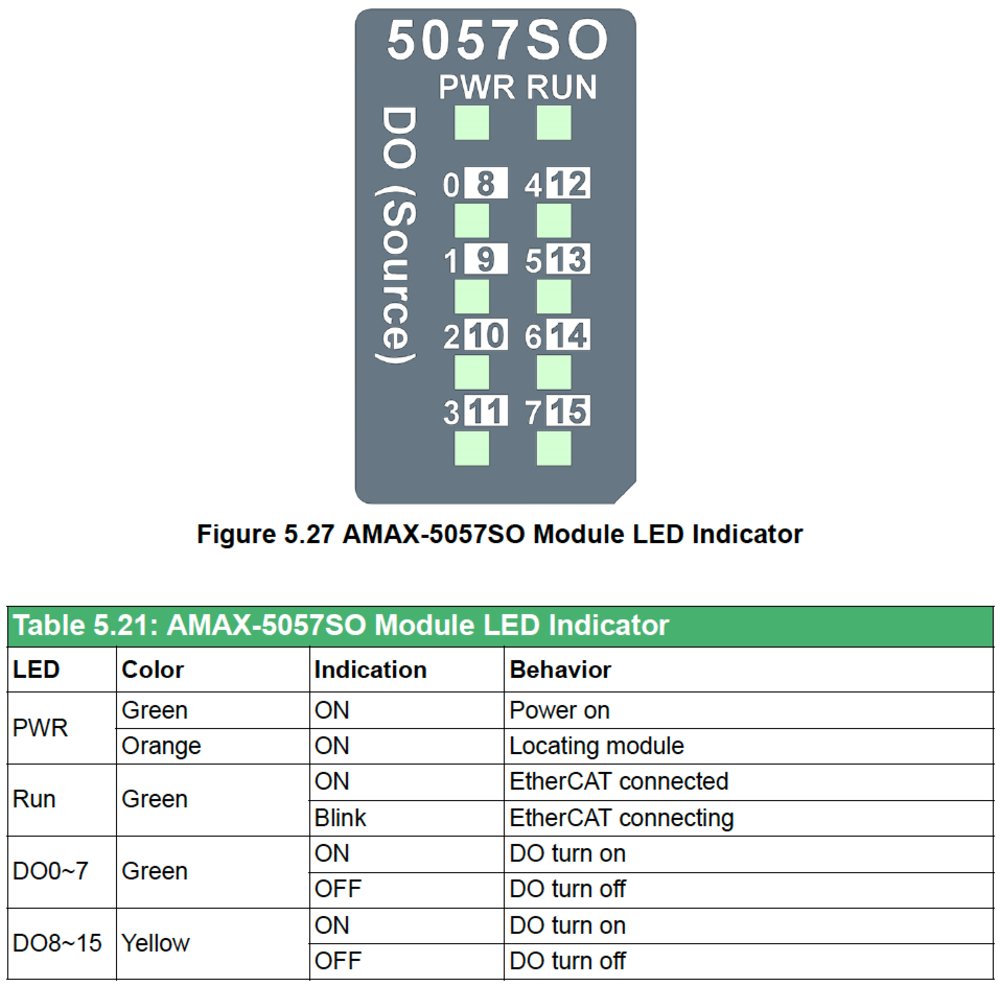

The AMAX-5057SO module features 16 digital output (source) channels. The digital output channels offer and LED to indicate digital status. The module provides 2,000 VDC optical isolation between channels. If any high voltage or current damage the channels, the whole system (other modules, and control unit) won't be affected because it is already isolated.
