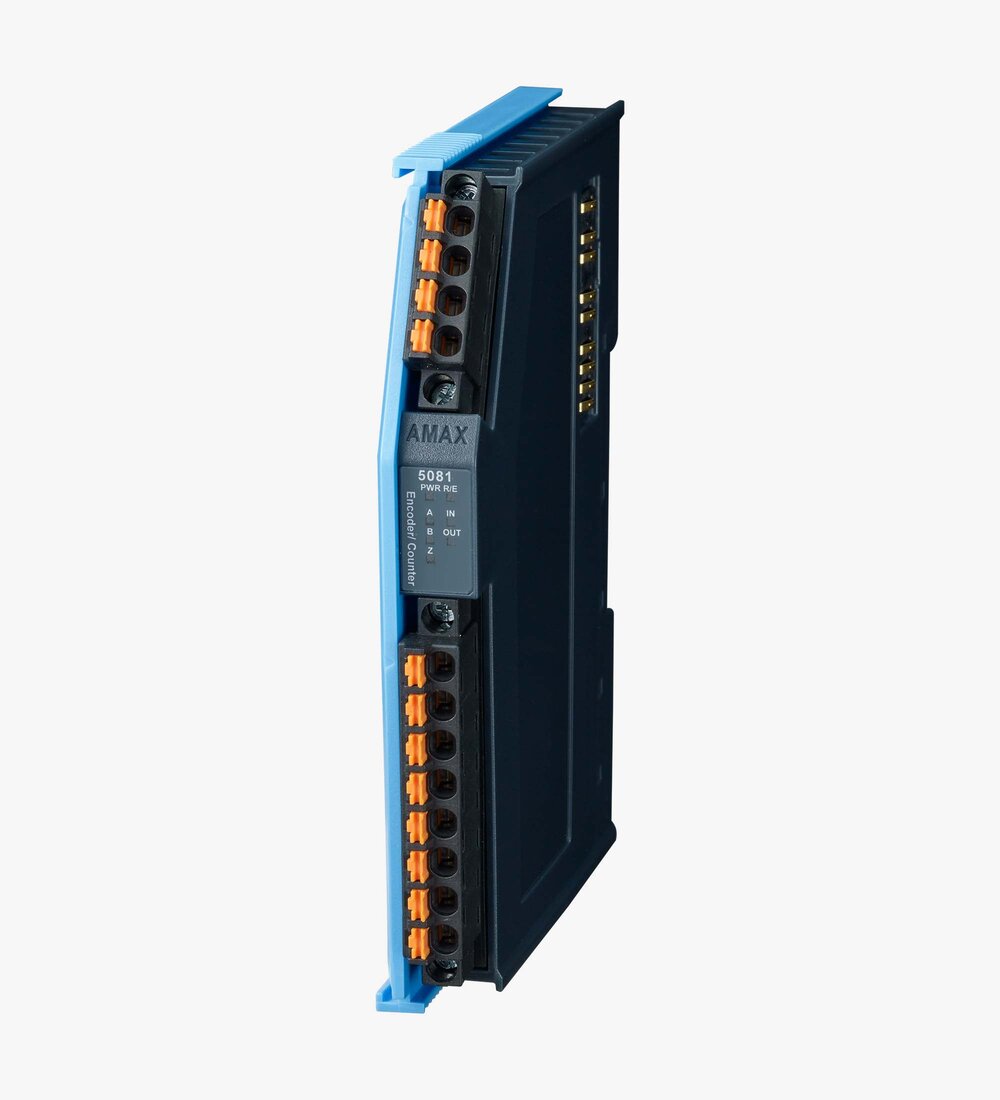

1-Channel TTL/RS422 Differential Signal Encoder/Counter Interface Slice IO Module

IP20 IO AMAX DI-TTL-RS422

1-Channel TTL/RS422 Differential Signal Encoder/Counter Interface Slice IO Module, 5 VDC, 10MHz

Function

1-ch Input, 32-bit counting range, 100Mbps EtherCAT, Counter Mode: Encounter x4, Pulse/Dir, CW/ CCW, Pulse/Gate, Pulse Train Output, Removable push-in terminals

HAVE A QUESTION?
User Manual AMAX-50xx I/O-Modules Download

SKU/Order No.: SA-AMAX-5081-A

CE Declaration Mark

Additional Information

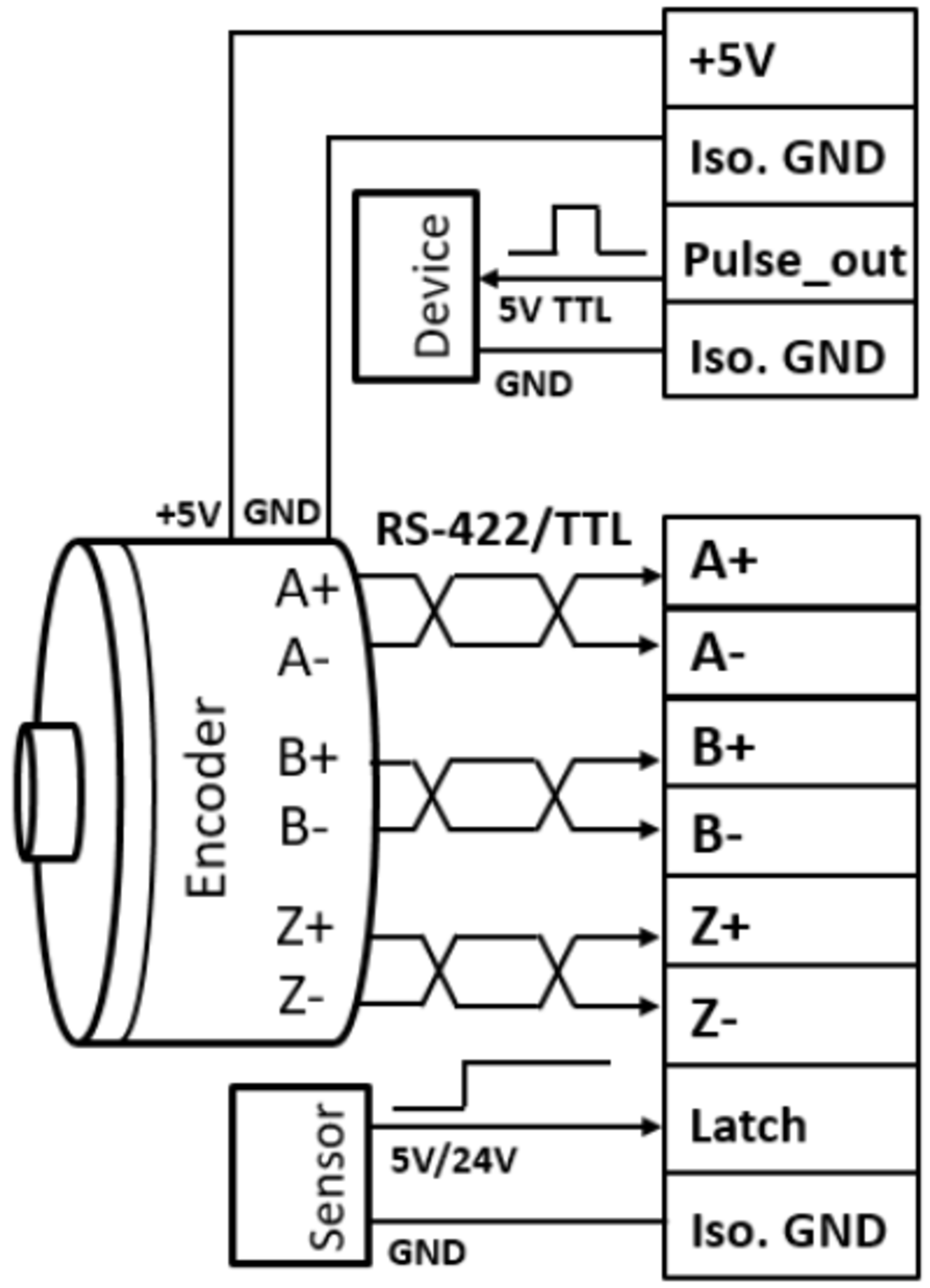

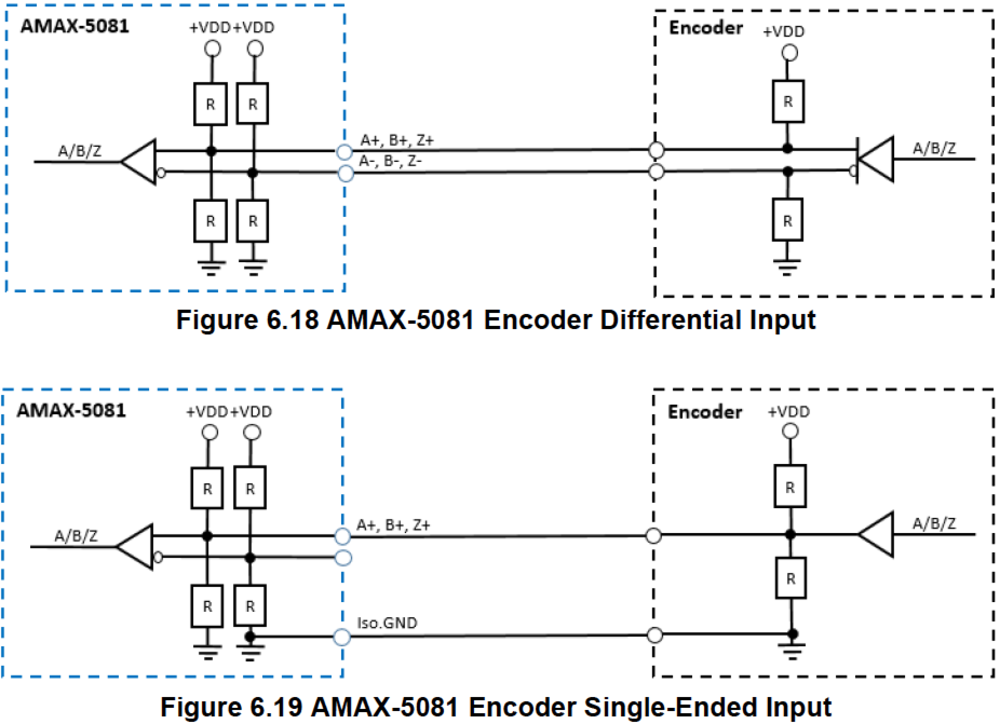

The AMAX-5081 is a 32-bit 1-ch counter/encoder module for incremental encoders, which supports TTL or RS422 differential input with up to 10 MHz input frequency. The module provides 2000 VDC optical isolation, if any high voltage or current damage the channels, the whole system (other modules or control unit) will not be damaged.
