Series GS Relay 4 changeover contacts 24 V DC

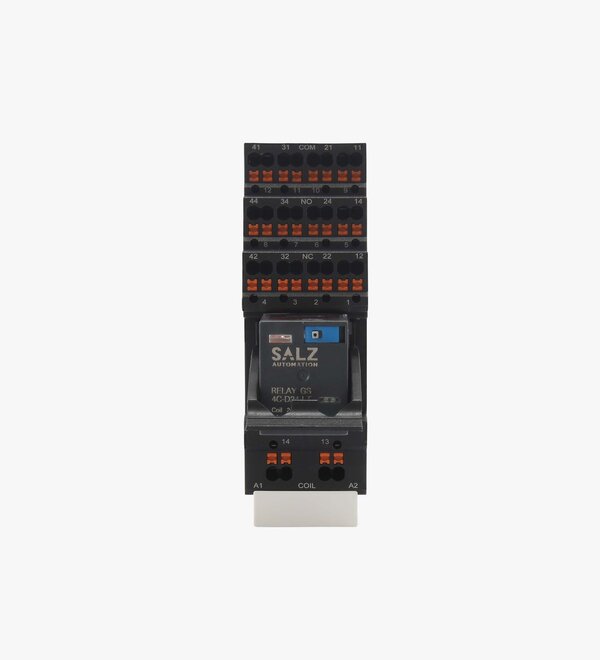

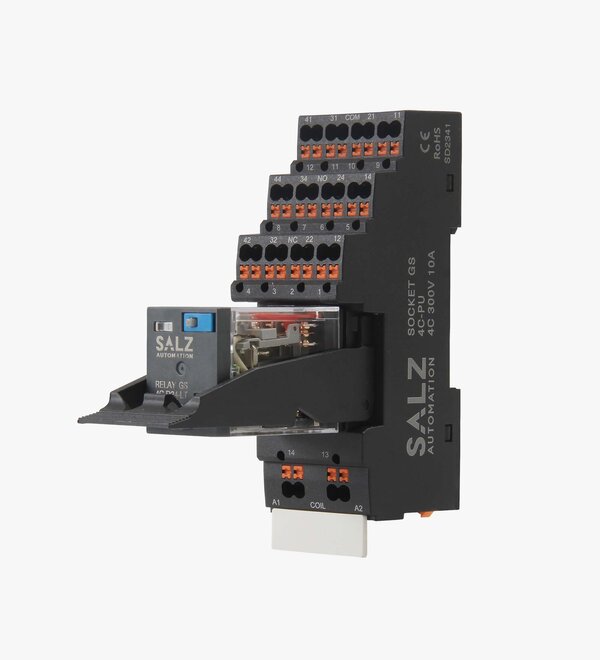

RELAY GS 4C-D24-LT-KIT

Preassembled relay with 4 changeover contacts and socket with Push-in connection technology

Function

4 changeover contacts, control voltage: 24 V DC, contact load: 5 A, LED, mechanical indicator window, test button, push-in wiring, 30.5 mm wide, CE and RoHS compliant

Features

Manufactured by SALZ Automation
Slim Design
5 A switching capability
Mechanical Indicator Window
LED Indicator
Test Button

HAVE A QUESTION?

Datasheet Download

SKU/Order No.: SA-GS4C-D24-T-PM

Additional Information

The preassembled relay RELAY GS 4 DC KIT is a comprehensive solution featuring a plug-in industrial relay from the GS series with 24 V DC and four changeover contacts. Equipped with push-in connection terminals, the socket streamlines the wiring process, while the four changeover contacts offer versatility in controlling multiple electrical circuits. Operating with a 24 V DC control voltage, the relay can handle a 5 A contact load with ease.

For user convenience, the relay features an LED and mechanical indicator window, providing visual feedback on its status, along with a test button for manual testing. With a width of 30.5 mm, the kit is suitable for various mounting applications. Furthermore, the RELAY GS 4 DC KIT complies with CE and RoHS standards, ensuring the highest levels of safety and environmental adherence in its design and manufacturing.

Contact Characteristics

Contact Data

Ambient Condition

Certification

Mechanical Data

Dimensions

Characteristics

Interface

Coil Data

Socket Contact Characteristics

Commercial Data

Contact Characteristics back to top

Contact form	4 changeover contacts
Maximum switching capacity	1250 VA / 150 W
Rated resistive load	5 A - 30 V DC

Contact Data back to top

Contact material	Silver alloy / gold plated contacts
Contact resistance	≤ 100 mΩ (1 A 6 V DC)
Electical endurance (number of operations)	2 x 10^5 cycles (room temperature 23 ºC, 2s on 1s off, resistive) / 1 x 10^5 cycles (high temperature 55 ºC, 1s on 1s off, resistive)
Mechanical endurance (number of operations)	1x 10^7 cycles

Ambient Condition back to top

Operating Humidity (non-condensing)	30 % ~ 85 % RH
Impact / Shock	Stable operation 98 m/s2 / Damage limit 980 m/s2
Vibration	10 Hz ~ 55 Hz, 1 mm dual amplitude
Ambient Temperature (operating)	-40 ºC ~ 70 ºC

Certification back to top

Certification

CE, RoHS

Mechanical Data back to top

Weight (typ.)

App. 35 g + 71.5 g

Dimensions back to top

Width (mm)	26.5
Height (mm)	92.5

Characteristics back to top

Operate time (at rated voltage)	20 ms max.
Release time (at rated voltage)	20 ms max.
Insulation resistance	1000 MΩ ( 500 V DC)
Dielectric strength (between coil and contacts)	1500 V AC 1 min.
Dielectric strength (between contact sets)	1000 V AC 1 min.
Dielectric strength (between open contacts)	1000 V AC 1 min.

Interface back to top

LED indicator	Yes
Mechanical indicator	Yes
Test button	Yes

Coil Data back to top

Socket coil resistance at 23 ºC	630 Ω ±10 % at 23 ºC
Max. continuous voltage at 23 ºC	110 % Rated Voltage
Making voltage 23 ºC	75 % Rated voltage guaranteed making
Breaking voltage 23 ºC	10 % Rated voltage guaranteed breaking
Rated power	App. 0.9 W

Socket Contact Characteristics back to top

Rated Voltage	300 V
Rated Current	10 A
External connection wire	20~16 AWG / 0.5 ~ 1.5 mm^2
Dielectric withstand voltage (Intercontact)	2500 V/S
Dielectric withstand voltage (coil-contact)	4000 V/S
