Series CS Relay 2 changeover contacts 24/48/110/230 V AC
RELAY CS 2 AC
Industrial Relay with 2 changeover contacts and insertion type
Function
2 changeover contacts, 24/48/110/230 V AC variants, 8 A contact load, LED, 12.7 mm wide, CE, RoHS and UL compliant
Features
Manufactured by SALZ Automation
8 A switching capability
LED Indicator
High insulation capability
HAVE A QUESTION?
SKU/Order No.:
SA-CS2C-A...
Additional Information
This compact industrial relay from the CS series has two changeover contacts and is therefore versatile for controlling multiple circuits. The variants are available in different voltages, which operate with a control voltage of 24/48/110/230 V AC and can handle a contact load of 8 A. The integrated LED provides visual feedback on the status of the relay. The relay is compatible with the CS socket, which simplifies the wiring process. With a width of 12.7 mm, the single relay is suitable for various mounting applications. It also complies with CE, RoHS and UL standards, ensuring safety and environmental compatibility in design and manufacture.
Available Variants:

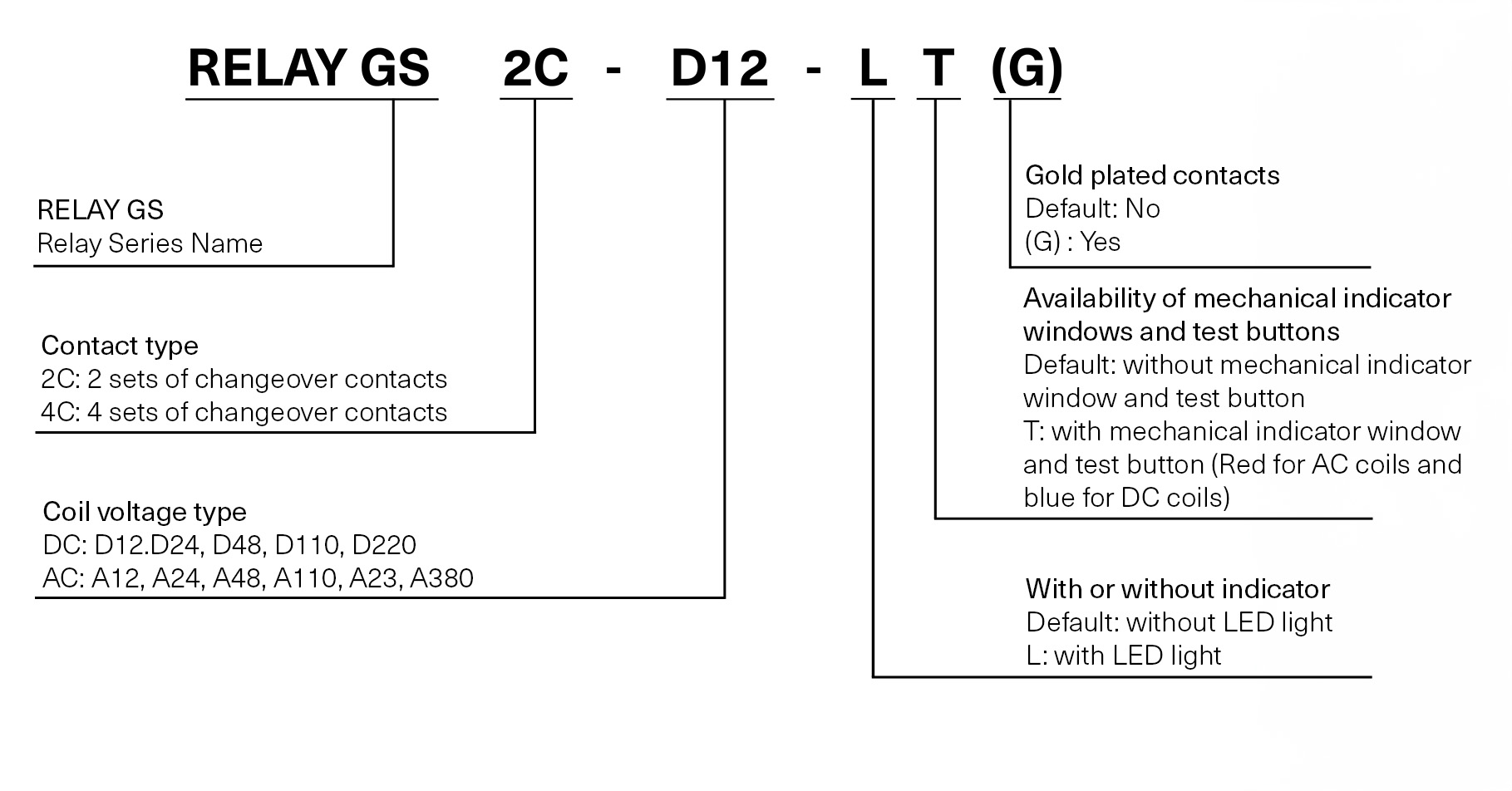

Variantenname
SKU
RELAY CS 2C-A24-L
SA-CS2C-A24
RELAY CS 2C-A48-L
SA-CS2C-A48
RELAY CS 2C-A110-L
SA-CS2C-A110
RELAY CS 2C-A230-L
SA-CS2C-A230
Contact Characteristics
back to top
Contact form
2 sets of contacts
Maximum switching capacity
2000VA/2400W
Rated resistive load
8A - 250VAC
Contact Data
back to top
Contact material
Silver alloy / gold plated contacts
Contact resistance
≤100mΩ (1A 6VDC)
Electical endurance (number of operations)
3 x 10^5 cycles (room temperature 23ºC, 1s on 1s off, resistive) /NO-NC 1 x 10^5 cycles (high temperature 55ºC, 1s on 1s off, resistive)
Mechanical endurance (number of operations)
1x 10^7 cycles
Ambient Condition
back to top
Operating Humidity (non-condensing)
30% ~ 85% RH
Impact / Shock
Stable operation 98m/s2 / Damage limit 980m/s2
Vibration
10Hz ~ 55Hz, 1mm dual amplitude
Ambient Temperature (operating)
-40 ºC ~ 55 ºC
Certification
back to top
Certification
CE, UL, RoHS, Tüv
Mechanical Data
back to top
Dimensions
back to top
Width (mm)
16
Height (mm)
28.8
Depth (mm)
34.1
Characteristics
back to top
Operate time (at rated voltage)
20ms max.
Release time (at rated voltage)
20ms max.
Insulation resistance
1000MΩ ( 500VDC)
Dielectric strength (between coil and contacts)
5000VAC 1min.
Dielectric strength (between contact sets)
3000VAC 1min.
Dielectric strength (between open contacts)
1000VAC 1min.
Interface
back to top
LED indicator
Yes
Mechanical indicator
No
Test button
No
Coil Data
back to top
Max. continuous voltage at 23 ºC
110% Rated Voltage
Making voltage 23 ºC
80% Rated voltage guaranteed making
Breaking voltage 23 ºC
30% Rated voltage guaranteed breaking
Rated power
App. 1.0VA
Commercial Data
back to top
Customs Tariff Number
85364190
Manufactured by SALZ Automation
8 A switching capability
Contact rating 8 A
LED Indicator
Relay comes with an LED indicator that indicates the ON status of the relay.
High insulation capability
High insulation capability of 5 kV surge voltage between input and output
