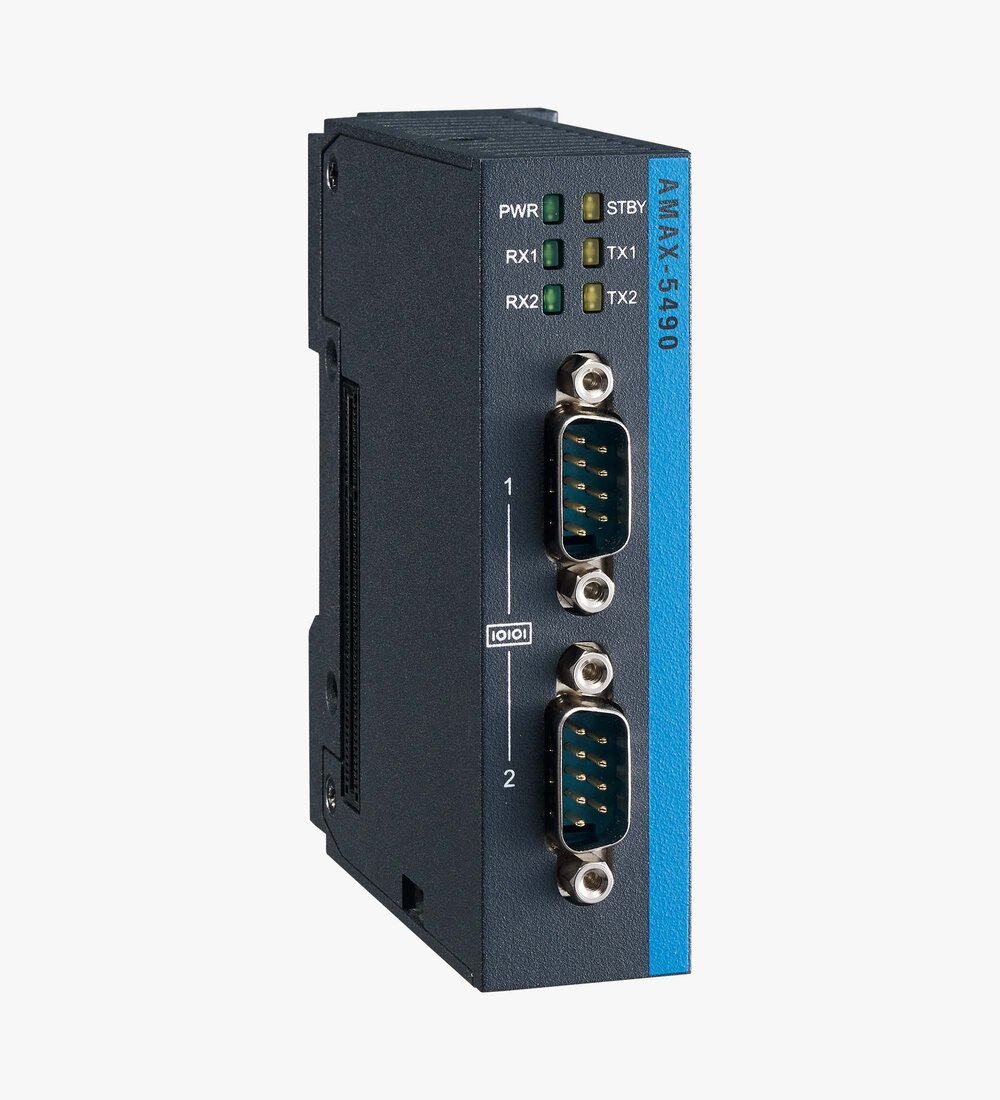

Isolated 2-Port RS-232/422/485 Communications Module
IP20 PCI 2-SERIAL
Isolated RS-232/422/485 Communications Module with 2-Port
Function
Serial communication, flow control, FIFO 256 bytes
HAVE A QUESTION?
SKU/Order No.:
SA-AMAX-5490-A
Additional Information
The SA-AMAX-5490-A Peripheral Component Interconnect Express expansion module for controller Industrial PCs targets increased communication capability. It is an isolated 2-Port RS-232/422/485 Communications Module. Our modules offer low latency, a higher data transfer rate, and a smooth connection to one or more peripheral devices.
Input Data
back to top
Power Consumption (max.)
2W@24VDC
Ports
2-port RS-232/422/485
Interface
back to top
LED Panel
PWR, Standby, TX1, RX1, TX2, RX2
Mechanical Data
back to top
Weight (typ.)
200g
Housing
Aluminum Alloy housing
Certification
back to top
Certification
CE, FCC class A
Ambient Condition
back to top
Ambient Temperature (start-up type tested)
-10 ... 60°C (14 ... 140°F)
Ambient Temperature (storage/transport)
-40 ... 85°C (-40 ... 185 °F)
Operating Humidity (non-condensing)
5~ 95% RH @ 40°C, non-condensing
Communication
back to top
Data Bits
5, 6, 7, 8
Stop Bits
1, 1.5, 2
Parity
None, even, odd
Baud Rate
50 bps ... 230.4 kbps
Data Signals
RS-232: TxD, RxD, GND RS-422: Tx+, Tx-, Rx+, RX RS-485: Data+, Data-
FIFO
256 bytes
IEEE Standards
back to top
IEEE 802.3X
Flow Control: Xon/Xoff
