Linux Panel PC (16:9) with 4GB RAM

Panel-PC-L-A53-04-64-02-..-..

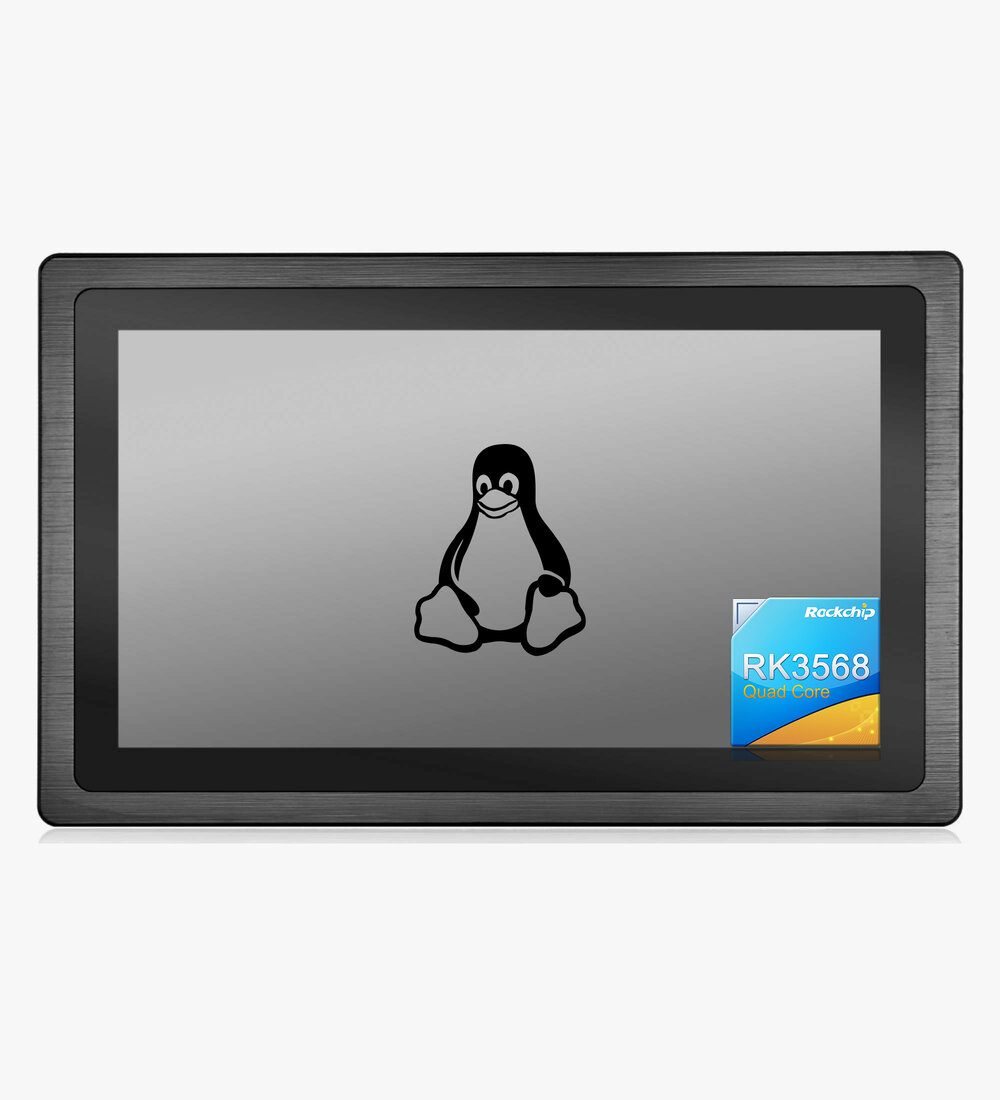

Panel-PC-L-A53-04-64-02-00-00 is a Linux industrial panel pc with a capacitive 16:9 TFT LCD touchscreen and pre-installed Micro-Browser. Power Supply 24V DC.

Function

TFT LCD WebPanel, 24V DC power supply, Debian11, IP65 compact fanless housing, processor:Rockchip RK3568 processor, Quad-core/4-Wire 2.0 GHz CPU, Wi-fi

Features
HAVE A QUESTION?
Datasheet_Panel-PC-L-A53-04-64-02-00-00 Download

SKU/Order No.: SA-P-L-A53-04-64-02-..-..

CE Declaration Mark

Additional Information

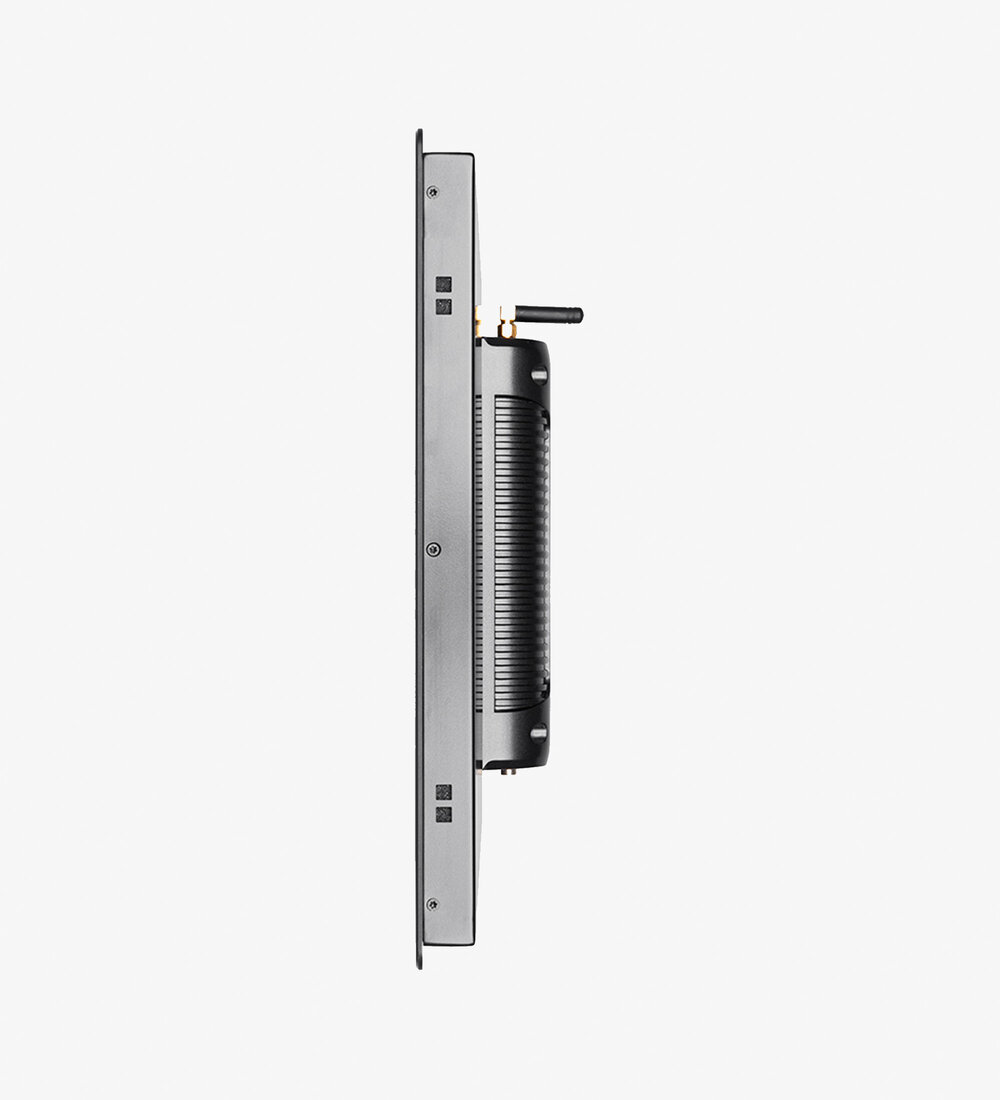

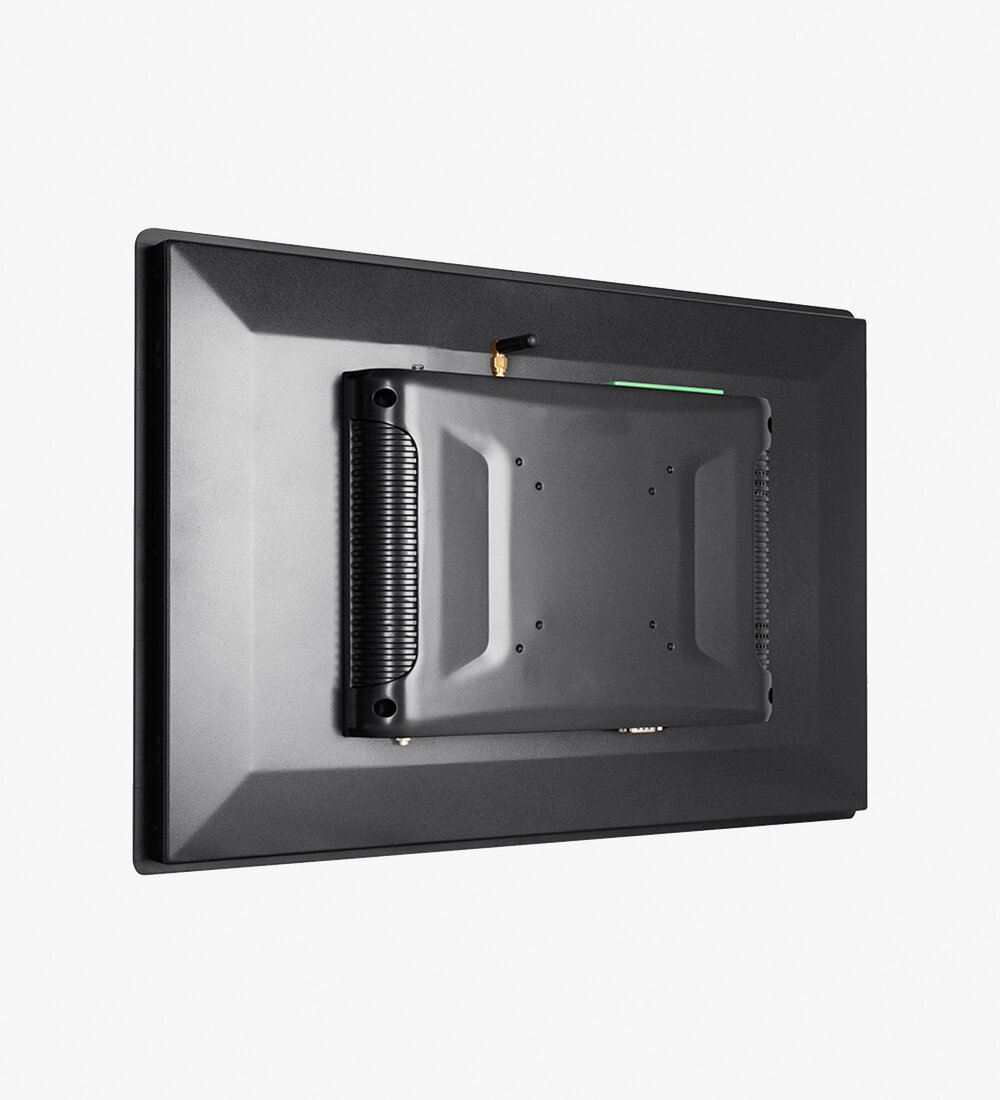

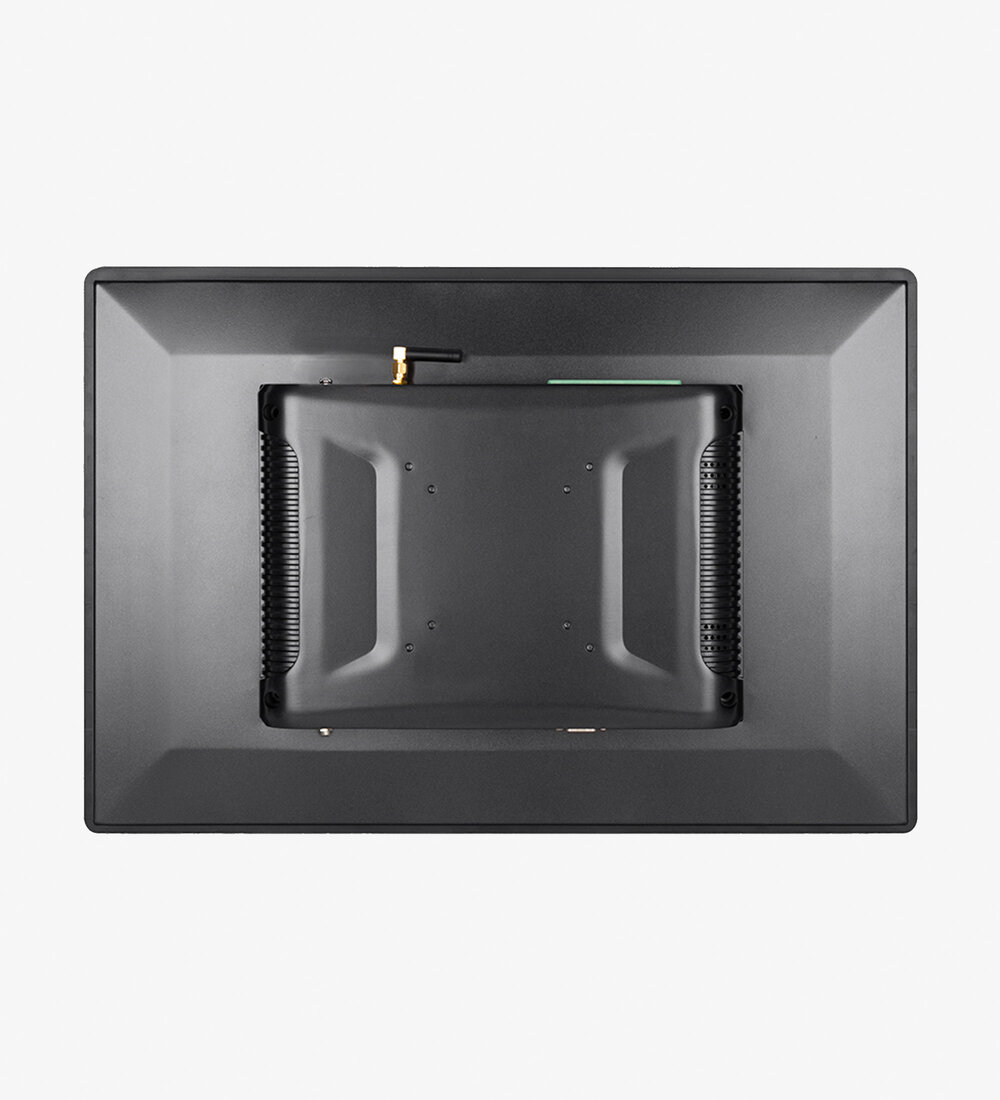

The Panel PC with a 16:9 aspect ratio, comes with a pre-installed Micro Browser and is designed to seamlessly connect controllers with their web server (e.g., CODESYS V3 web server). The setup and operation of the web browser are intuitive and straightforward. Equipped with integrated WiFi and Bluetooth interfaces, this device supports a wide range of applications. Its front panel is IP65-rated, and the aluminum housing provides a compact, robust design. The projected capacitive touch enables multi-touch functionality for smooth user interaction.

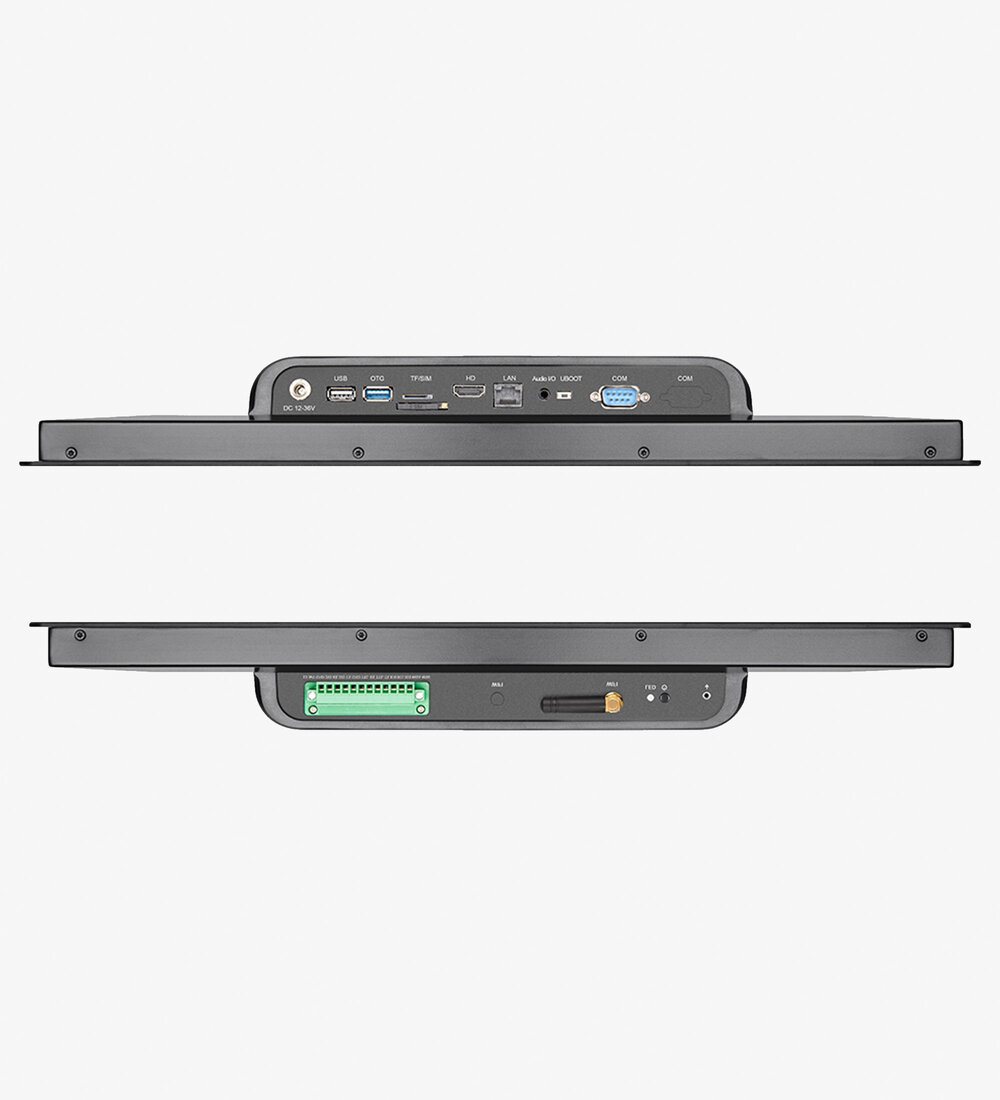

This 24V DC Panel PC series is powered by a high-performance Rockchip RK3568 processor, featuring a Quad-Core/4-Wire 2.0GHz CPU. It includes 4GB DDR4 RAM and 64GB eMMC storage, ensuring responsive and efficient operation. Connectivity options include onboard Wi-Fi, USB-OTG, TF/SIM, LAN, COM, Audio I/O, HDMI, and a 2-pin connector for power supply.

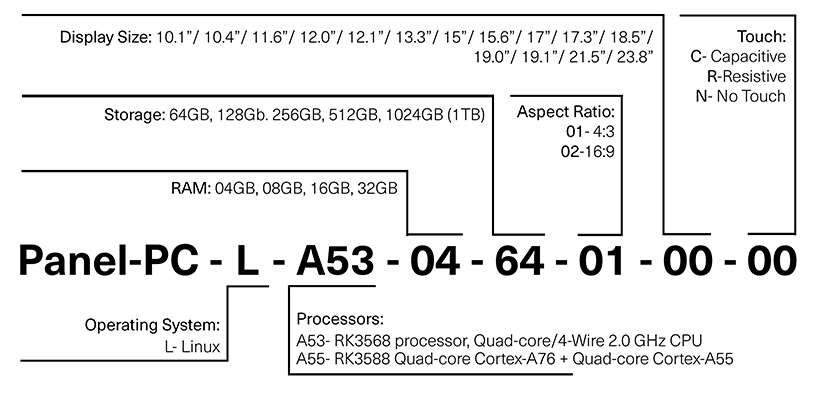

The WebPanels are available in display sizes ranging from 10" to 24", with the option of projected capacitive touch, offering versatility for various industrial and commercial applications. For more details on how to specify and order the exact product configuration, please refer to the naming convention image provided below.



asset_image
