1-port Isolated RS-232/422/485 Communication EtherCAT Slice IO Module

IP20 IO AMAX RS-232/422/485

1-port Isolated RS-232/422/485 Communication EtherCAT Slice IO Module, 24 VDC, UART (RS-232, RS-422, RS-485), Modbus RTU Client

Function

1-ch Input, RS-232/422/485 communication, TxD and RxD channels, full/half-duplex, UART and Modbus RTU to EtherCAT interfaces, baud rates from 1,200 to 115,200 bps, Removable push-in terminals

HAVE A QUESTION?
User Manual AMAX-50xx I/O-Modules Download

SKU/Order No.: SA-AMAX-5090-A

CE Declaration Mark

Additional Information

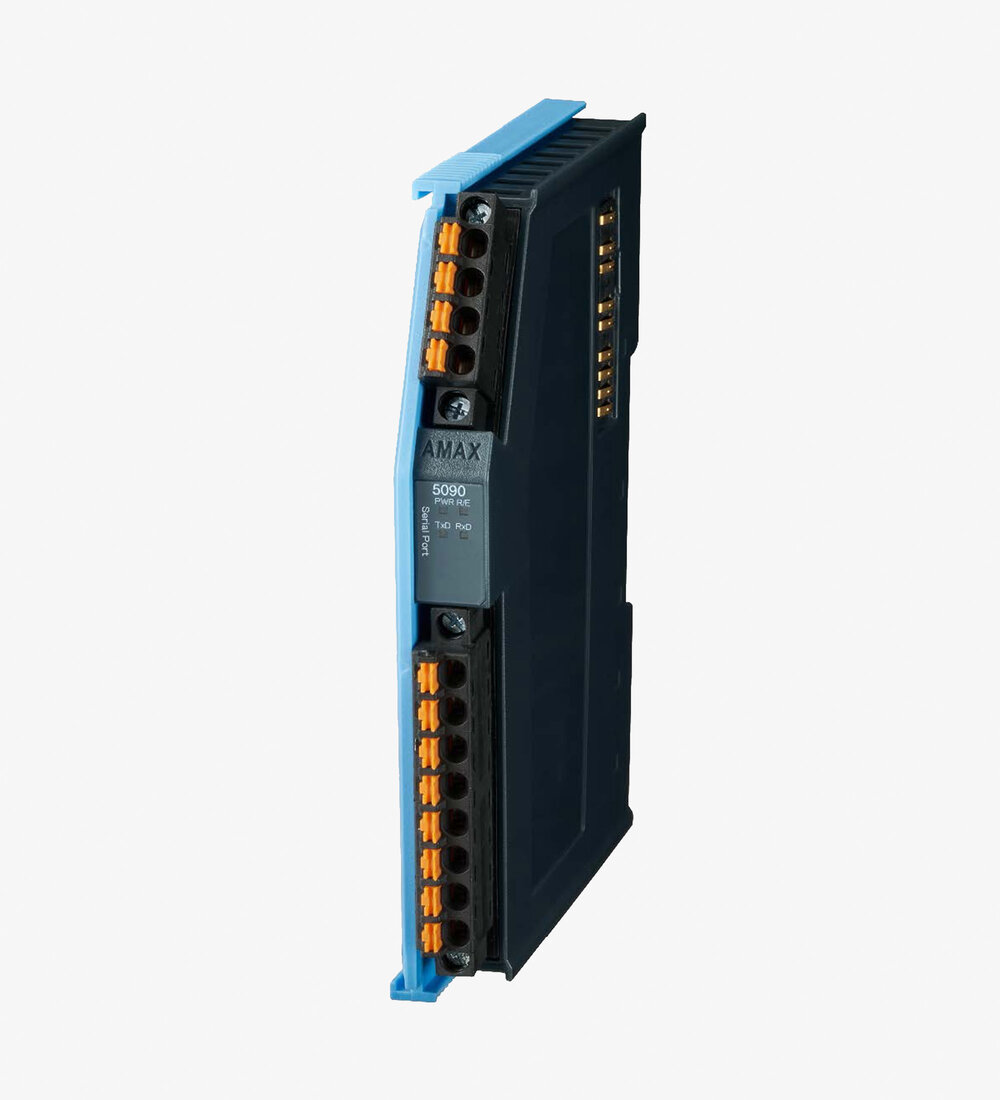

The AMAX-5090 is a 1-port isolated RS-232/422/485 communication EtherCAT Slice IO module. It supports RS-232, RS-422, and RS-485 communication, making it adaptable to various industrial applications. With TxD and RxD channels and full/half-duplex capabilities, it ensures seamless and reliable data transmission. The module features interfaces for UART and Modbus RTU to EtherCAT, simplifying integration into existing systems. It boasts robust performance with a 1,000-byte receive and transmit buffer and supports a wide range of baud rates from 1,200 to 115,200 bps, guaranteeing efficient and high-speed data processing. Built for demanding environments, the AMAX-5090 operates in temperatures ranging from -25°C to 60°C and complies with RoHS standards.
