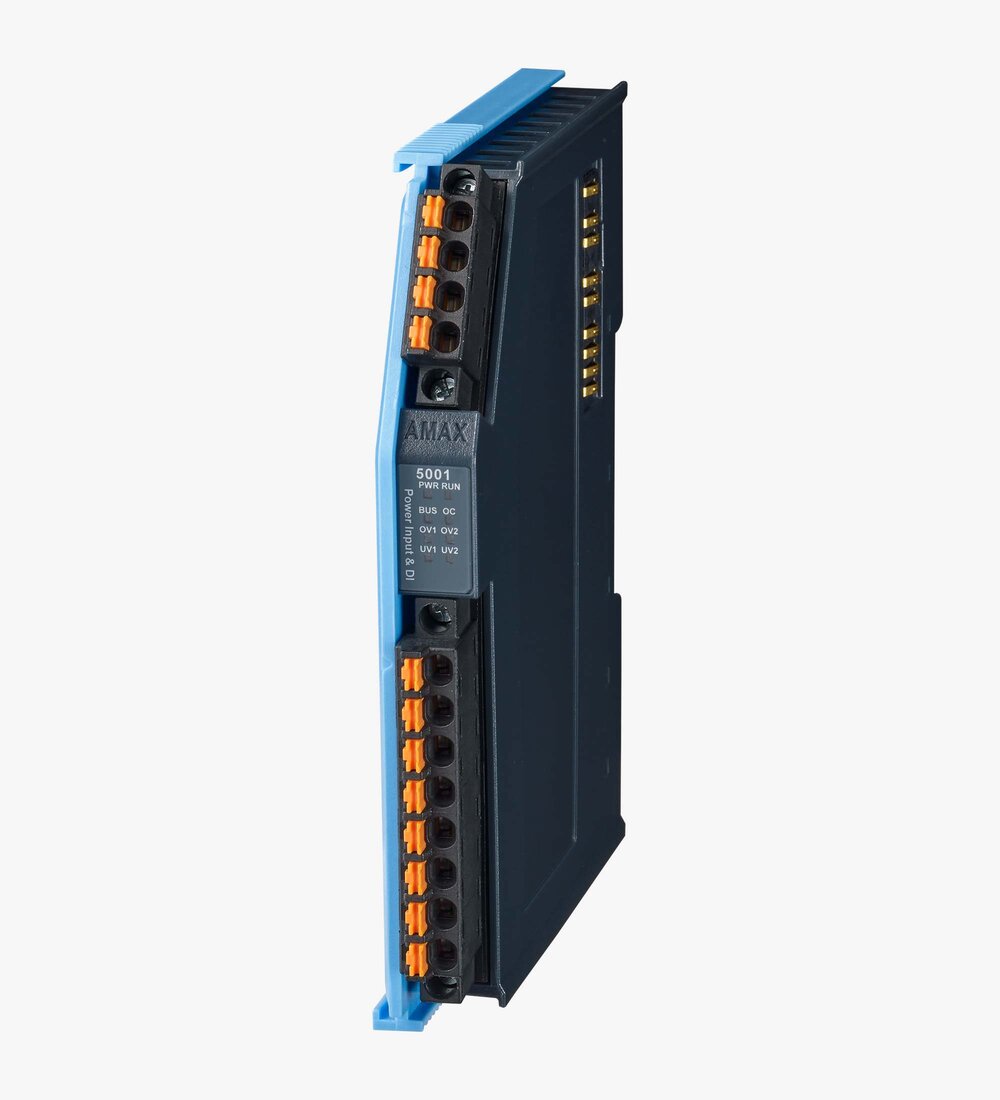

4-ch DI EtherCAT Slice IO Power Input Module
IP20 IO AMAX POWER IN-DI4
Power Input, 4-ch Digital Input EtherCAT Slice IO Module, 24VDC, 4 ms
Function4 Input module, 100Mbps EtherCAT, Dual power Input, Removable push-in terminals, Diagnosis function.

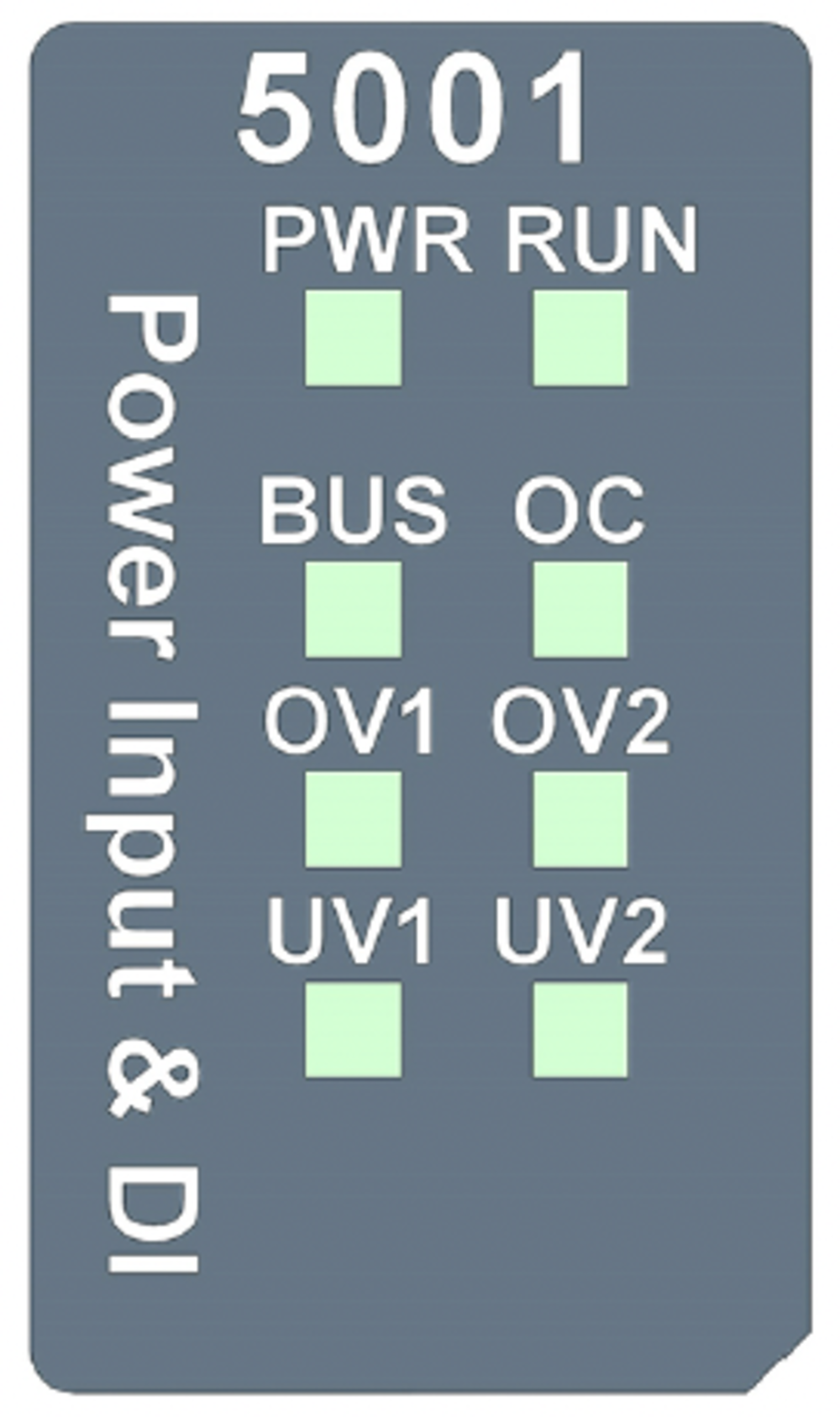

Features- Easy LED diagnostic
- Dual Power Input
- Pluggable Push-In terminal blocks
Additional Information

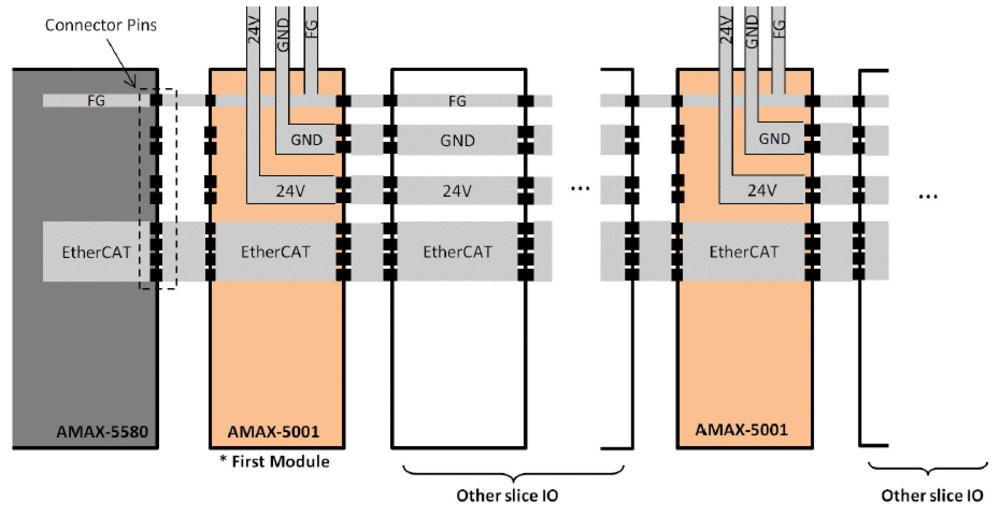

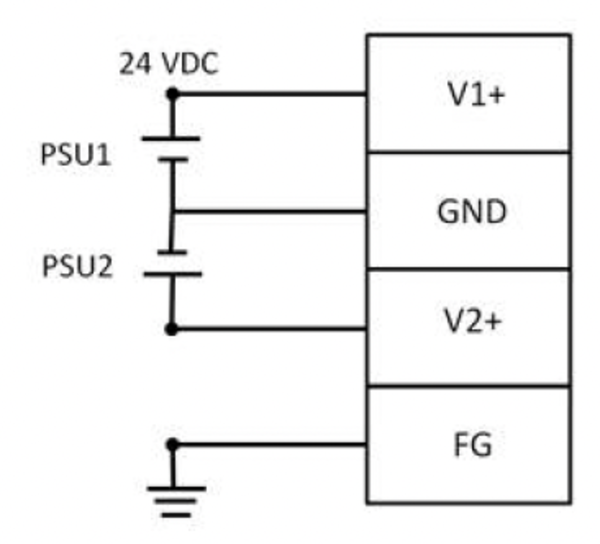

AMAX-5001 is a smart power input module. It supports dual power - external 24VDC power input, and a maximum 2A current to the EtherCAT bus to power the IO modules on the right side. AMAX-5001 has a smart diagnostic function to identify power errors on the external power supply and on the internal bus. Status on the process data is shown on the LED. AMAX-5001 is also equipped with 4-ch digital Input. The AMAX-5580 controller does not provide power to the right side EtherCAT bus, due to power independent purpose, AMAX-5001 must be the first module on the right side to provide independent power to the EtherCAT bus. In configuration with large number of IO modules, it is possible to use another AMAX-5001 to provide the extra 2A power to the EtherCAT bus. It supplies power to the modules following on the right side, and isolates them from the power on the left side.
