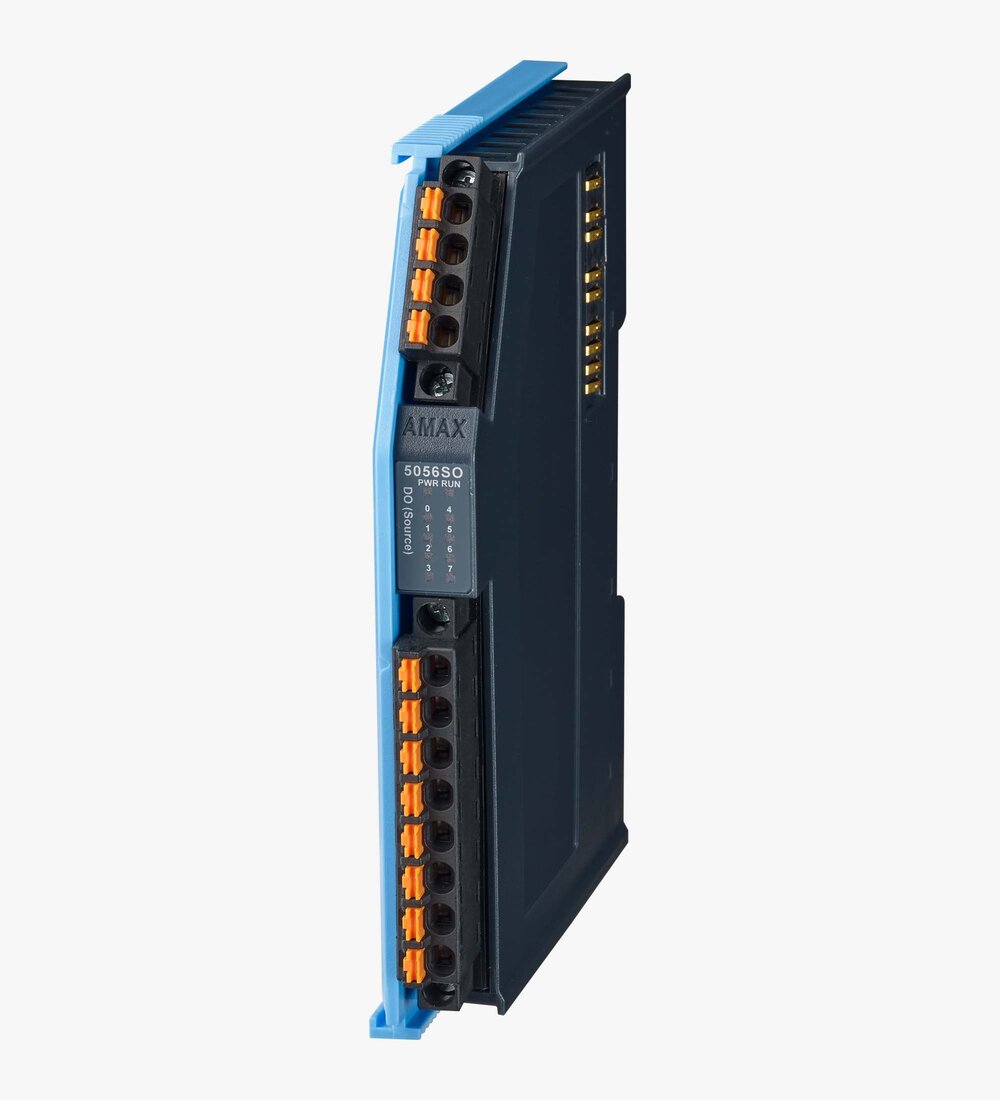

8-Channel Digital Output EtherCAT Slice IO Module (Source Type)

IP20 IO AMAX DO8 PNP

8-Channel Digital Output EtherCAT Slice IO Module, 24VDC, 0.5 A (Source type, PNP, positive switching)

Function

8 channel output (Source Type), 100Mbps EtherCAT, Removable push-in terminals, 24V DC, 0.5 A, PNP

HAVE A QUESTION?

SKU/Order No.: SA-AMAX-5056SO-A

CE Declaration Mark

Additional Information

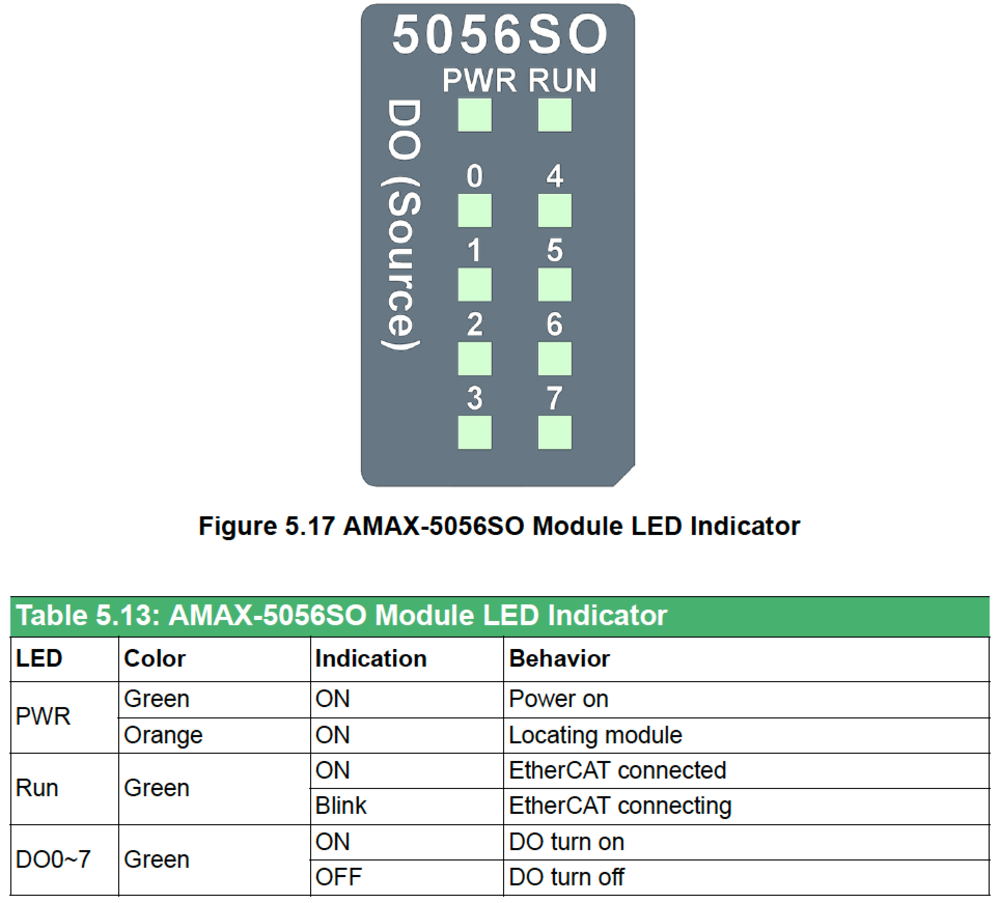

The AMAX-5056SO module features 8 digital output (source) channels. The digital output channels offer and LED to indicate digital status. The module provides 2,000 VDC optical isolation between channels. If any high voltage or current damage the channels, the whole system (other modules, and control unit) won't be affected because it is already isolated.
