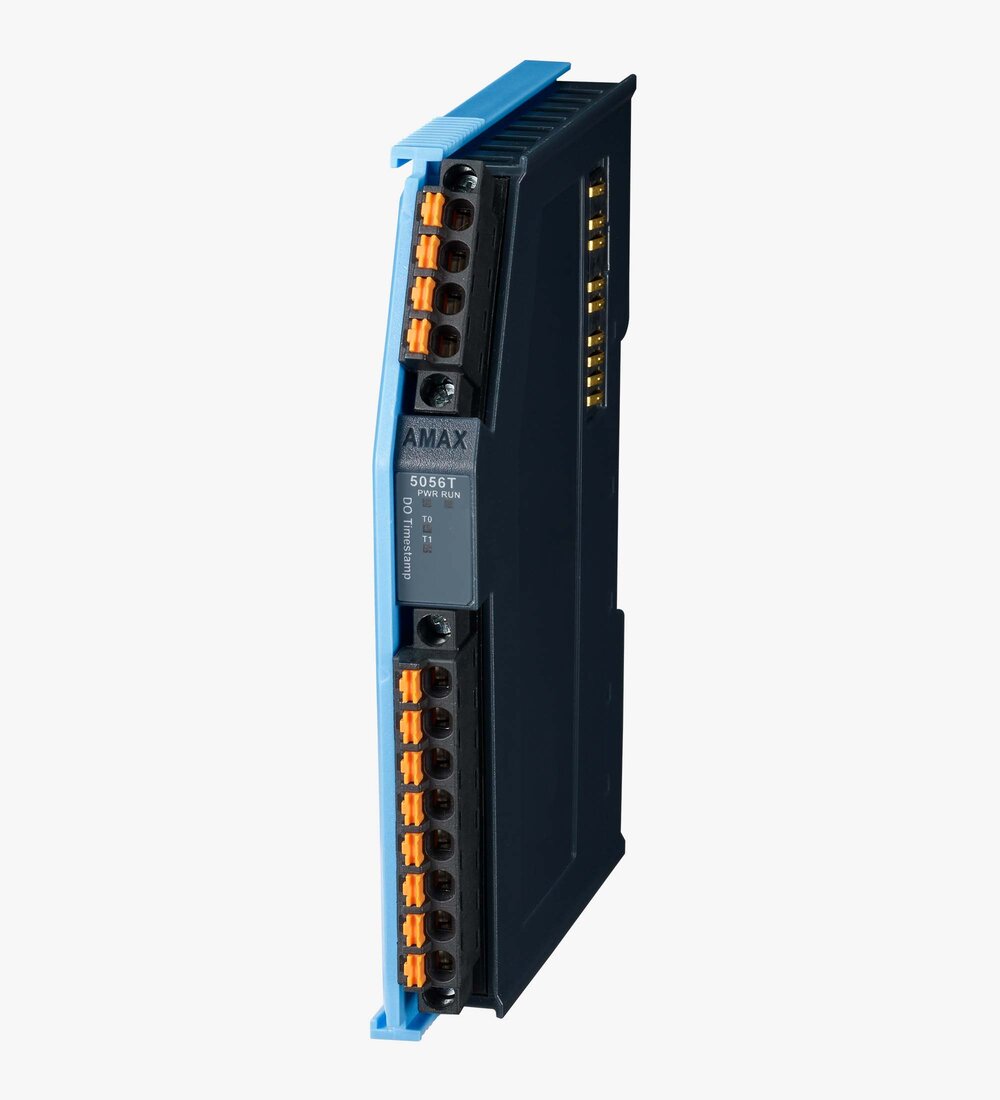

2-Channel Digital Output (with Time Stamp) EtherCAT Slice IO Module

IP20 IO AMAX DO2T

2-Channel Digital Output (with Time Stamp) EtherCAT Slice IO Module, 24 VDC, 0.3 A

Function

2-channel digital output with timestamp, 100Mbps EtherCAT, Removable push-in terminals, 24 VDC, 0.3 A

HAVE A QUESTION?

SKU/Order No.: SA-AMAX-5056T-A

CE Declaration Mark

Additional Information

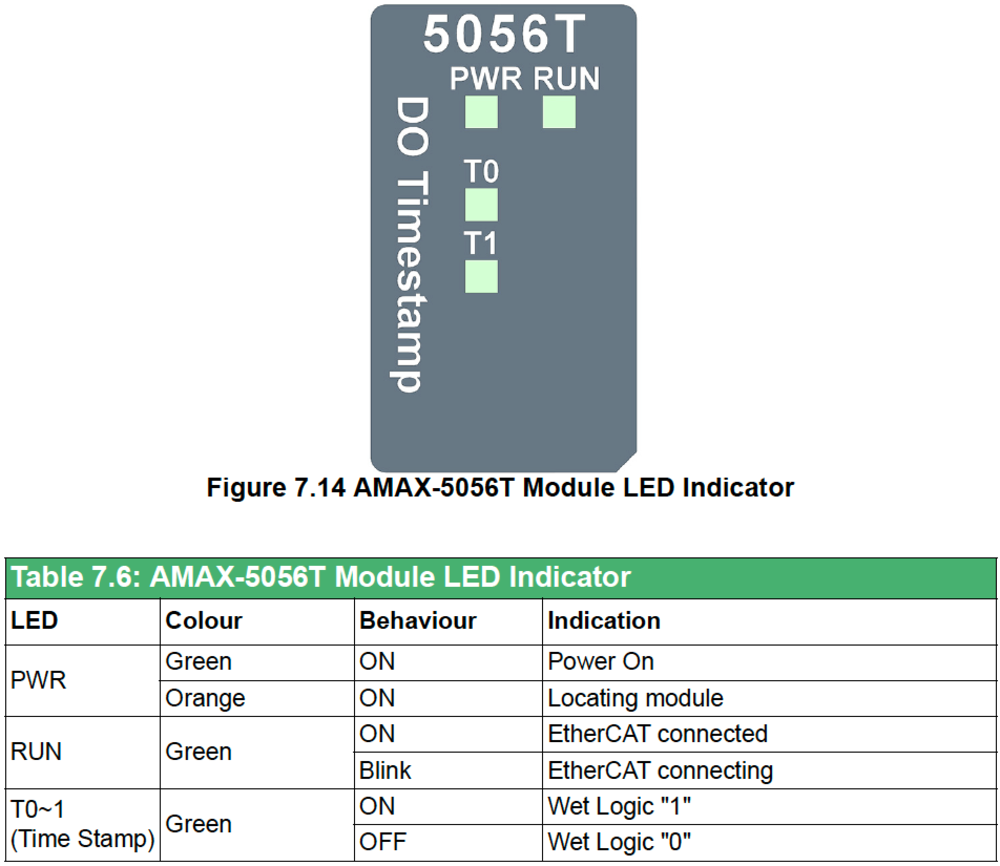

The AMAX-5056T is a 2-ch timestamp digital output module. The timestamp enables a precise DO sync. at a resolution of 1ns. The digital output channels offer LED to indicate digital status. The module provides 2,000 VDC optical isolation between channels. If any high voltage or current damage the channels, the whole system (other modules, and control unit) won't be affected because it is already isolated.
