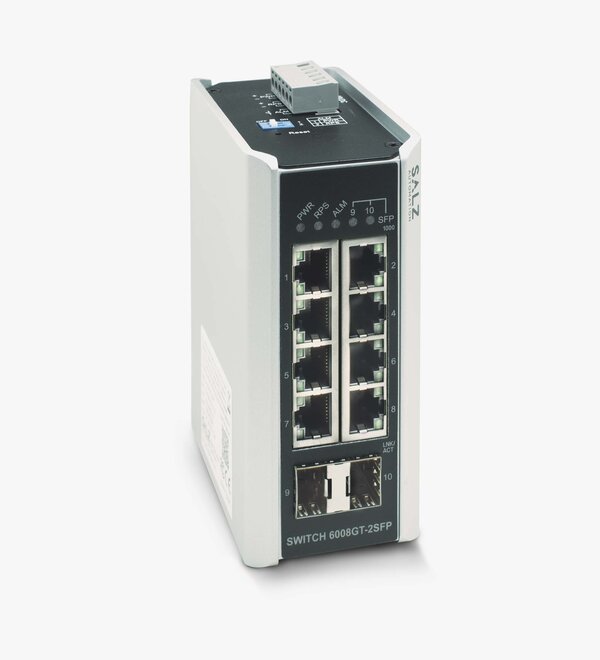

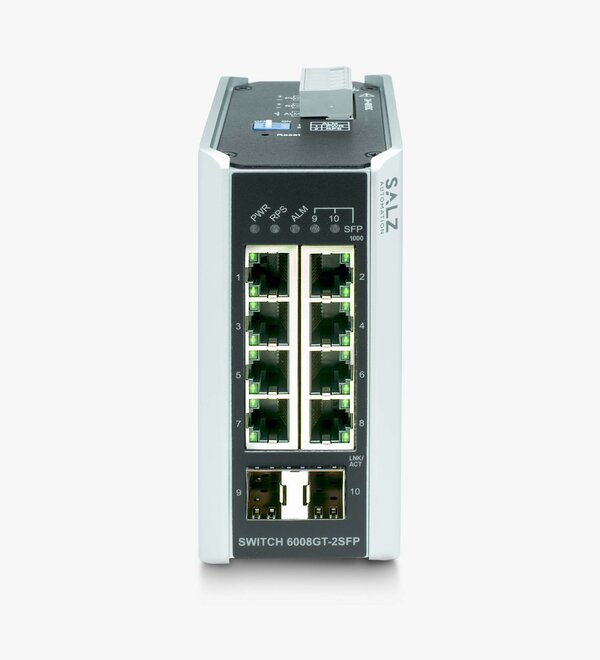

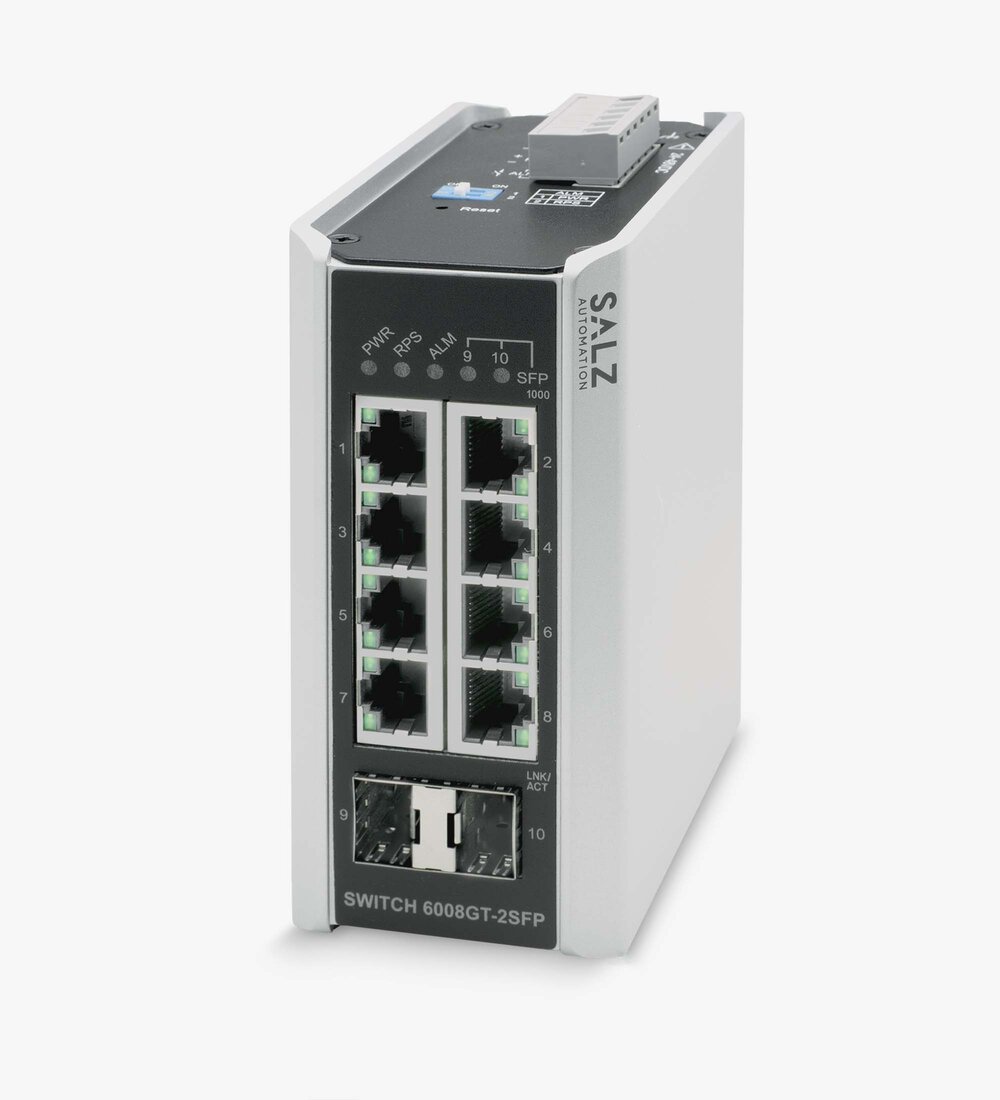

Full managed Industrial Switch 8 x 10/100/1000 RJ45 & 2 x FE/GbE SFP

SWITCH 6008GT-2SFP

The 8-port industrial Gigabit Ethernet switch of SALZ Automation is a full managed industrial Gigabit Ethernet switch equipped with additional 2 x FE/GbE SFP ports.

Function

Full managed Industrial Switch 8 x 10/100/1000 RJ45 & 2 x FE/GbE SFP

Features

Green Ethernet Design
Optimal Bandwidth Utilization for Profinet
Redundant Power Supply for Reliable Networks
Wide Temperature Range

HAVE A QUESTION?

SKU/Order No.: SA-6008-GS-01-00

Additional Information

The 8-port industrial Gigabit Ethernet switch of SALZ Automation is a full managed industrial Gigabit Ethernet switch equipped with additional 2 x FE/GbE SFP ports. The SWITCH 6008GT-2SFP is an environmental friendly product as it incorporates Green Ethernet design, IEEE802.3az - Energy Efficient Ethernet (EEE), to significantly reduce power consumption as well as operation costs. Well protected in a rugged IP30 grade housing, the switch ensures dependable and uninterrupted operations even in harsh environments, making it an ideal networking solution for Industrial applications. Due to QoS it supports Profinet applications and is the best way to safe costs. Equipped with 8 x 10/100/1000BASE-T & 2 x FE/GbE SFP ports, the SWITCH 6008GT-2SFP supports both Gigabit and Fast Ethernet options with Auto MDI/MDIX and Auto-negotiation to offer greater flexibility in choosing the type of connectivity you need. In addition to high-speed data transmissions, the switch supports 10K jumbo frame to increase throughput and QoS on ports-1&2 to ensure delivery of critical data. Redundant power supply with wide-range input power, built-in relay alarm for instant notification of power and port failure, DIN-Rail mounting and many more features of the SWITCH 6008GT-2SFP fulfill the special needs of Industrial Ethernet networks.

IEEE Standards

Interface

Switch Features

Input Data

Output Data

Mechanical Data

Ambient Condition

Dimensions

Standards and Regulations

Commercial Data

IEEE Standards back to top

IEEE 802.3	10Base-T
IEEE 802.3U	100Base-TX
IEEE 802.3AB	1000Base-T
IEEE 802.3Z	1000BASE-SX/LX
IEEE 802.3	Nway Auto-negotiation
IEEE 802.3X	Flow Control
IEEE 802.1AB	LLDP
IEEE 802.3AZ	Energy Efficient Ethernet (EEE)
IEEE 802.1D	STP
IEEE 802.1w	RSTP
IEEE 802.1P	Class of Service
IEEE 802.1Q	VLAN Tagging
IEEE 802.1x	Port Authentication
IEEE 802.3ad	Link Aggregation
IEEE 802.1AD	QinQ

Interface back to top

Ports (RJ45)	8 x 10/100/1000Base-T
Ports (SFP)	2 x 100FX/Gigabit SFP
DIP Switch	Primary, Redundant Power and Drop Alarm Setting
LED Panel	PWR, RPS, ALM, SFP, 1000, LNK/ACT

Switch Features back to top

Jumbo Frame Size	10 k
MAC Table size	8 k
L2 Forwarding Rate	14.8 Mpps
Throughput	14,880 pps to 10 Mbps ports; 148,800 pps to 100 Mbps ports; 1,488,000 pps to 1000 Mbps ports
Switch Fabric	20 Gbps
Management Functionality	CLI, Telnet, SSH, HTTP, HTTPs, SNMP v1/v2c, SNMP v3, SNMP Trap, Management VLAN (MVLAN), Firmware upgradable, Configuration Backup/Restore, Syslog, SNTP, LLDP, DHCP Client/Relay/Option82, Port Mirroring, Server (service) control, Port Utilization, Alarm Information, ModbusTCP, Power Down trap, Topology Map,Port Configuration(enable/disable, speed/duplex), ONVIF, Port Statistic, System reboot from remote side, User Account with authority
Reliability	STP/RSTP, ERPS v1/v2, Dual Homing, LACP, Static Trunk, Code Redundancy
VLAN	IEEE 802.1Q, Port-based VLAN, MAC-based VLAN, Management VLAN, QinQ
Traffic Control	802.1p QoS, Flow Control, Traffic Monitor (Abnormal Traffic Detection), Storm Control, Port Isolation, Loop Detection, Storm alarm threshold per port, IGMP snooping (v1/v2/v3) , IGMP Throttling
Security	ACL, SSH, HTTPs, SNMPv3, Port-based 802.1x, Port Security, MAC Search, Refusal MAC, MAC Anti-spoofing, Static MAC, DHCP Snooping, DHCP Sever Screening, BPDU Guard/Filter, Root Guard, Managed Host, IP Source Guard

Input Data back to top

Input Voltage Range DC	12 ... 60 V
Input Current (typ.)	1,5 A (12 V)
Power Consumption (max.)	18 W

Output Data back to top

Contact Rating DC (resistive load)

Alarm relay; 24 V, 1 A

Mechanical Data back to top

Housing	Metal
Mounting DIN Rail according EN 60715	TH35
Weight (typ.)	840 g

Ambient Condition back to top

Ambient Temperature (operating)	-40 °C ... 75 °C (UL: -40 °C ... 70 °C)
Ambient Temperature (storage/transport)	-40 °C ... 85 °C
Operating Humidity (non-condensing)	5 ... 95 % RH
Storage Humidity (non-condensing)	5 ... 95 % RH

Dimensions back to top

Width (mm)	55 mm
Depth (mm)	119.9 mm
Height (mm)	161.5 mm

Standards and Regulations back to top

Electromagnetic Interference (EMI)	FCC Part 15 Subpart B class A; EN 55011 class A; EN 55032 class B; EN 61000-6-4
Environmental Management Systems (EMS)	EN 55024; EN 61000-6-2; EN 61000-4-2 ( ESD ) : Level 3; EN 61000-4-3 ( RS ) : Level 3; EN 61000-4-4 ( Burst ) : Level 3; EN 61000-4-5 ( Surge ) : Level 3; EN 61000-4-6 (CS): Level 3; IEC61000-4-8(PFMF); EN 61000-4-11
Shock Test	IEC 60068-2-27
Free-fall Test	IEC 60068-2-32
Vibration	IEC 60068-2-6
Safety Standard	UL61010
RoHs	Yes

Commercial Data back to top

Customs Tariff Number	85176200
GTIN	4262552160267

8 x Gbit RJ45 Ports

8 x 10/100/1000 BASE-T RJ45 Ports

2 x Gbit Ethernet SFP Ports

DIP Switch for Easy Configuration

DIP switch for switching the external alarm or redundant power supply on and off, without software.

Green Ethernet Design

IEEE802.3az Energy Efficient Ethernet (EEE) compliant Green Ethernet technology. This eco-friendly design allows the switch to automatically adjust power consumption and conserve energy during the periods of low data activity.

Industrial Grade EMI/EMS

The Switch need to be robust enough to handle harsh field site conditions, which can include high-voltage transients, severe shock and vibration, and extremely high temperatures.

IP30 Metal Housing Protection

Rugged IP30 grade aluminum housing to withstand highest vibration, heavy shocks, humidity and extreme temperatures.

Easy Installation “plug-n-play”

Featuring Auto-MDI/MDIX and Auto-negotiation on all ports, the Switch automatically detects and configures the best mode of operation over a link. This eliminates the need of user setup or configuration procedure and simplifies installation.

Optimal Bandwidth Utilization for Profinet

The switch recognizes frames for Profinet and ensures prioritized forwarding with least delay possible. Thereby, the switch enhances bandwidth utilization to ensure the data gets delivered efficiently to mission-critical applications, even during burst of high traffic.

Redundant Power Supply for Reliable Networks

If the primary power supply fails, the switch is immediately supplied with a second, redundant power supply, ensuring the continuous operation of network services for critical applications in industrial environments.
