POWER DESKTOP 12-4 S

Additional Information

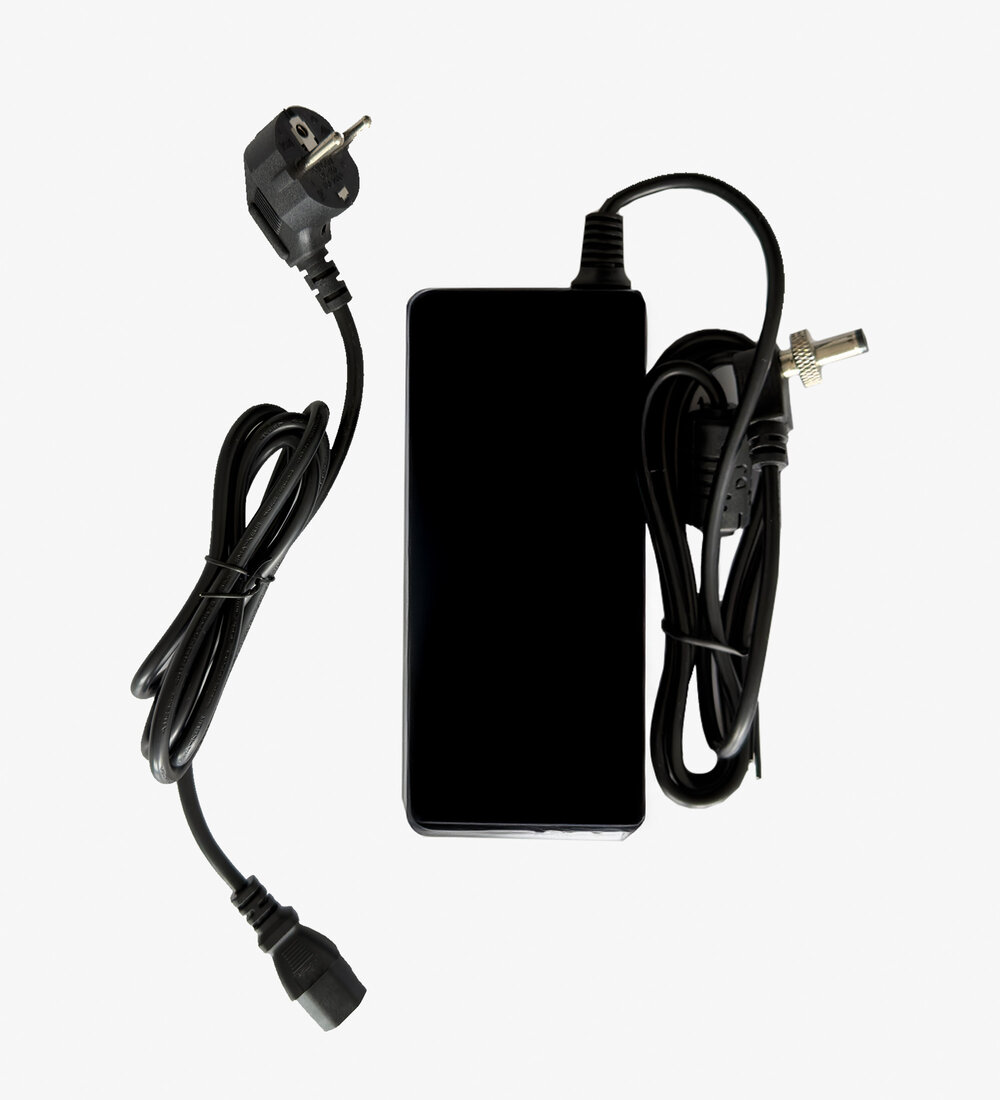

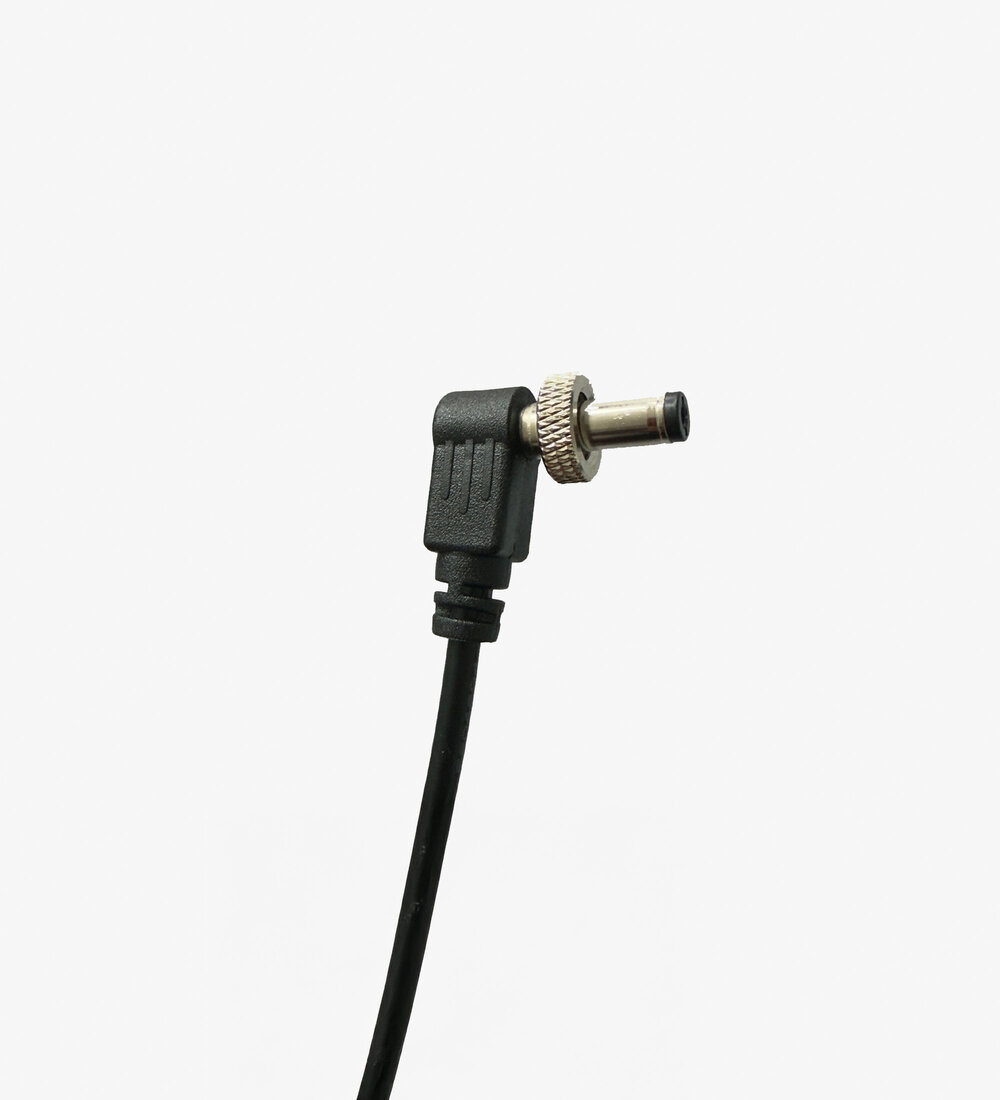

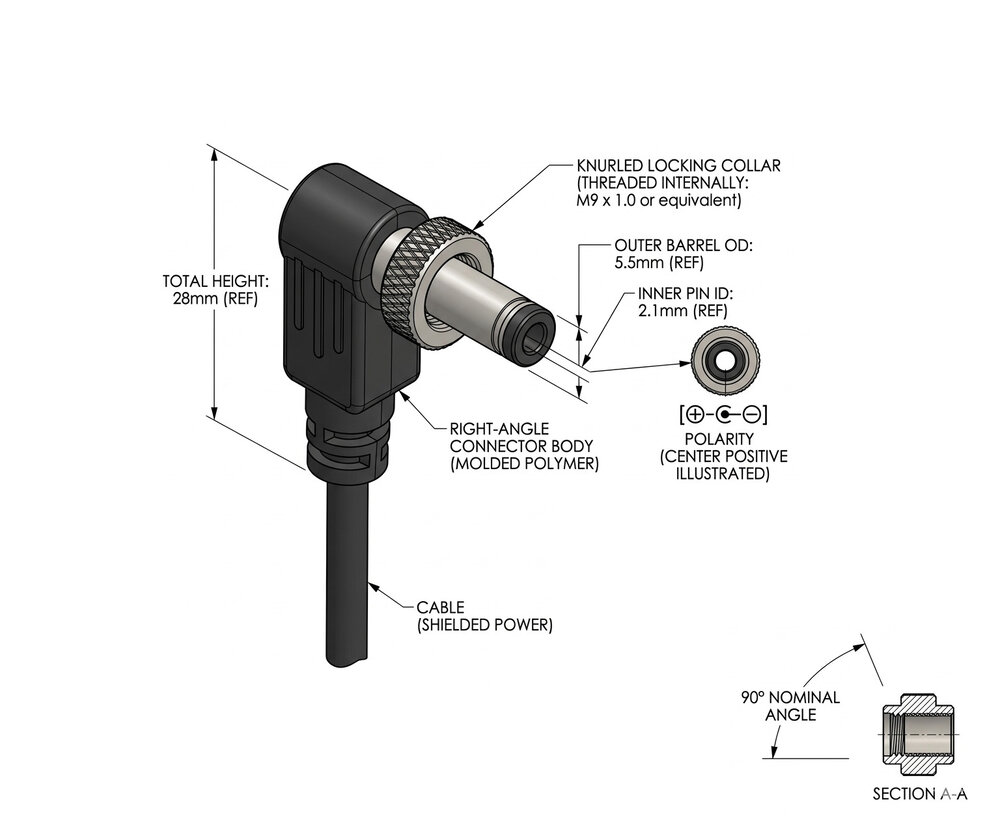

Designed for industrial automation applications, this external power supply converts standard mains AC power (100-240V, 50Hz, up to 1.5A) to stable 12V DC at 4A (48W total), using a robust plastic enclosure with Schuko AC plug compatibility via IEC 60320 C14 inlet. The screwable DC barrel plug that locks securely to prevent disconnections from vibrations or cable strain and ensures secure low-voltage delivery to devices such as industrial panel PCs or network switches, supporting reliable operation in control cabinets or workstations. Built for durability, it handles variable global voltages without switches, making it versatile for a variety of setups.

Input Data

Output Data

Protection Circuit

Ambient Condition

Commercial Data

Dimensions

Mechanical Data

Standards and Regulations

Input Data back to top

Input Voltage Range AC	100-240V AC
Input Current (typ.)	1.5A (max.)

Output Data back to top

Output Voltage	12V DC
Output Current	4A
Power Output	48W

Protection Circuit back to top

Overcurrent Protection	Yes
DC OK Signalling	Yes
Overvoltage protection	Yes
Short Circuit Protection	Yes

Ambient Condition back to top

Operating Altitude (max. above sea level)	3000 m
Operating Humidity (non-condensing)	10% to 90% RH
Storage Humidity (non-condensing)	5% to 95% RH
Ambient Temperature (operating)	0°C to +50°C
Ambient Temperature (storage/transport)	-20°C to +70°C

Commercial Data back to top

GTIN
Customs Tariff Number	85044090

Dimensions back to top

Depth (mm)	34
Height (mm)	53
Width (mm)	135

Mechanical Data back to top

Housing	Plastic (Black)
Mounting method	External AC/DC adapter
Weight (typ.)	385 g
Wire Strip Length	1800mm (AC Input to Adapter) + 1150mm (Adapter to DC Output)

Standards and Regulations back to top

In Compliance With

CE, FCC, CCC

Datasheet_POWER DESKTOP 12-4 S Download
