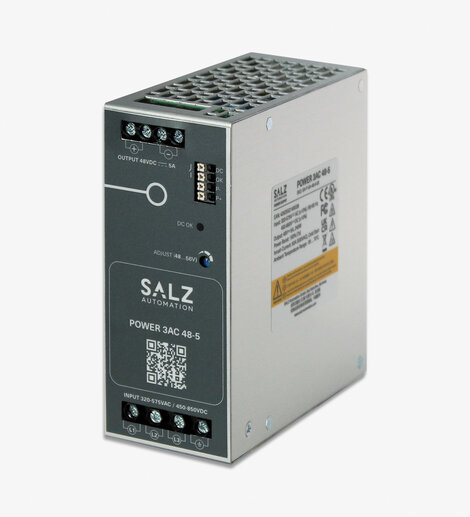

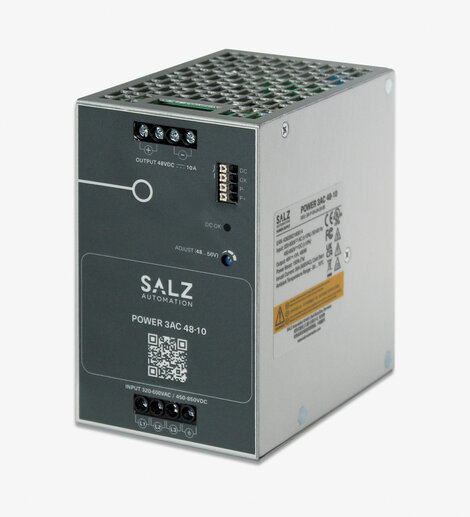

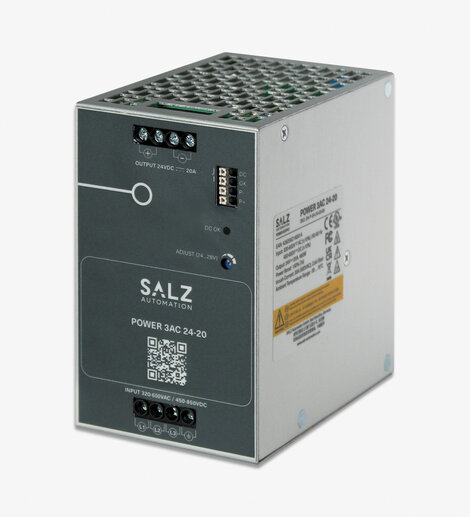

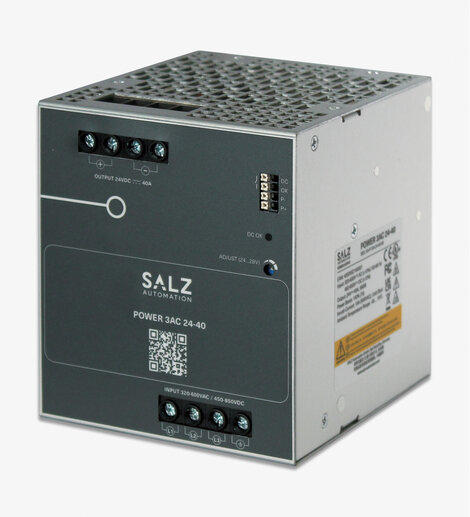

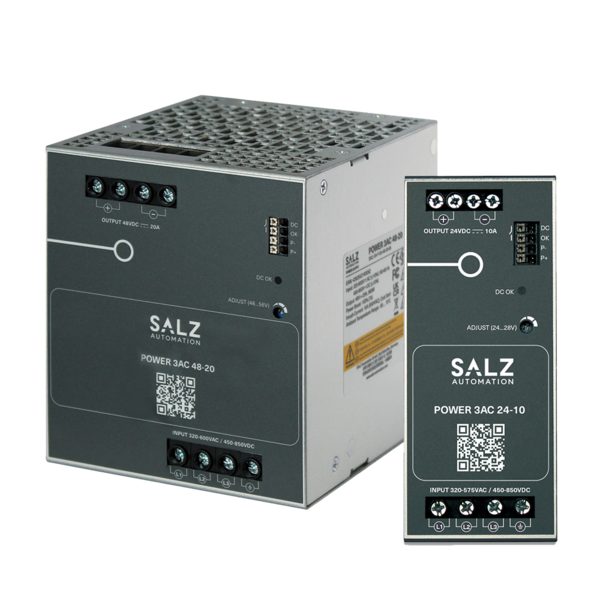

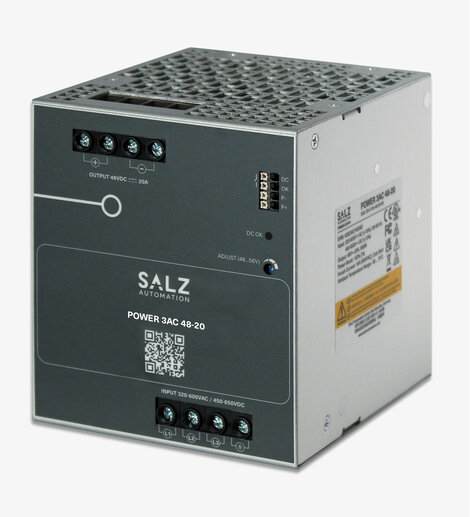

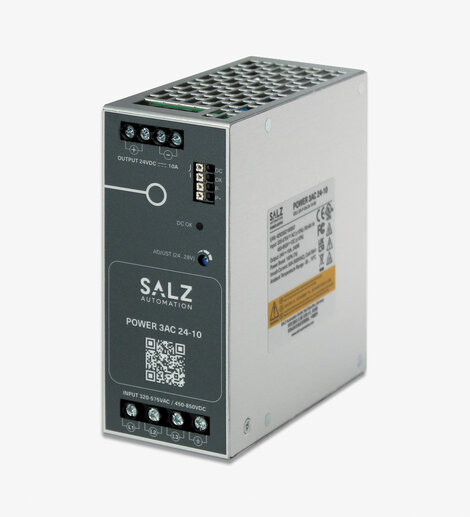

3 Phase Power Supply Modules

High-efficiency 3-phase DIN rail power supplies engineered for demanding industrial environments, from control cabinets to semiconductor manufacturing and renewable energy applications.

WHY 3-PHASE??

Most industrial facilities run on 3-phase power, and the POWER 3AC series is built to take advantage of that directly. Compared to single-phase power supplies, 3-phase input draws less current per wire, produces smoother DC output, and requires no neutral connection. The result is simpler wiring, less heat, and a more stable power supply for your machines and control systems.

Key features of our 3-Phase Power Supplies:

• High efficiency with ultra-slim DIN rail form factor

• Wide input range 320 ... 600 (575) VAC / 450 ... 850 VDC, global three-phase grid compatibility

• Power Boost 150 % for 7 s, handles high inrush and transient loads

• Parallel operation up to 4 units, up to 960 W combined output with active current sharing

• Adjustable output voltage via potentiometer, 24-28 V / 48-56 V

• Full protection: over-voltage, over-current, short-circuit, over-temperature with auto-recovery

• Built-in DC OK relay contact for system diagnostics and monitoring

• Operating range -30 to +70 °C (start-up at -40 °C), conformal coating standard

• 20 ms hold-up time ensures stable DC power during mains fluctuations
