Linux based Controller with SALZ Software PURE
CONTROLLER AMAX 80-C PURE
Intel® Celeron® Control IPC, Linux based, Pre-Installed SALZ Software PURE, with EtherCAT I/O modules and PCIe modules

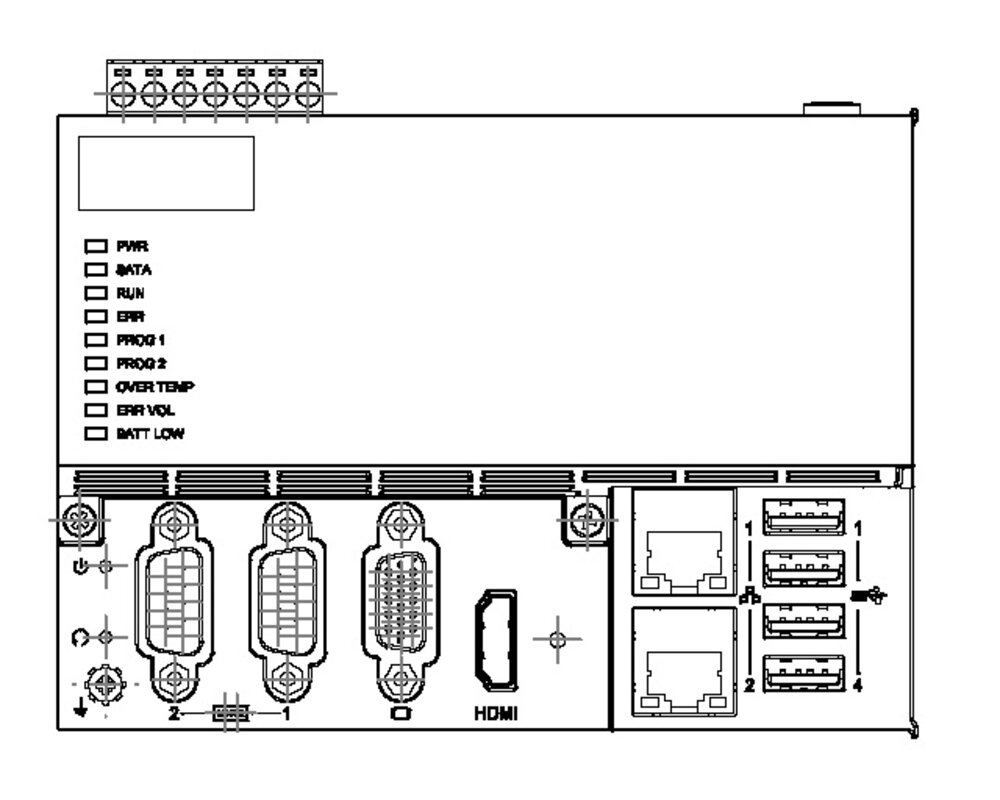

功能Intel® Celeron processor, SALZ Software PURE/FLECS, 2GHz Skylake Dual Core, 2MB L2 with 4GB DDR4 memory, 128Gb SSD, 2xGbE, 4xUSB 3.0, 2xRS-232 /422/485, 1xVGA, 1xHDMI, Wireless mPCIe module
特点- SALZ Software PURE
- Multi-Runtime support
- 管理已安装应用程序之间的数据交换
- Monitoring of Health State possible at any time
- Integrated open marketplace
其他信息

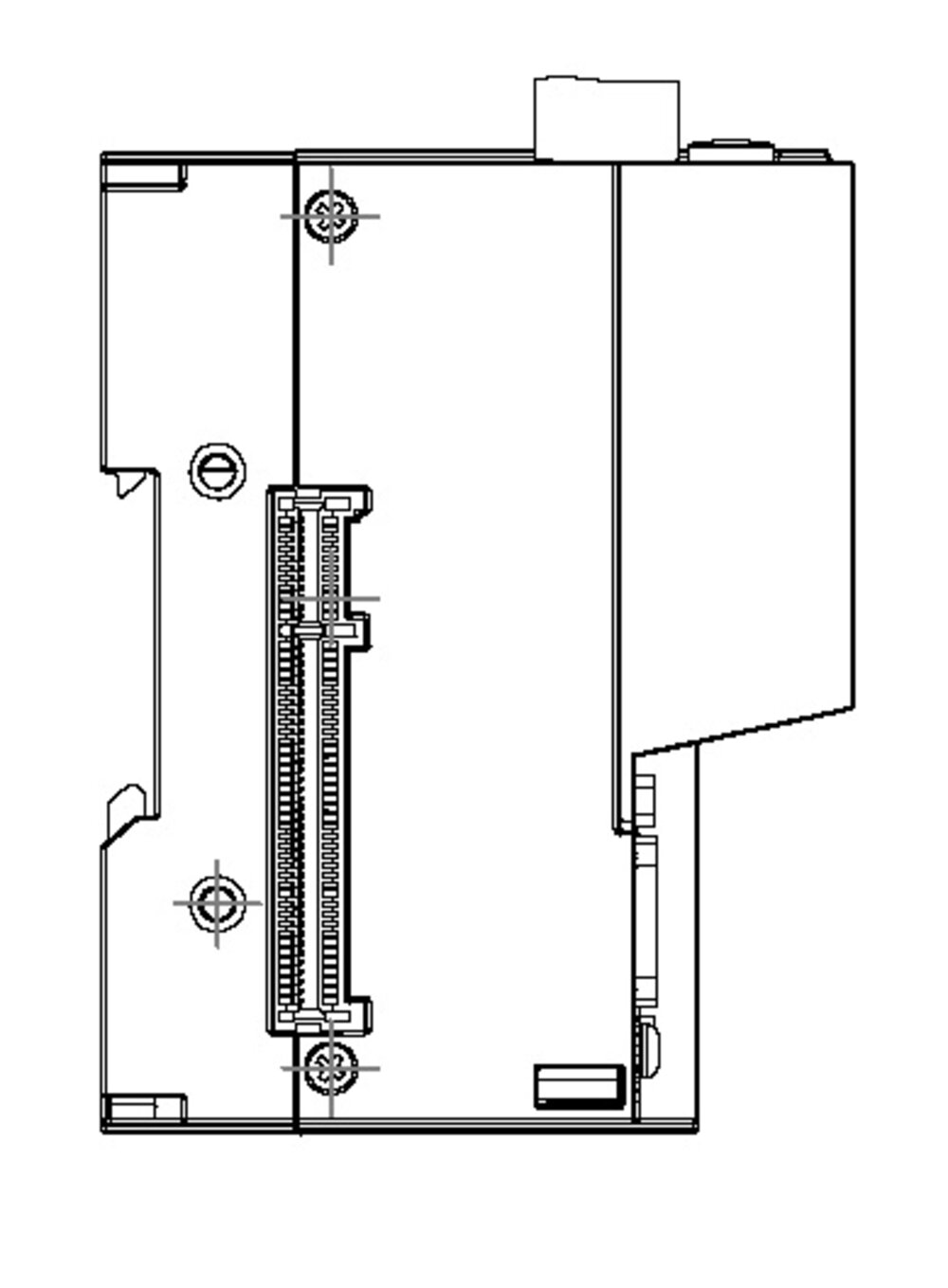

The AMAX-80-C controller by SALZ Automation is a compact yet powerful Linux real-time controller, enhanced by FLECS technology. It features an Intel® Celeron 3955U 2.0 GHz Skylake Dual Core processor, offering robust computing capabilities. The controller includes a DATA EXCHANGE LAYER (D.E.L.), essential for managing data exchange between installed applications. It supports EtherCAT I/O modules from the AMAX-5000 series for seamless integration with various I/O devices and has an integrated PCIe interface on the left side, allowing easy addition of communication modules such as NVRAM or WiFi. The AMAX-80-C, with its D.E.L., is an ideal open control platform for tackling future challenges. Pre-installed with SALZ Software PURE, the AMAX-80-C provides a user-friendly graphical user interface (GUI) and operates independently of internet connectivity. Applications within PURE are deployed as Docker containers, ensuring flexibility and efficient resource utilization. Software and applications for the AMAX-80-C can be downloaded from the SALZ Automation website in the "Resources" section, available post-registration. Pure can be upgraded to FLECS which has an inbuilt FLECS App Store for downloading applications on the controller. The AMAX-80 and PURE deliver a robust solution for data acquisition, transmission, control, and analysis in automation projects.
Applications/Software for the controller are available to download on the website. To access that:
- Register/Login on the SALZ Automation website.
- After the account is verified, applications/software are available in the 'Downloads' section.
SALZ Software PURE
SALZ Software PURE, which comes pre-installed on SALZ Controllers, provides an intuitive GUI and operates independently of internet connectivity. The D.E.L. within PURE efficiently manages data exchange through Docker containerized applications, enhancing flexibility and resource utilization.
Multi-Runtime support
The system supports several runtime systems simultaneously, for example two Codesys programs together with the SALut system. This makes it possible to control several machines with one control hardware.
管理已安装应用程序之间的数据交换
D.E.L. 技术采用共享内存和 OPC-UA 领域的机制。由此产生的两个数据池始终保持同步。这确保了实时和非实时应用程序之间的数据交换。为了确保只交换应该交换的数据，D.E.L. 还包含由用户操作的用户和权限管理。
Monitoring of Health State possible at any time
Monitoring of Health State possible at any time
Integrated open marketplace
Integrated marketplace to let user install the applications. This marketplace has easy to install and update application with a web interface. There are various specifically designed software for the hardware systems. These softwares can let anyone manage SCADA, PLC or HMI display.
Longer lifetime with passive cooling
Our hardware is designed to be cooled passive without any fan. This leads to a longer lifetime.
Download applications/software from website
Applications/Software for the controller are available to download on the website. To access that:
- Register/Login on the SALZ Automation website.
- After the account is verified, applications/software are available in the 'Resources' section.
